Southwest Solutions Group

Pallet Rack Steel Shelving

Name: Pallet Rack Steel Shelving
Rating: 4.4 (39 reviews)

4.4(39 reviews)

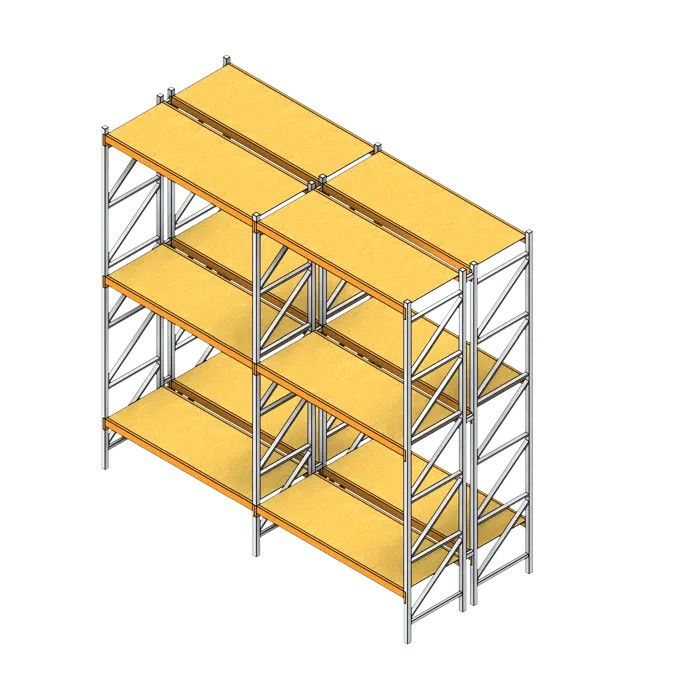

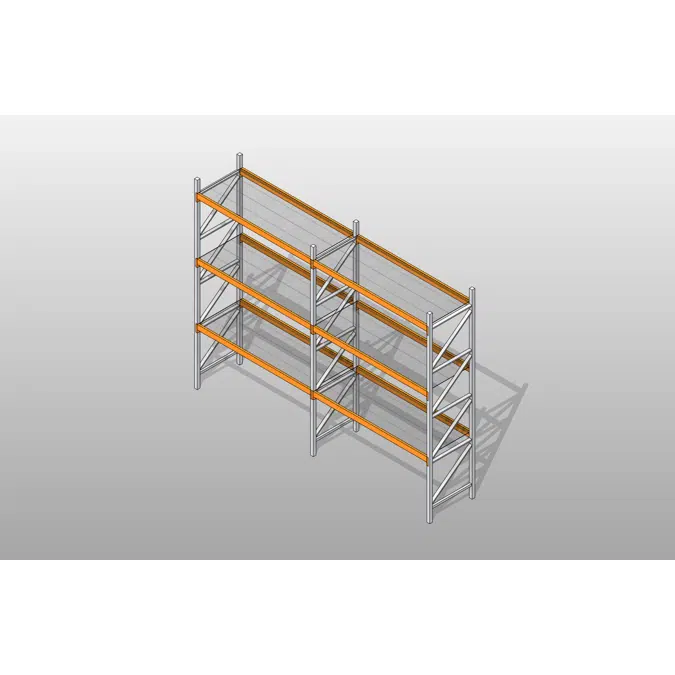

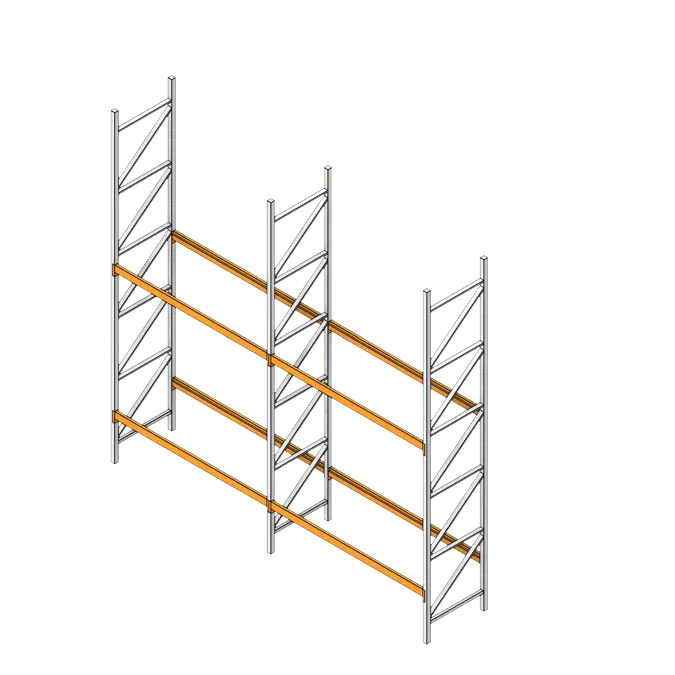

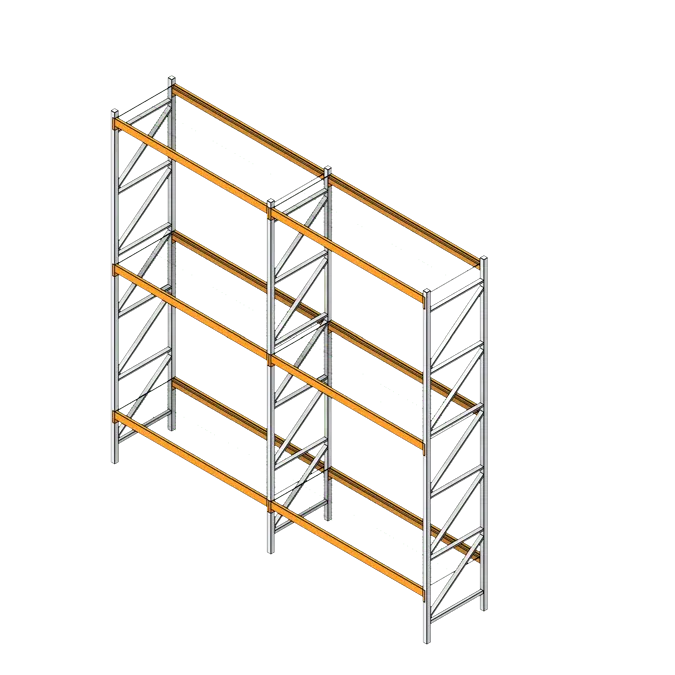

Pallet Rack

This pallet rack is the basis of most warehouse storage systems. For light or heavy duty storage.

Standard sizes
Widths: 48", 60", 72", 84", 96", 108", 120", 132", 144", 288", 300"
Depths: 24", 36", 42", 48"
Heights: 96", 120", 144", 168", 192", 240"

Rigid connections
40-foot continuous length capability
Wide variety of column sizes
Closed tube or open section columns

The Southwest Solutions Group pallet rack line is designed to be highly flexible and adaptable with every Revit model built to reflect its real world counterpart.Standard Selective Pallet Rack is the basis for most warehouse storage systems. These can provide all varieties from light to heavy-duty, open to closed tubes, and bolted to automatic locking connections. Computerized mills ensure that tolerances on all roll-formed beams and uprights are precise and install with ease.

Specification

Uprights - Interchangeable
- Non-bolted connection
- Interchangeable tear drop upright columns will accept most industry standard "interchangeable" beams
- Manufactured with or without side holes
- Available in open or closed tube section
Uprights - T-Bolt
- Bolted connection
- T-Bolt upright columns front-end-only connection allows for easy installation because you never need to reach into the column
- Extra rigid connection
- Available in open or closed tube sections
Sustainability
- Up to 50% pre and post-consumer recycled content
- Low or non-emissive materials and finishes

Technical specification

Unique ref.SSG_Shelving_Pallet_Rack_CRS
Product familyPublic Safety
Product groupWeapon Storage, Lockers, Workstations, Mobile Shelving and Detention
TypeObject (single object)
Date of publishing2021-01-29
Edition number1

Links

Product urlhttps://fetchbim.com/product/1024
Technical descriptionhttps://app.fetchbim.com/Family/6e4149b5-c2d1-47cc-9de5-b73052748130/File/PDF-SpecManual

Material mainPowder coated steel
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryFurniture - Shelving & Storage
IFC classificationFurniture
CSI MasterFormat 2014 Code10 56 29.16
CSI MasterFormat 2014 TitlePallet Storage Racks
OmniClass Number23-21 11 11 15
OmniClass TitleCommercial Storage Racking
CSI UniFormat II CodeE2020
CSI UniFormat II TitleMovable Furnishings
