Timber Curtain Wall - TimberLITE 2.0
Timber Curtain Wall - TimberLITE 2.0

    Timber Curtain Wall - TimberLITE 2.0

    Make a dramatic statement to a home or building using our custom-designed TimberLITE 2.0 system

    with all-wood interiors and structural integrity. These unique wall systems feature a thick veneer over

    LVL beams allowing for narrow sight lines, creating walls of glass that can be designed into your

    residential or commercial projects. The TimberLITE 2.0 wall system is fabricated and prepped at the

    factory to allow for easier installation in the field. Enjoy maximum unobstructed views or

    compliment your design with our operable doors and windows for ventilation and functionality.

    Specification
    • Product Parameters:
      • 2-1/8” LVL beams up to 20’
      • C & Better Grade ¼” VG doug fir veneer
      • CoreGuard Plus™ treated beams
      • 4-1/4” min. horizontal mullions
      • 4-3/4” min. vertical mullions (punched openings)

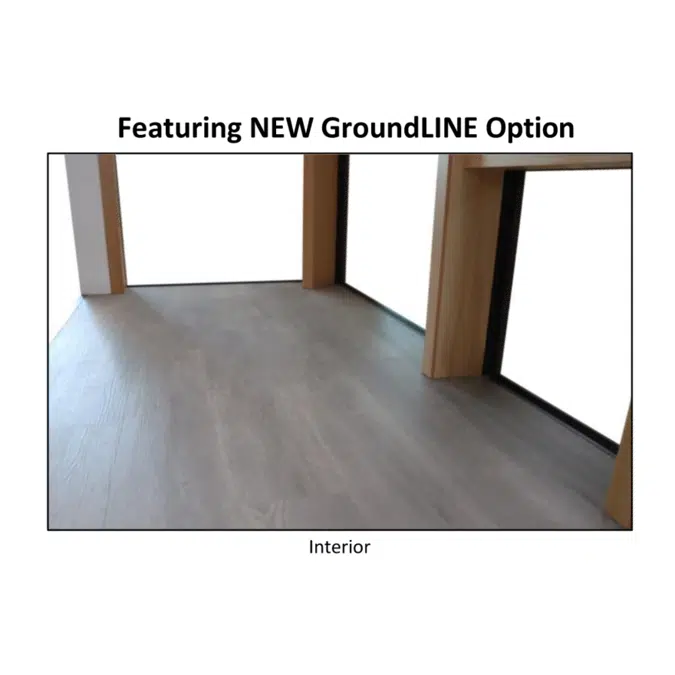

      • 5-1/2” min. vertical mullions (GroundLINE)
      • Glass 1” – 2” OA @ 1/4" increments

      Product Parameters:
      • 2-1/8” LVL beams up to 20’
      • C & Better Grade ¼” VG doug fir veneer
      • CoreGuard Plus™ treated beams
      • 4-1/4” min. horizontal mullions
      • 4-3/4” min. vertical mullions (punched openings)
      • 5-1/2” min. vertical mullions (GroundLINE)
      • Glass 1” – 2” OA @ 1/4" increments

    Technical specification
    • Unique ref.timber-curtain-wall-timberlite-20
    • Product familyWindows
    • Product groupWindows
    • TypeBuilding Material
    • Date of publishing2023-12-07
    • Edition number1
    Related
    • Material mainWood
    • Material secondaryAluminium
    Classification
    • BIMobject CategoryBuilding Materials - Glass & Glazing
