Price Industries

SDG - Spiral Duct Grilles

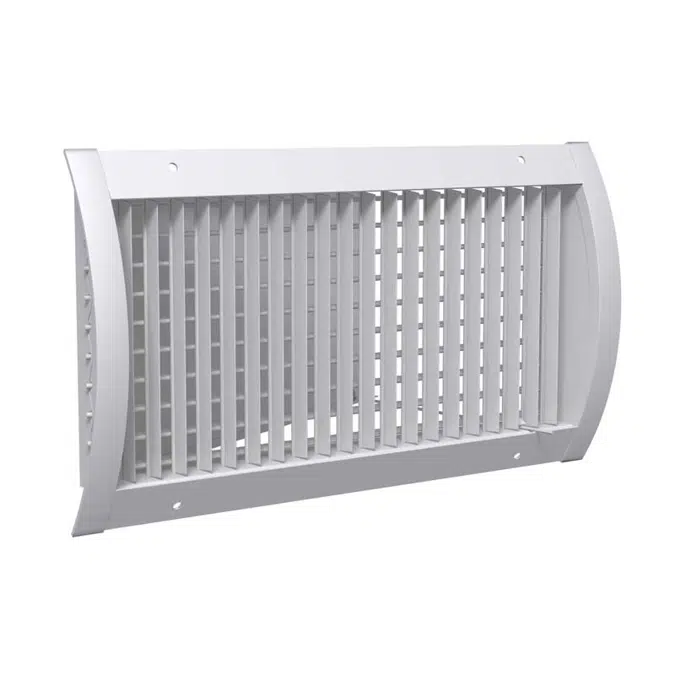

Spiral Duct Grilles (SDG) are designed to be mounted on round or spiral ducts without the use of transitions. Available with single or double deflection supply and perforated return options, the SDG is highly versatile.

Typical Applications

The SDG can be used for supply or return applications and is ideal for highly visible, exposed round or spiral duct mounting. With a variety of material finishes available, the SDG can be supplied to match the duct finish, combining architectural appeal with excellent performance characteristics.

Specification

Construction Options
- Application
  - Supply (SDG/SDGE)

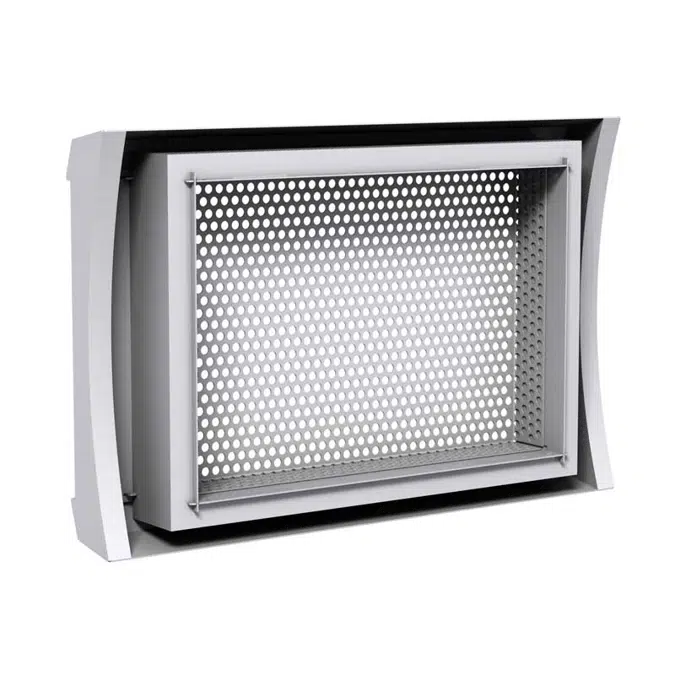

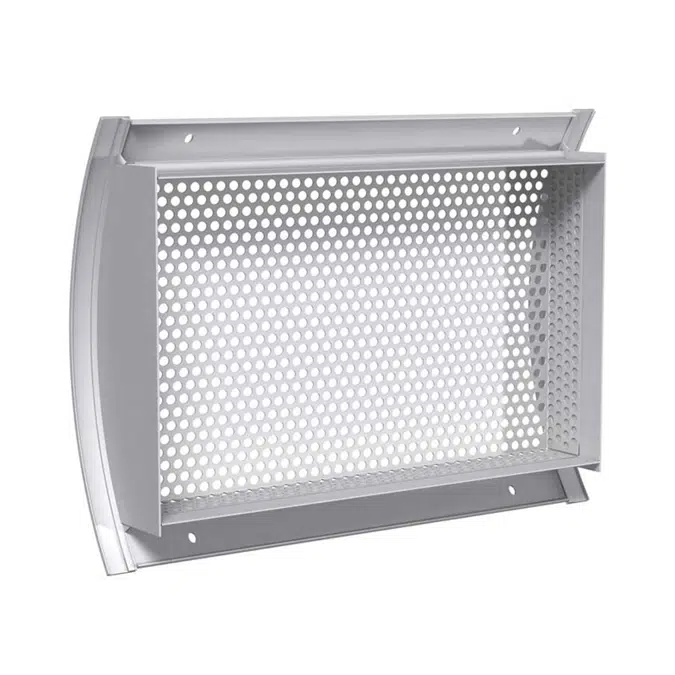

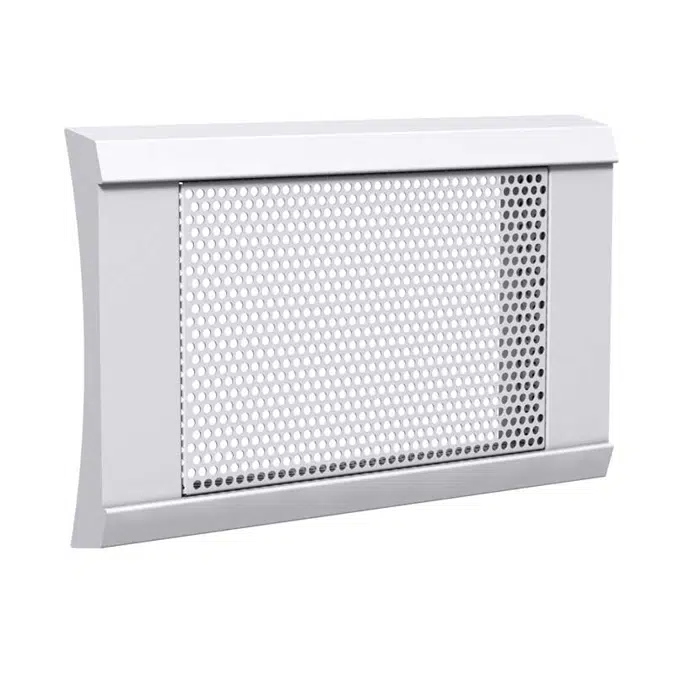

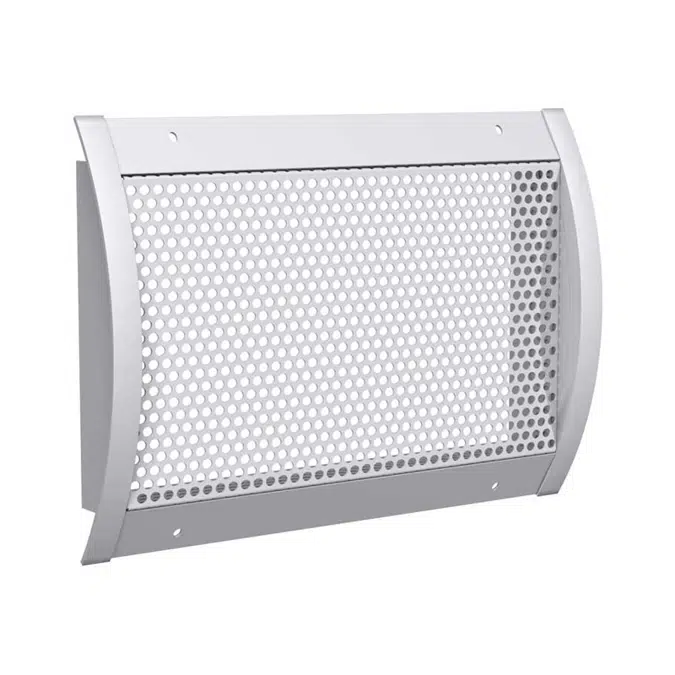

  - Return (SDGR/SDGER)
- Material
  - Steel (SDG/SDGR)
  - Aluminum (SDG)
  - Galvanized (SDG/SDGR)
  - Extruded Aluminum (SDGE/SDGER)
- Options

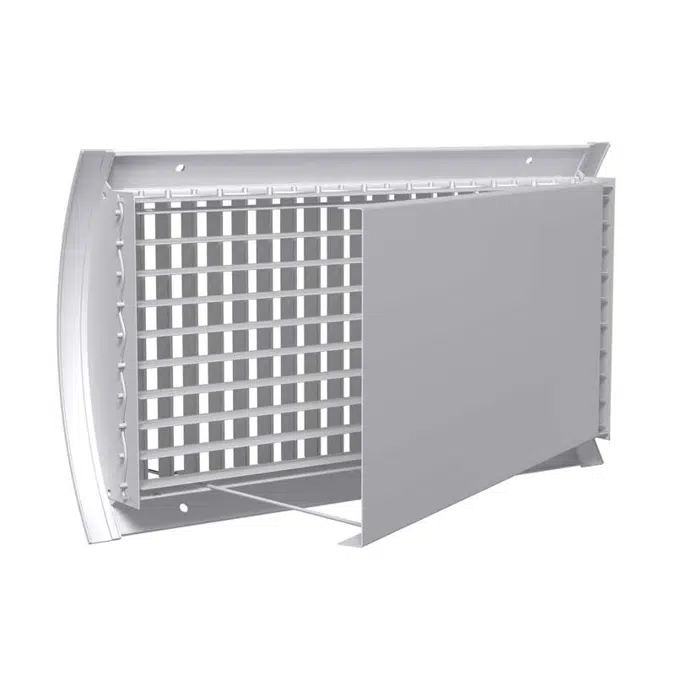

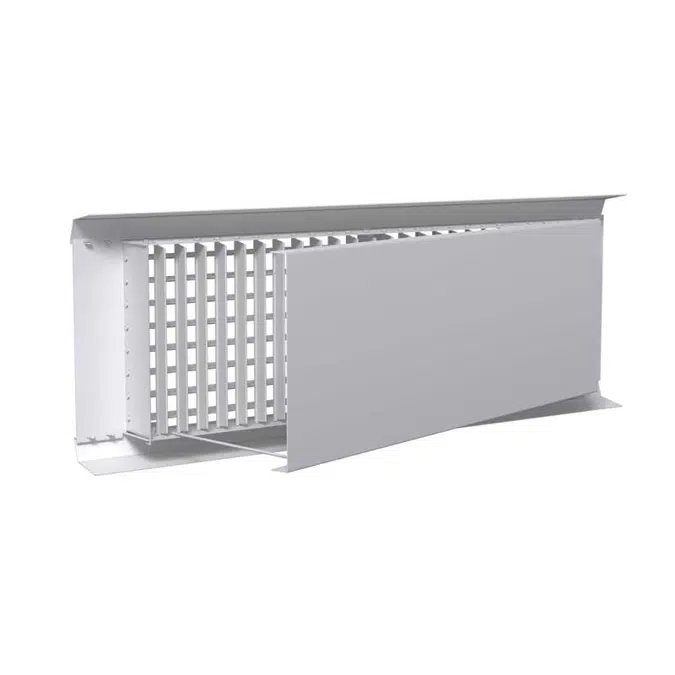

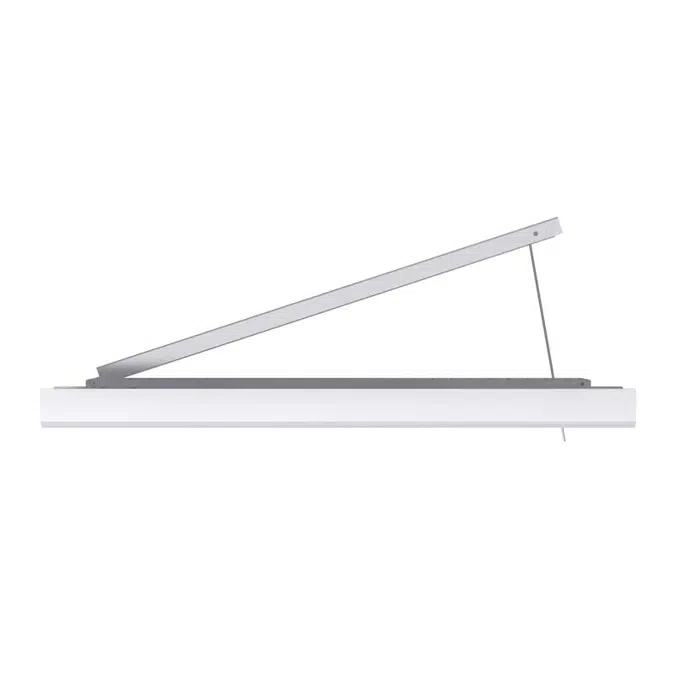

  - Air scoop (AS)
  - Opposed blade damper (VSC3)

Technical specification

Unique ref.sdg-spiral-duct
Product familyGrilles
Product groupGrilles
TypeObject (single object)
Date of publishing2023-11-29
Edition number1

Links

Product urlhttps://www.priceindustries.com/grilles/products/sdg-spiral-duct
Installation instructionshttps://www.priceindustries.com/grilles/products/sdg-spiral-duct
Technical descriptionhttps://www.priceindustries.com/grilles/products/sdg-spiral-duct

Classification

BIMobject CategoryHVAC - Ductwork
IFC classificationAir Terminal
ETIM CodeEC010633
ETIM NameDisplacement grille
Uniclass 2015 CodePr_70_65_04_03
Uniclass 2015 DescriptionAir grilles
CSI MasterFormat 2014 Code23 37 13
CSI MasterFormat 2014 TitleDiffusers, Registers, and Grilles
OmniClass Number23-33 49 23 13
OmniClass TitleReturn Air Grilles
