LV - Linear Vane Diffuser

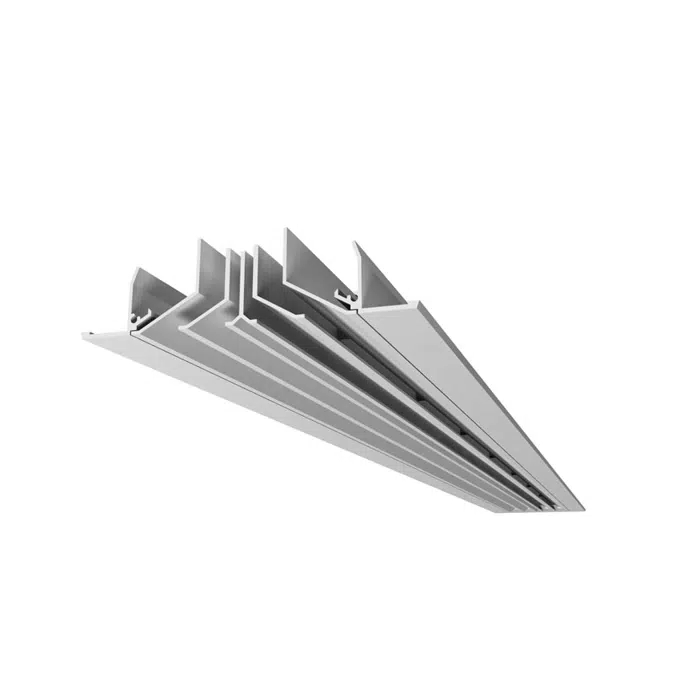

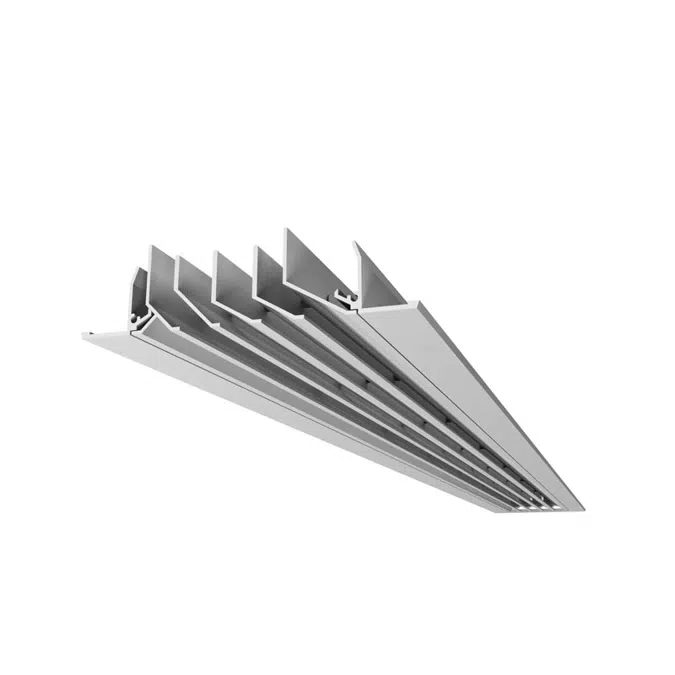

The Linear Vane Diffuser (LV) features a removable louvered core with fixed 1 or 2-way airflow and is suitable for installation in ceilings and sidewalls. Optional continuous construction and anodized finishes make the LV ideal for architectural applications.

Typical Applications

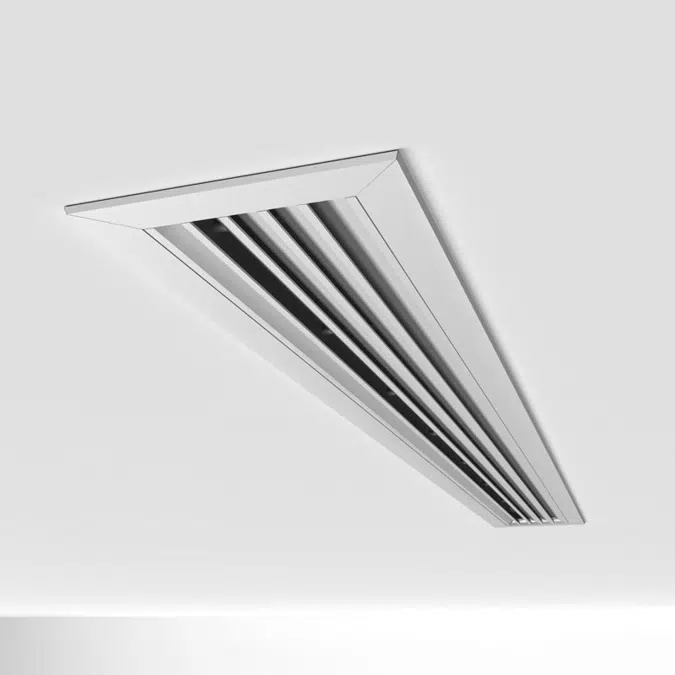

Linear Vane Diffusers provide linear styling in supply and return air distribution applications. Available in continuous lengths for a clean aesthetic these units can be mounted in ceilings or sidewalls dependent on desired airflow direction.

Specification

Construction Options
- Air Pattern

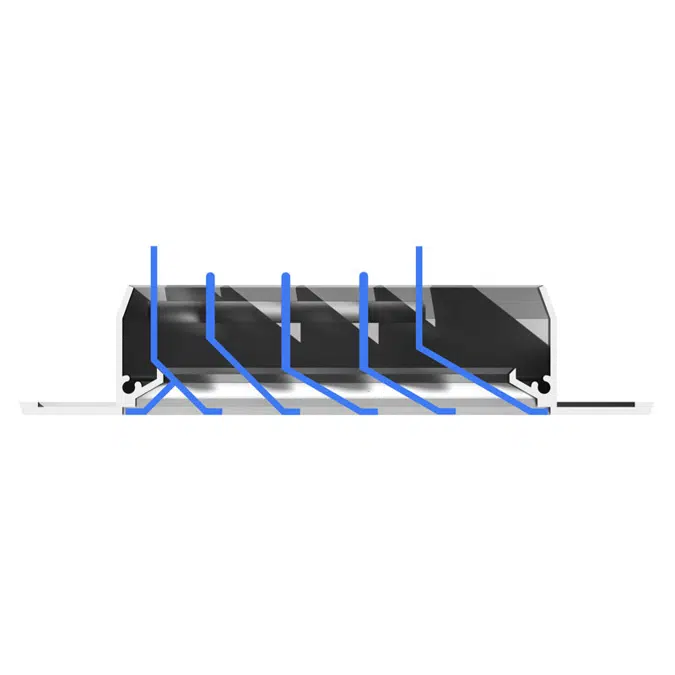

  - 1-Way (LV1)

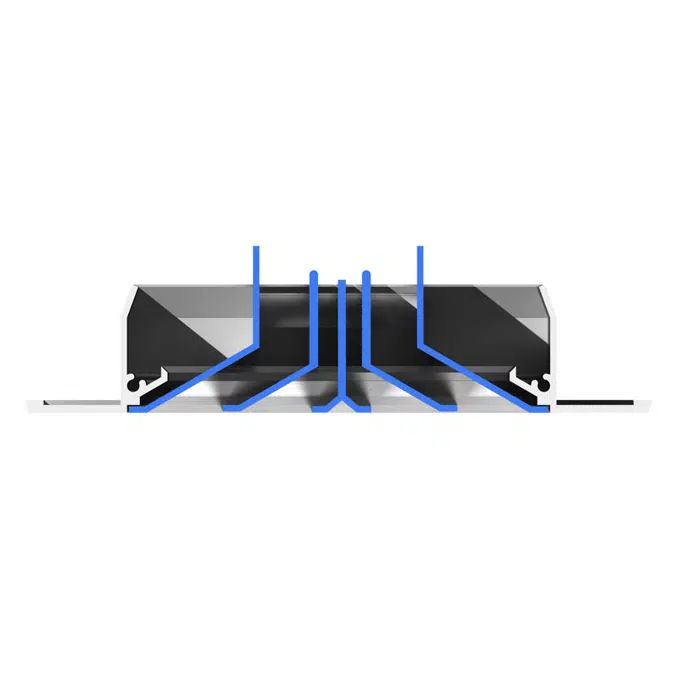

  - 2-Way (LV2)
- Size
  - Single piece max. length 96 in.
- Finish
  - White Powder Coat
  - Anodized Finishes
- Options
  - Dampers
  - Directional vanes
  - Blank-off strips

Technical specification

Unique ref.lv1-lv2-linear-vane-diffusers
Product familyDiffusers
Product groupDiffusers
TypeObject (single object)
Date of publishing2023-12-04
Edition number1

Links

Product urlhttps://www.priceindustries.com/diffusers/products/lv1-lv2-linear-vane-diffusers
Installation instructionshttps://www.priceindustries.com/diffusers/products/lv1-lv2-linear-vane-diffusers
Technical descriptionhttps://www.priceindustries.com/diffusers/products/lv1-lv2-linear-vane-diffusers

Classification

BIMobject CategoryHVAC - Ductwork
IFC classificationAir Terminal
Uniclass 2015 CodePr_70_65_04_02
Uniclass 2015 DescriptionAir diffusers
CSI MasterFormat 2014 Code23 37 13
CSI MasterFormat 2014 TitleDiffusers, Registers, and Grilles
OmniClass Number23-33 49 11
OmniClass TitleVentilation Diffusers
