CF - Custom Flow Architectural Slot Diffuser

CF - Custom Flow Architectural Slot Diffuser

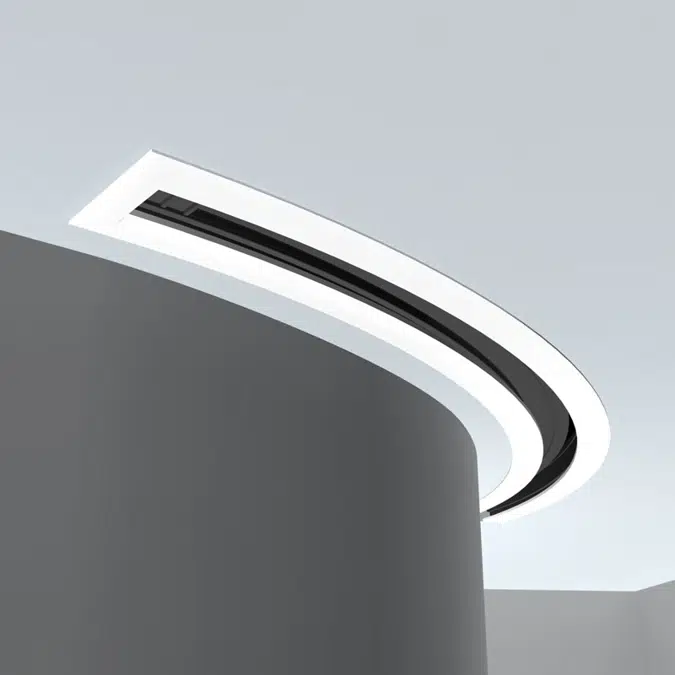

Custom Flow (CF) slot diffusers are uniquely designed for curving and long continuous installations. The CF offers a large range of airflow flexibility with one or two slot arrangements, various slot widths, and vertical or horizontal pattern adjustment.

Typical Applications

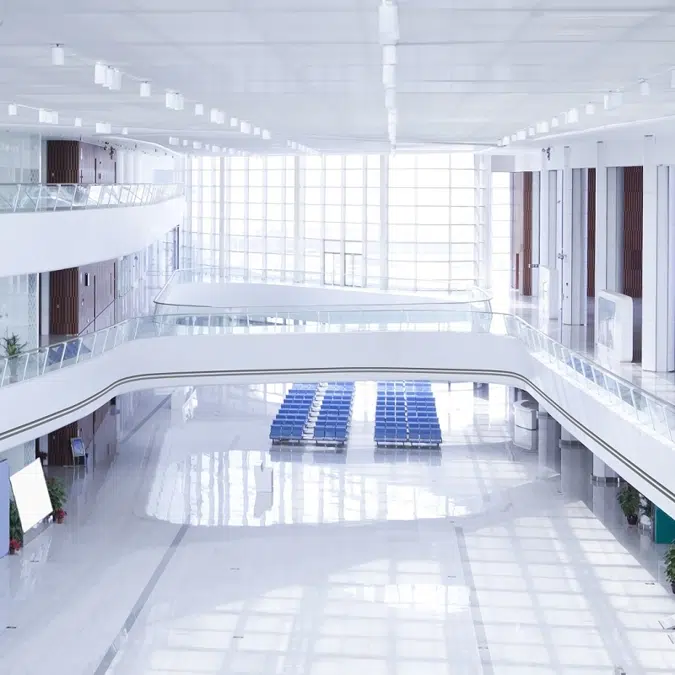

Custom Flow linear diffusers are specifically designed for the most demanding architectural and performance applications. As a premium linear slot diffuser, Custom Flow is manufactured using extruded aluminum ensuring a crisp, clean appearance. Custom Flow is ideal for long, continuous runs and often used for perimeter heating and cooling.

Specification

Construction Options

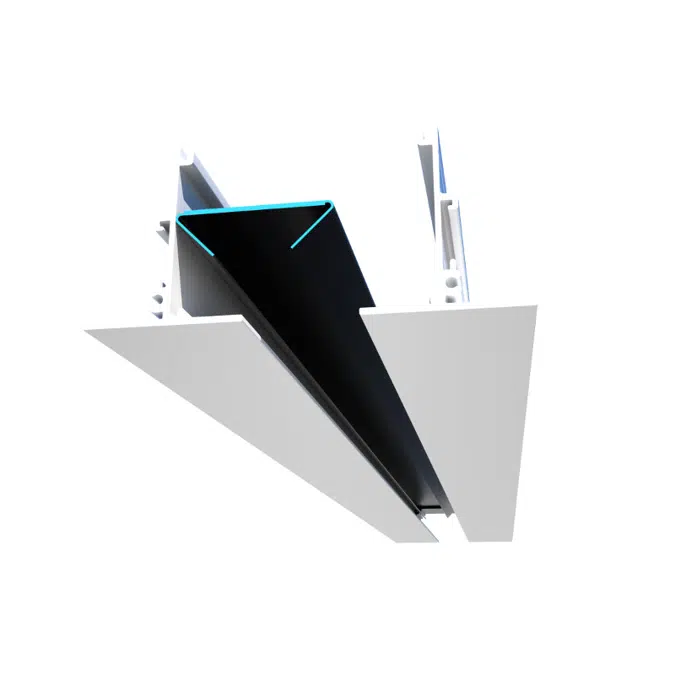

- Pattern Controller Style
  - Adjusta Slot (AS)
  - Jet Slot (JS)
  - Return (RT)
- Slot Widths
  - 1 in.
  - 1 ½ in.
  - 2 in.
  - 2 ½ in.
  - 3 in.

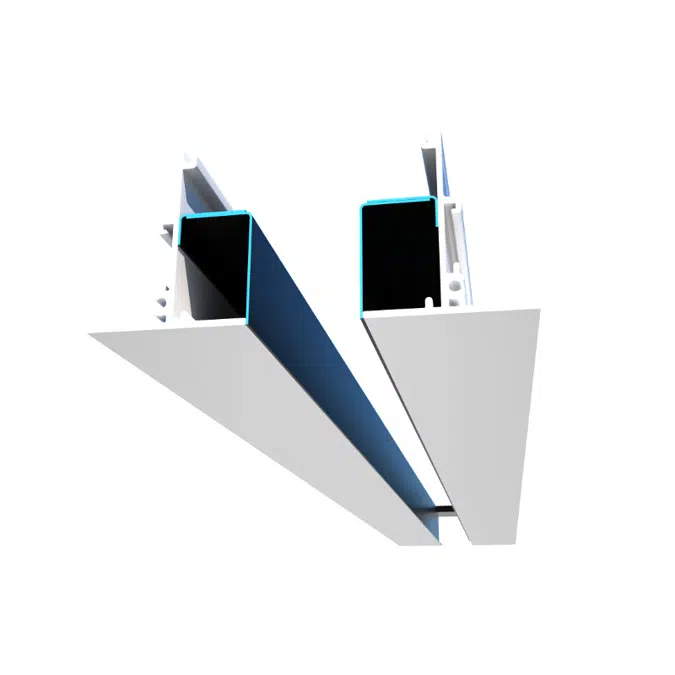

- Slot quantity
  - 1
  - 2
- Application
  - Straight Diffuser (CF)

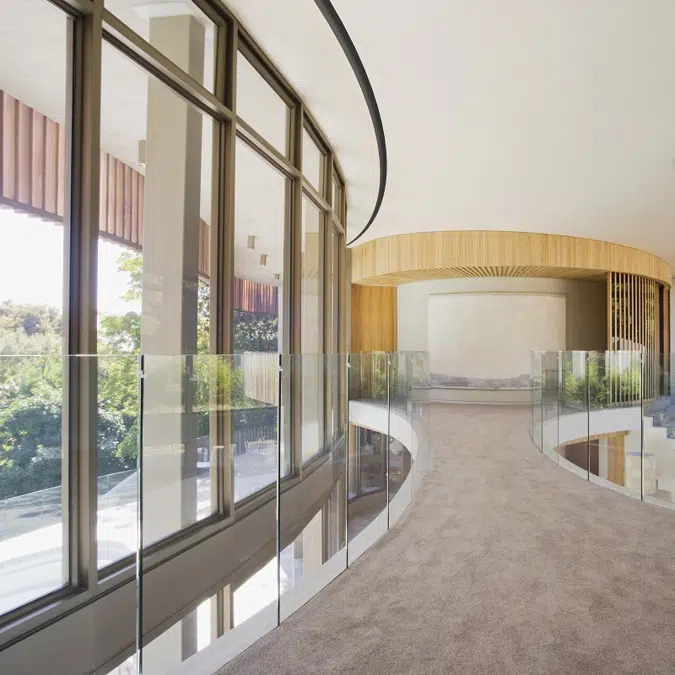

  - Curved Diffuser (CFC)

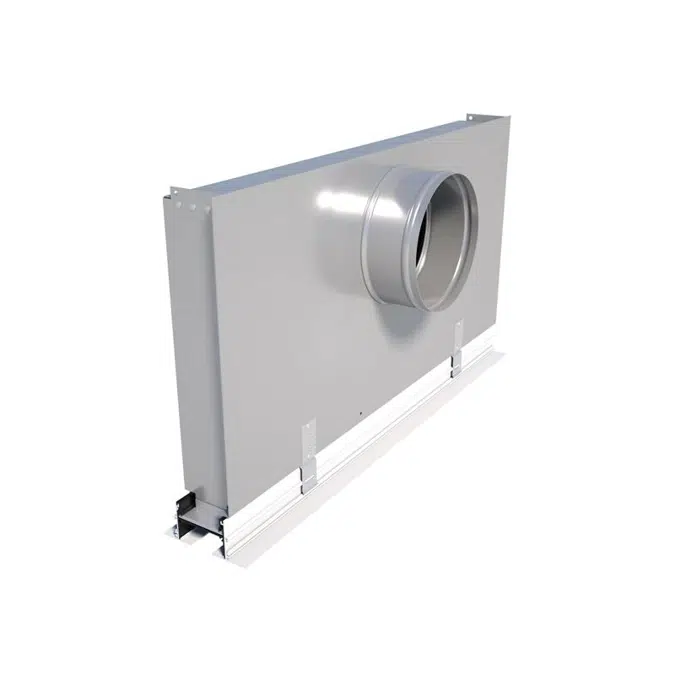

  - Straight Plenum (CFP)
  - Curved Plenum (CFPC)

Technical specification

Unique ref.cf-custom-flow-architectural-slot-diffuser
Product familyDiffusers
Product groupDiffusers
TypeObject (single object)
Date of publishing2023-12-12
Edition number1

Links

Product urlhttps://www.priceindustries.com/diffusers/products/cf-custom-flow-architectural-slot-diffuser
Installation instructionshttps://www.priceindustries.com/diffusers/products/cf-custom-flow-architectural-slot-diffuser
Technical descriptionhttps://www.priceindustries.com/diffusers/products/cf-custom-flow-architectural-slot-diffuser

Classification

BIMobject CategoryHVAC - Ductwork
IFC classificationAir Terminal
ETIM CodeEC010630
ETIM NameSlot diffuser
Uniclass 2015 CodePr_70_65_04_02
Uniclass 2015 DescriptionAir diffusers
CSI MasterFormat 2014 Code23 37 13
CSI MasterFormat 2014 TitleDiffusers, Registers, and Grilles
OmniClass Number23-33 49 11
OmniClass TitleVentilation Diffusers
