900-LFC Compact Low-Frequency Control Element

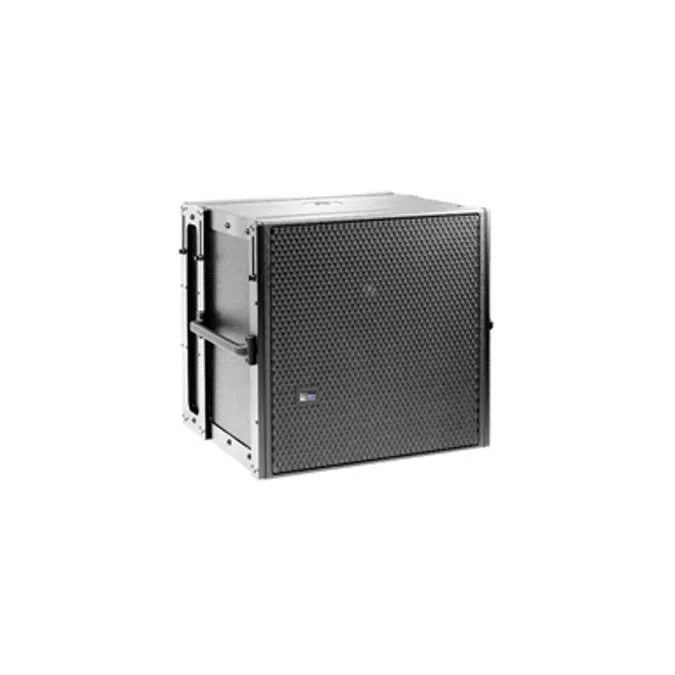

Meyer Sound’s 900-LFC compact low-frequency control element reproduces low frequencies at high, continuous output levels with extremely low distortion. The 900-LFC offers the same sonic linearity as Meyer Sound’s 1100-LFC low-frequency control element in a smaller,lighter cabinet, making it ideal for building scalable systems to suit touring applications or fixed installations of any size.

FEATURES AND BENEFITS

Compact cabinet with small footprint and extraordinary power-to-size ratio
High peak power output with extremely low distortion
Exceptional linearity, transient reproduction, and low-frequency clarity
Self-powered for simplified setup and increased reliability

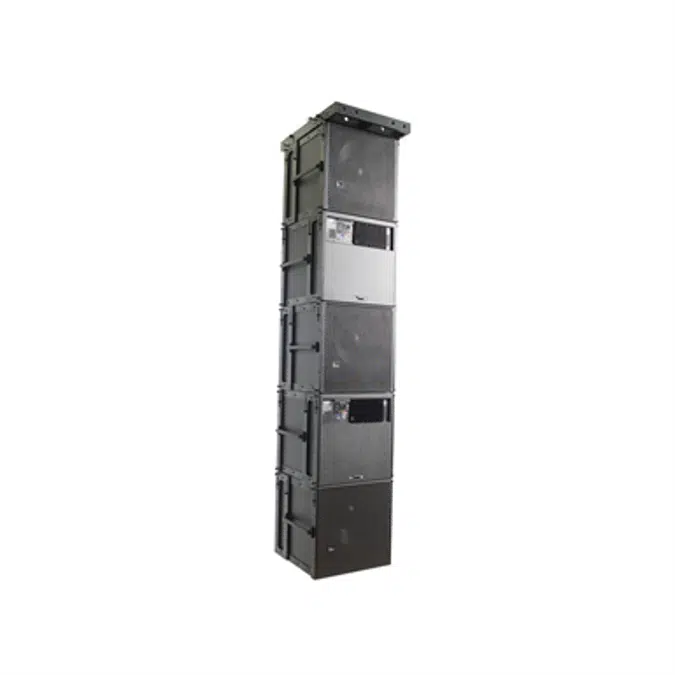

Stackable and flyable in regular and cardioid arrays, with tilt and splay options

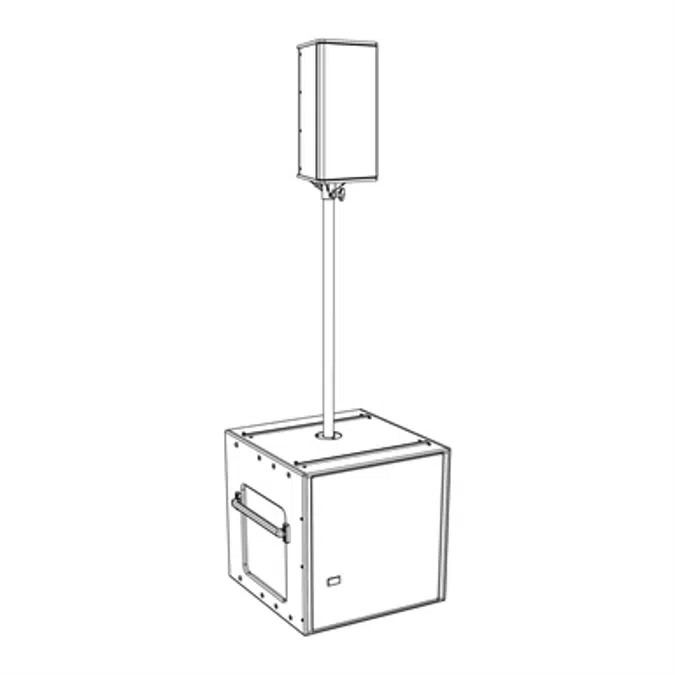

Integral pole-mount receptacle easily pairs the subwoofer with UltraSeries loudspeakers.

APPLICATIONS

Scalable low-frequency control for touring applications or fixed installations of any size
Clubs, theatres, houses of worship, corporate AV, and theme parks
Low-frequency complement for LEO-M, LYON, and LEOPARD Systems

Specification

The loudspeaker shall be a compact, self-powered, linear, low-distortion, low-frequency control element and shall be capable of flown, ground-stacked, and cardioid configurations. Its transducer shall be one 18 in dual-coil long-excursion cone driver.
The loudspeaker shall incorporate internal processing and a two-channel, open-loop, class D amplifier. Processing shall include equalization, phase correction, and driver protection. Performance specifications for a typical production unit, measured at 1/3-octave resolution, shall be as follows: operating frequency range shall be 30–125 Hz; frequency response shall be 32–115 Hz ±4 dB (measured in half-space with pink noise at 4 m, 1/3-octave frequency resolution); phase response shall be 40–110 Hz ±30°; linear peak SPL shall be 133 dB, measured in half-space with M-noise at 4 m referred to 1 m.
Audio connectors shall be XLR 3-pin, female and male, accommodating balanced audio, or XLR 5-pin, accommodating both balanced audio and RMS.
The internal power supply shall perform EMI filtering, soft current turn-on, and surge suppression. Power requirements shall be nominal 100, 110, or 230 V AC line current at 50–60 Hz. UL and CE operating voltage range shall be 100–240 V AC at 50–60 Hz. AC power connectors for input and loop output shall be powerCON 20. Maximum long-term continuous current draw shall be 4.9 A rms at 115 V AC, 2.5 A rms at 230 V AC, and 5.2 A rms at 100 V AC.
The loudspeaker shall include an RMS remote monitoring system module.

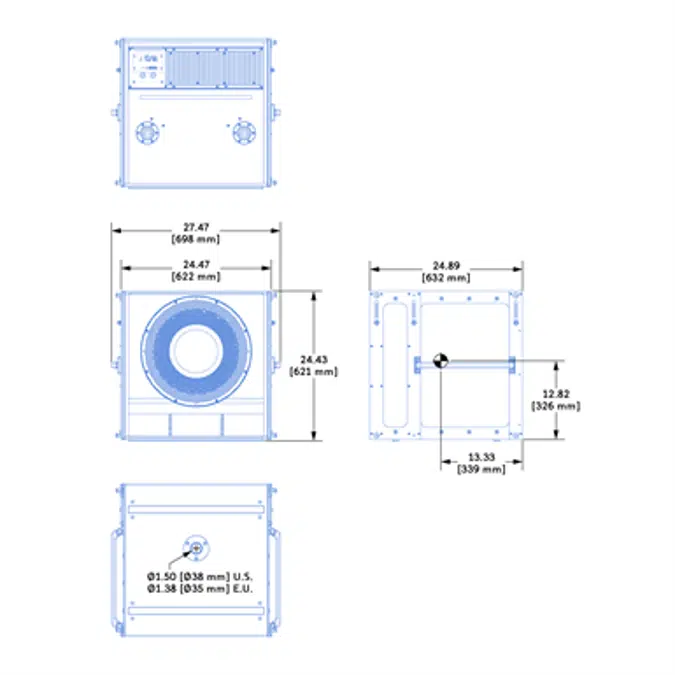

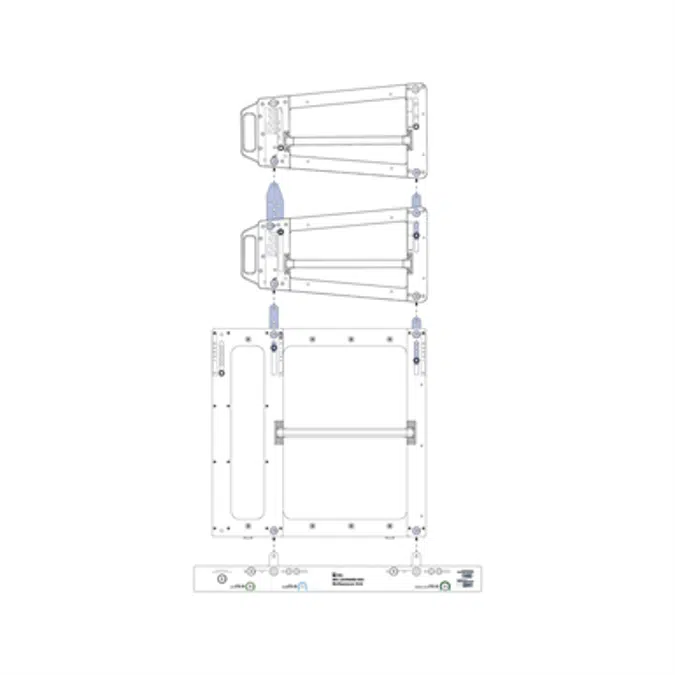

Components shall be mounted in an optimally tuned, vented enclosure constructed of premium multi-ply birch with a slightly textured black finish. The front protective grille shall be powder-coated, hex-stamped steel with acoustical black mesh. Optional rigging for the enclosure shall include endframes with captive GuideALinks for linking units in vertical arrays at splay angles of 0°, 1.25°, 2.5°, 3.75°, or 5°. Dimensions without rigging shall be W: 27.43 in (697 mm) x H: 24.43 in (621 mm) x D: 24.89 in (632 mm). Dimensions with optional rigging shall be W: 27.47 in (698 mm) x H: 24.43 in (621 mm) x D: 24.89 in (632 mm). Weight shall be 136 lb (61.7 kg). Weight with optional rigging shall be 159 lb (72.1 kg).
The loudspeaker shall be the Meyer Sound 900-LFC
Keyword: Subwoofer, Subwoofers, Loudspeaker, Loudspeakers

Technical specification

Unique ref.meyersound-900-lfc
Product familySubwoofers
Product groupLF Series
TypeObject (single object)
Date of publishing2015-05-29
Edition number1
Height (inches)24.43
Width (inches)27.47
Depth (inches)24.89

Links

Product urlhttp://www.meyersound.com/product/900-lfc/
Installation instructionshttps://meyersound.com/download/leopard-900-lfc-rigging-assembly-guide/?wpdmdl=53419&masterkey=5ad0fc0eb0759
Product certificationhttps://meyersound.com/download/900-lfc-operating-instructions/?wpdmdl=2013&masterkey=58b9e6a4661b6
Technical descriptionhttps://meyersound.com/download/900-lfc-datasheet/?wpdmdl=2010&masterkey=58b9e69fa00ab

Material mainBirch
Designed inUnited States
Manufactured inUnited States
Weight Net (Lbs)159

Classification

BIMobject CategoryElectronics - Audio
Uniclass 2015 CodePr_70_75_36_50
Uniclass 2015 DescriptionLoudspeakers
CSI MasterFormat 2014 Code27 24 23
CSI MasterFormat 2014 TitleAudio-Video Devices
OmniClass Number23-37 15 29 11 13
OmniClass TitleLoudspeakers
