    Universal Plenum for Linear Slot Diffusers - UP-6600/UPI-6600

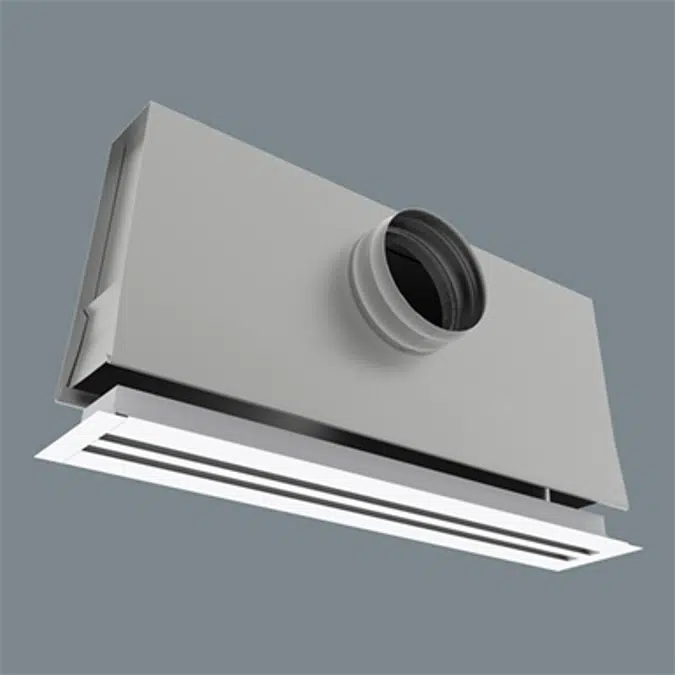

    he models UP (un-insulated) and UPI (insulated) are designed to connect linear air distribution products to the ducted supply or return system.  The UP/UPI models are constructed of galvanized steel.  The standard height of the plenum is 10.5".

    Specification
      • Standard insulation on UPI is ½" Internal Fiberglass with other options available:
        • External fiberglass insulation (EI)
        • Internal closed cell foam (CC) insulation
      • Standard inlet sizes are 6" (round) or 8", 10", 12" and 14" (oval)
      • Standard lengths available are 24", 36", 48", 60" and 72".
      • Multiple damper options available:
        • Locking quadrant damper (LQ)
        • Inlet damper (ID)
        • Remote operated damper (ROD)
        • Face-operated damper (FODR)

      Un-insulated PlenumsUP-FAL - Un-insulated Universal Plenum for Formations Linear Diffusers
      UP-6600 - Un-insulated Universal Plenum for 6600 Series Linear Slot Diffusers
      UP-6675TZ - Un-insulated Universal Plenum for 6675TZ "Tech Zone" Linear Diffusers

      Insulated Plenums
      UPI-6600 - Insulated Universal Plenum for 6600 Series Linear Slot Diffusers
      UPI-6675TZ - Insulated Universal Plenum for 6675TZ "Tech Zone" Linear Diffusers

    Technical specification
    • Unique ref.6600-UP-UPI-LSD
    • Product familyGrilles, Registers & Diffusers
    • Product groupLinear Diffusers & Grilles
    • TypeObject (single object)
    • Date of publishing2020-02-28
    • Edition number1
    Links
    Related
    • Material mainSteel
    • Material secondaryAluminium
    • Designed inUnited States
    • Manufactured inUnited States
    Classification
    • BIMobject CategoryHVAC - Ductwork
    • IFC classificationAir Terminal
    • UNSPSC nameAir diffusers
    • UNSPSC code40101505
    • Uniclass 2015 CodePr_70_65_04_02
    • Uniclass 2015 DescriptionAir diffusers
    • CSI MasterFormat 2014 Code23 37 13
    • CSI MasterFormat 2014 TitleDiffusers, Registers, and Grilles
    • OmniClass Number23-33 49 11 11
    • OmniClass TitleCeiling Ventilation Diffusers
    • CSI UniFormat II CodeD30
    • CSI UniFormat II TitleHVAC
