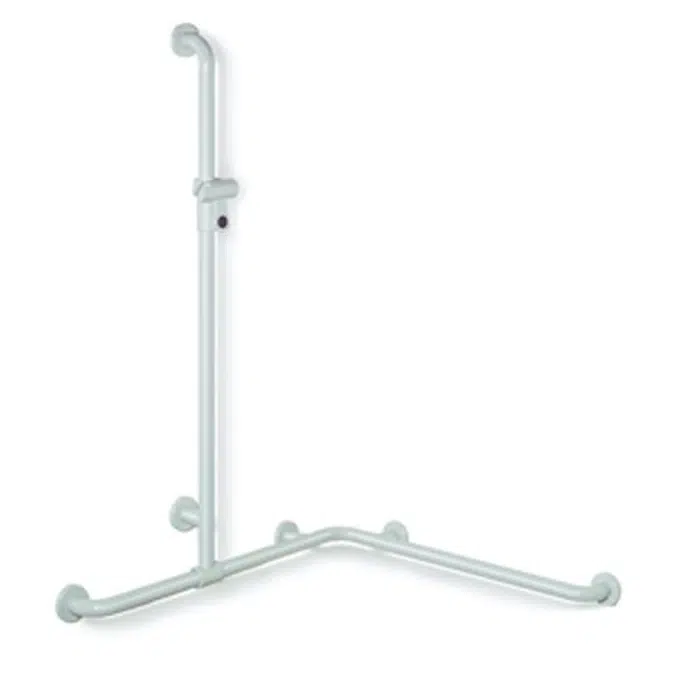

HEWI Rail with sideways adjustable vertical support bar and shower head holder 801-35-350

Range 801 Rail with vertical support bar and sliding shower head holder - vertical and horizontal rails joined to form an L shape and fitted with rose fixings and a shower head holder - with vertical rail with shower head holder that can be moved to the side (for installation) - vertical length of 1250 mm, horizontal lengths (corner mounting) 962 mm - 88 mm deep, rail diameter 33 mm, rose diameter 70 mm - suitable for shower heads of various manufacturers - shower head holder can be continuously tilted and, after pulling or pushing a large lever, its height can be adjusted - conical adapter on shower head holder makes it easier to hook in the handheld shower head - for wall mounting with special HEWI fixing materials and roses - can be mounted in left hand or right hand position - made of high-quality polyamide according to HEWI colour chart - with continuous, corrosion resistant steel core - suitable for HEWI hanging seats 950.51...10..., 950.51...11..., 802.51...11..., 802.51...12... and 801.51... Article no.: HEWI 801.35.350

Specification

801.35.350 18 4014885374817 Rail with sideways adjustable vertical support bar and shower head holder C to C 1250 x 962 x 962 mm with steel core and fixing roses made of steel mustard yellow 801.35.350 24 4014885374824 Rail with sideways adjustable vertical support bar and shower head holder C to C 1250 x 962 x 962 mm with steel core and fixing roses made of steel orange 801.35.350 33 4014885374848 Rail with sideways adjustable vertical support bar and shower head holder C to C 1250 x 962 x 962 mm with steel core and fixing roses made of steel ruby red 801.35.350 36 4014885374855 Rail with sideways adjustable vertical support bar and shower head holder C to C 1250 x 962 x 962 mm with steel core and fixing roses made of steel coral 801.35.350 50 4014885374862 Rail with sideways adjustable vertical support bar and shower head holder C to C 1250 x 962 x 962 mm with steel core and fixing roses made of steel steel blue 801.35.350 55 4014885374886 Rail with sideways adjustable vertical support bar and shower head holder C to C 1250 x 962 x 962 mm with steel core and fixing roses made of steel aqua blue 801.35.350 72 4014885374893 Rail with sideways adjustable vertical support bar and shower head holder C to C 1250 x 962 x 962 mm with steel core and fixing roses made of steel may green 801.35.350 74 4014885374909 Rail with sideways adjustable vertical support bar and shower head holder C to C 1250 x 962 x 962 mm with steel core and fixing roses made of steel apple green 801.35.350 84 4014885374916 Rail with sideways adjustable vertical support bar and shower head holder C to C 1250 x 962 x 962 mm with steel core and fixing roses made of steel umber 801.35.350 86 4014885374923 Rail with sideways adjustable vertical support bar and shower head holder C to C 1250 x 962 x 962 mm with steel core and fixing roses made of steel sand 801.35.350 90 4014885374930 Rail with sideways adjustable vertical support bar and shower head holder C to C 1250 x 962 x 962 mm with steel core and fixing roses made of steel jet black 801.35.350 92 4014885374947 Rail with sideways adjustable vertical support bar and shower head holder C to C 1250 x 962 x 962 mm with steel core and fixing roses made of steel anthracite grey 801.35.350 95 4014885374954 Rail with sideways adjustable vertical support bar and shower head holder C to C 1250 x 962 x 962 mm with steel core and fixing roses made of steel stone grey 801.35.350 97 4014885374961 Rail with sideways adjustable vertical support bar and shower head holder C to C 1250 x 962 x 962 mm with steel core and fixing roses made of steel light grey 801.35.350 98 4014885374978 Rail with sideways adjustable vertical support bar and shower head holder C to C 1250 x 962 x 962 mm with steel core and fixing roses made of steel signal white 801.35.350 99 4014885374985 Rail with sideways adjustable vertical support bar and shower head holder C to C 1250 x 962 x 962 mm with steel core and fixing roses made of steel pure white

Technical specification

Unique ref.801-35-350
Product familyAccessibility
Product groupShower grab rails
TypeObject (single object)
Date of publishing2021-08-09
Edition number1

Links

Product urlhttps://catalog.hewi.com/en/p/80135350
Installation instructionshttps://catalog.hewi.com/storage/downloads/M8010-05.pdf
Technical descriptionhttps://catalog.hewi.com/storage/downloads/HEWI_801_35_350_en.pdf

Material mainPolyamide
Material secondarySteel
Designed inGermany
Manufactured inGermany

Classification

BIMobject CategorySanitary - Bathroom Accessories
IFC classificationSanitary Terminal
UNSPSC nameSanitary ware
UNSPSC code301815
Uniclass 2015 CodePr_40_20_76
Uniclass 2015 DescriptionSanitary accessories
