FUJITSU VRF AJYA72-108GALH
FUJITSU VRF AJYA72-108GALH
    FUJITSU GENERAL

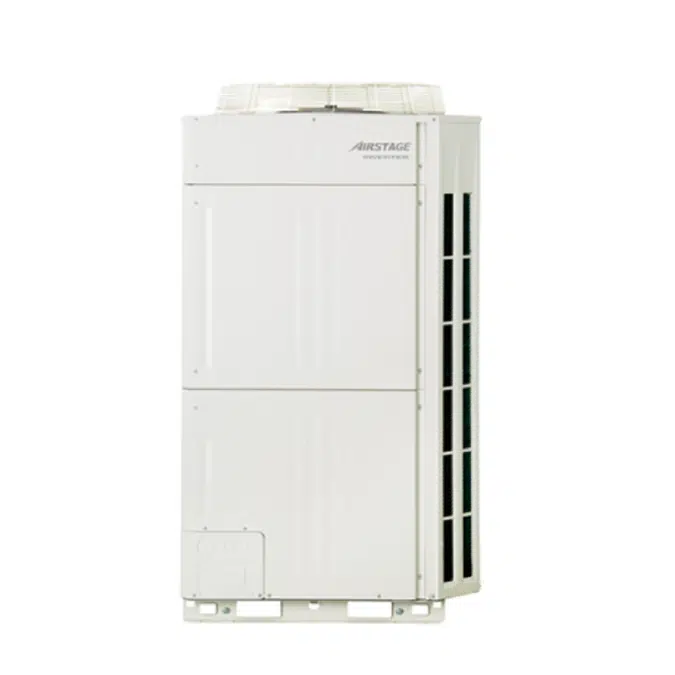

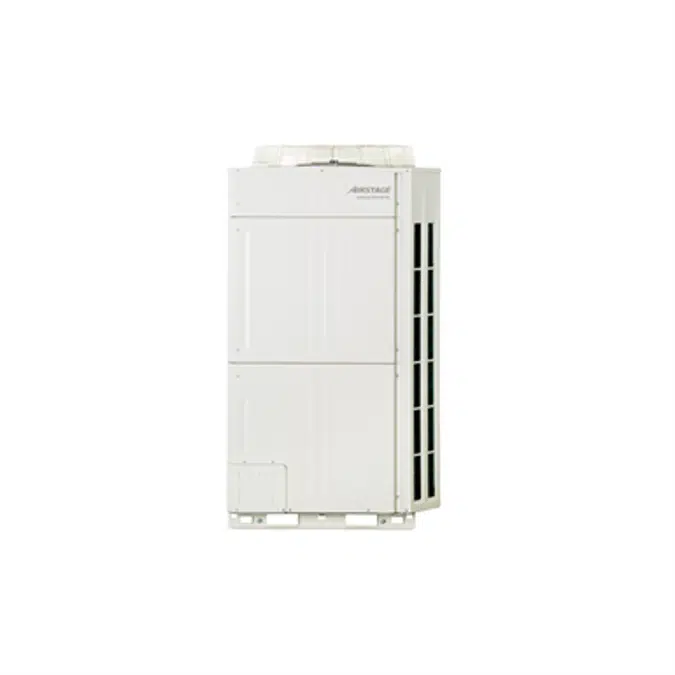

    FUJITSU VRF AJYA72-108GALH

    • System Outline
    • High Operating Energy Efficiency
    • Energy saving technology that boosted operation efficiency
    • Ideal heat exchanger path control
    • Sophisticated operation control
    • Flexible piping connection
    • Flexible installation of RB unit


    Specification

    • The RFA file includes 3 models below.

      Model Name / Horsepower / Cooling Capacity / Heating Capacity

      AJYA72GALH / 8HP / 22.4kW / 25.0kW

      AJYA90GALH / 10HP / 28.0kW / 31.5kW

      AJY108GALH / 12HP / 33.5kW / 37.5kW

      Multiple types of RFA(s) are included with Revit type catalog in ZIP file format.

      Please download the ZIP file together with RFA and use reload command in Revit to import the other product types.

    Technical specification
    • Unique ref.VRF_AJYA72-108GALH
    • Product familyVRF Air Conditioner
    • Product groupOutdoor Unit
    • TypeObject (single object)
    • Date of publishing2019-04-22
    • Edition number1
    • Height (mm)1690
    • Width (mm)930
    • Depth (mm)765
    Links
    Related
    • Material mainSteel
    • Designed inJapan
    • Weight Net (Kg)262
    Classification
    • BIMobject CategoryHVAC - Air Conditioning
    • CSI MasterFormat 2014 Code23 00 00
    • CSI MasterFormat 2014 TitleHeating, Ventilating, and Air Conditioning (HVAC)
    • OmniClass Number23-33 39 00
    • OmniClass TitleAir Conditioning Equipment
    • CSI UniFormat II CodeD30
    • CSI UniFormat II TitleHVAC
