27808809FF0010 VAIA Hand shower set with individual rosettes
27808809FF0010 VAIA Hand shower set with individual rosettes
27808809FF0010 VAIA Hand shower set with individual rosettes
27808809FF0010 VAIA Hand shower set with individual rosettes
27808809FF0010 VAIA Hand shower set with individual rosettes
27808809FF0010 VAIA Hand shower set with individual rosettes
    Dornbracht

    27808809FF0010 VAIA Hand shower set with individual rosettes

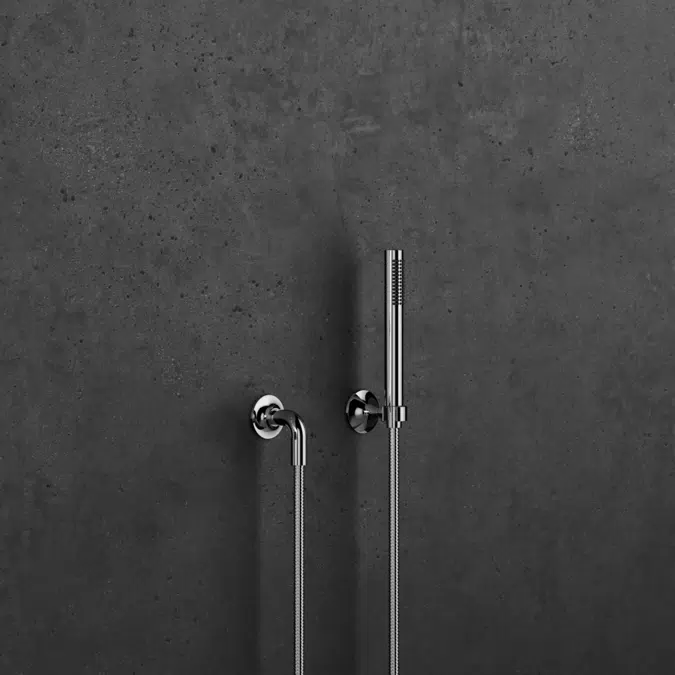

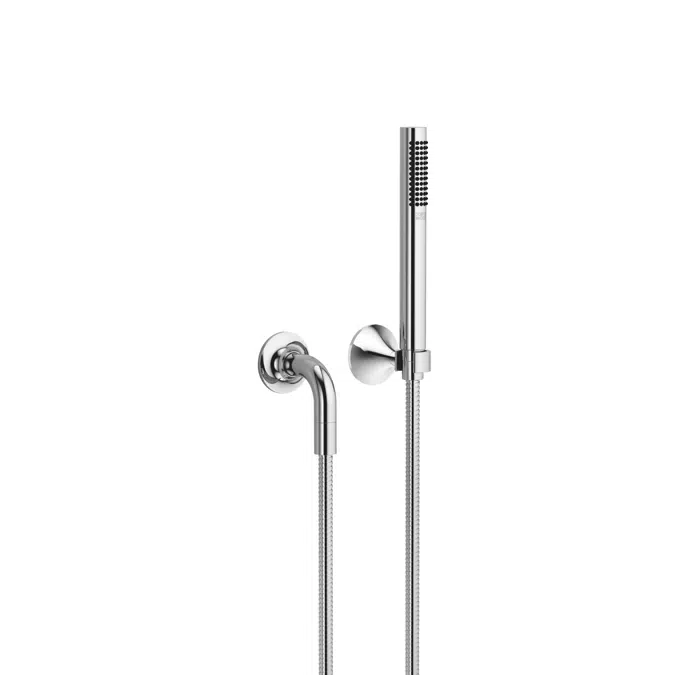

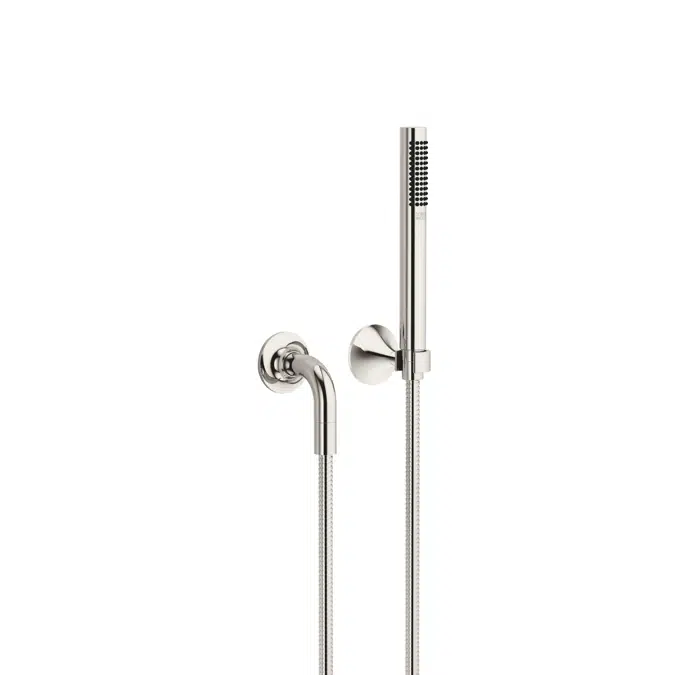

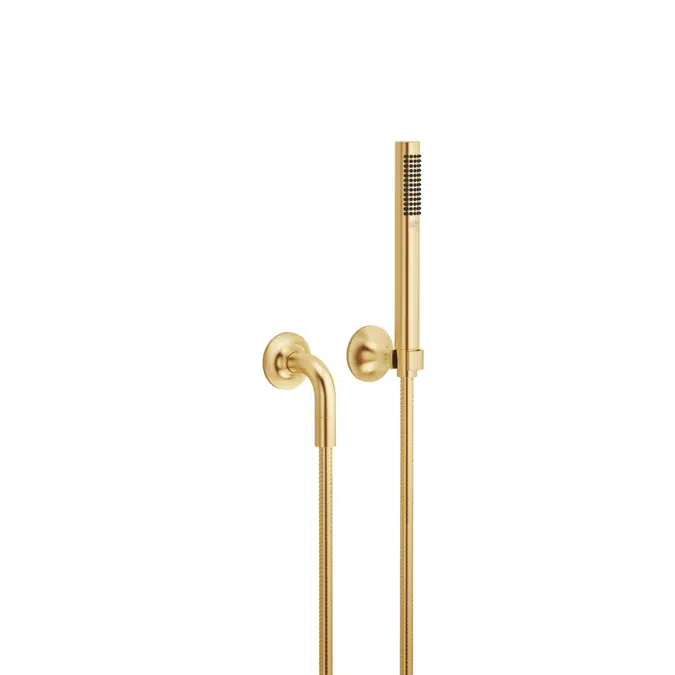

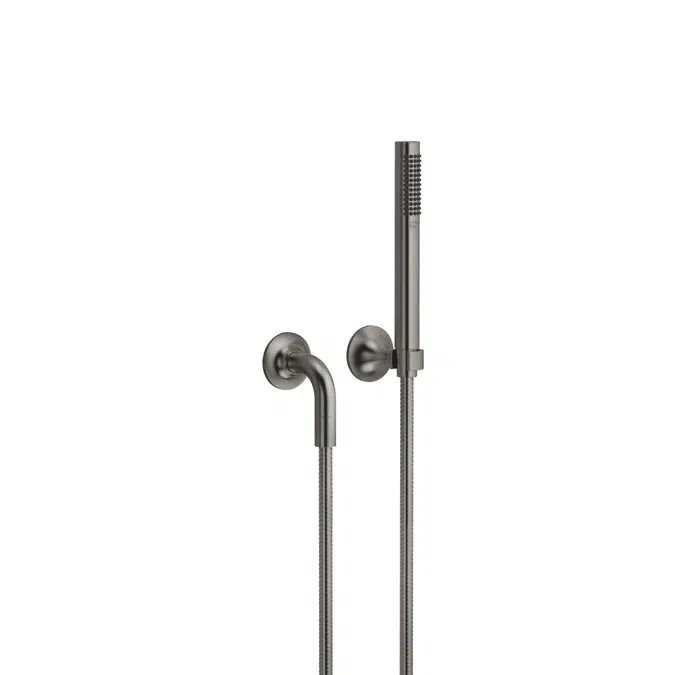

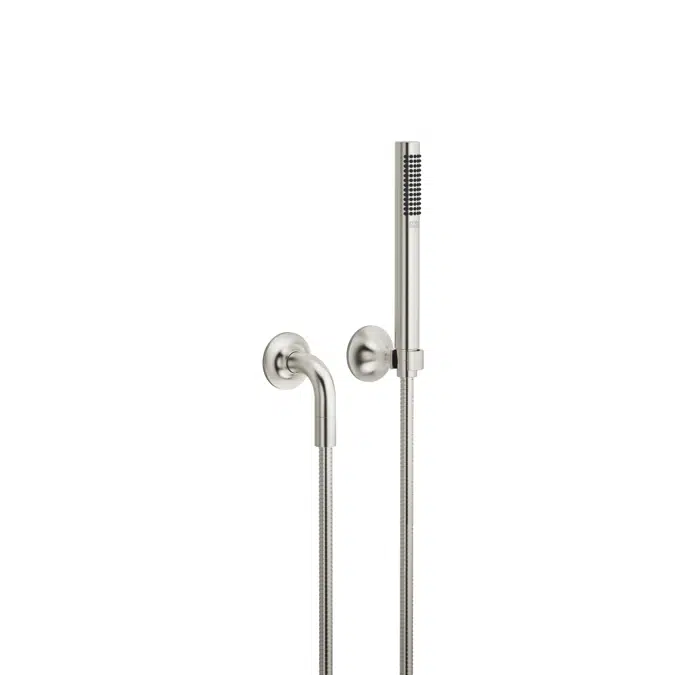

    VAIA Hand shower set with individual rosettes
    Specification
    • VAIA Hand shower set with individual rosettes

      • Standard spray mode
      • Descaling system
      • 3/8" Shower outlet
      • Wall elbow with flange Ø 2-3/8"
      • Wall bracket with flange Ø 2-3/8"
      • Metal shower hose 49-1/4" with anti-twist device
      • 1/2" wall elbow
      • Water flow rate limited to max. 1.8 gpm

      Codes & Standards

      • California Energy Commission (CEC)
      • ASME A112.18.1/CSA B125.1

      Internal backflow preventer.

      Available in chrom, platinum matte, platinum, Brushed Durabrass, Dark Platinum matte

      Accessory is needed 35080970-900010 Rough-in adapter

    Technical specification
    • Unique ref.27808809FF0010
    • Product familyVaia
    • Product groupShowers - Slide bars & Shower Sets
    • TypeObject (single object)
    • Date of publishing2021-10-19
    • Edition number1
    Related
    • Material mainBrass
    • Designed inGermany
    • Manufactured inGermany
    • Weight Net (Kg)1.42
    Classification
    • BIMobject CategorySanitary - Showers
    • IFC classificationSanitary Terminal
    • ETIM CodeEC010161
    • ETIM NameHand shower
    • UNSPSC nameShowers
    • UNSPSC code30181503
    • Uniclass 2015 CodePr_40_20_87_76
    • Uniclass 2015 DescriptionShower heads
    • CSI MasterFormat 2014 Code22 41 23
    • CSI MasterFormat 2014 TitleResidential Showers
    • OmniClass Number23-31 17 19
    • OmniClass TitleShower Head Fixtures
    • CSI UniFormat II CodeD2020
    • CSI UniFormat II TitleDomestic Water Distribution
