    Elbow switch - JCK218

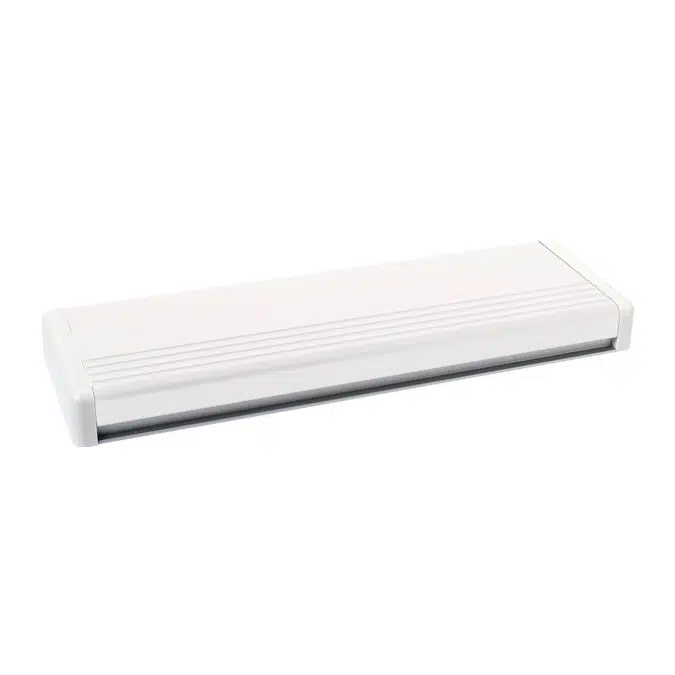

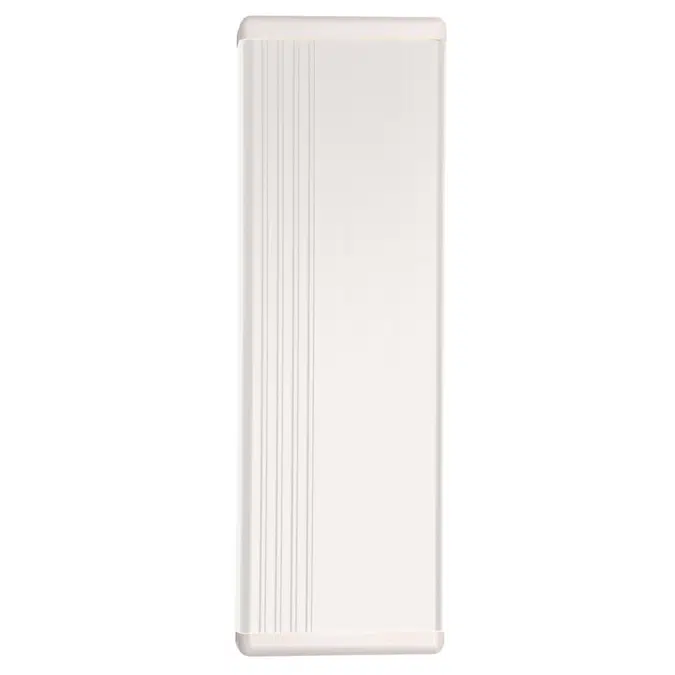

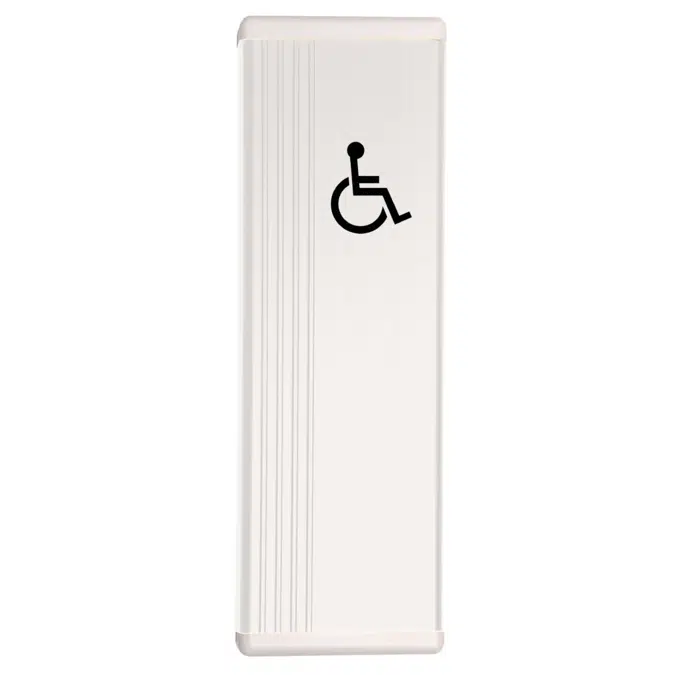

    JCK218 belongs to a series of elbow-operated switches that have a flat pressing surface with four tactile grooves. The grooves serve as extra guidance for individuals with visual impairments. It's easy to feel where to press to activate the door opener. JCK218 is made of white-painted aluminum and has white end caps. It comes with one IP67-rated microswitch but can also be ordered with more.

    Specification

    • Manufactured in Sweden.

      Material: Aluminum 6060-T6, POM (Acetal plastic).

      Dimensions l/w/d: 245x80x23 mm.

      Microswitch: Standard 1pc. NO IP67. It can be ordered with 2pcs. and it is also available with NC IP67.

    Technical specification
    • Unique ref.elbow-switch-jck218
    • Product familyMetal
    • Product groupAluminum
    • TypeObject (single object)
    • Date of publishing2025-05-15
    • Edition number1
    • Height (mm)245
    • Width (mm)80
    • Depth (mm)23
    Links
    Related
    • Material mainAluminium
    • Material secondaryCopolymer
    • Designed inSweden
    • Manufactured inSweden
    • Weight Net (Kg)0.3
    Classification
    • BIMobject CategoryDoors - Openers
    • IFC classificationDoor
    • ETIM CodeEC001351
    • ETIM NamePush button panel door communication
    • Uniclass 2015 CodePr_75_51_17_66
    • Uniclass 2015 DescriptionPush button switches
    • CSI MasterFormat 2014 Code40 78 19
    • CSI MasterFormat 2014 TitleSwitches and Push Buttons
    • OmniClass Number23-35 37 49
    • OmniClass TitlePush Button Switches
