Elbow switch - JCK 207 300mm
Elbow switch - JCK 207 300mm
Elbow switch - JCK 207 300mm
    JC Kontakter

    Elbow switch - JCK 207 300mm

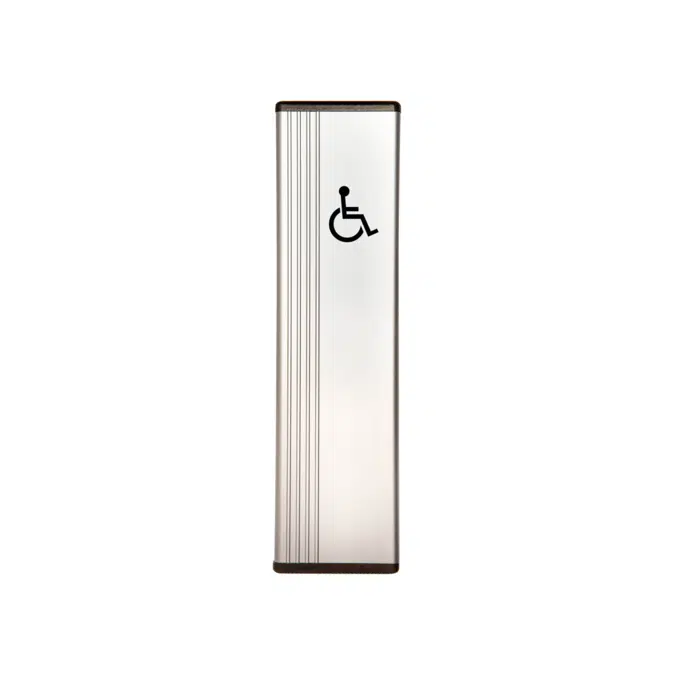

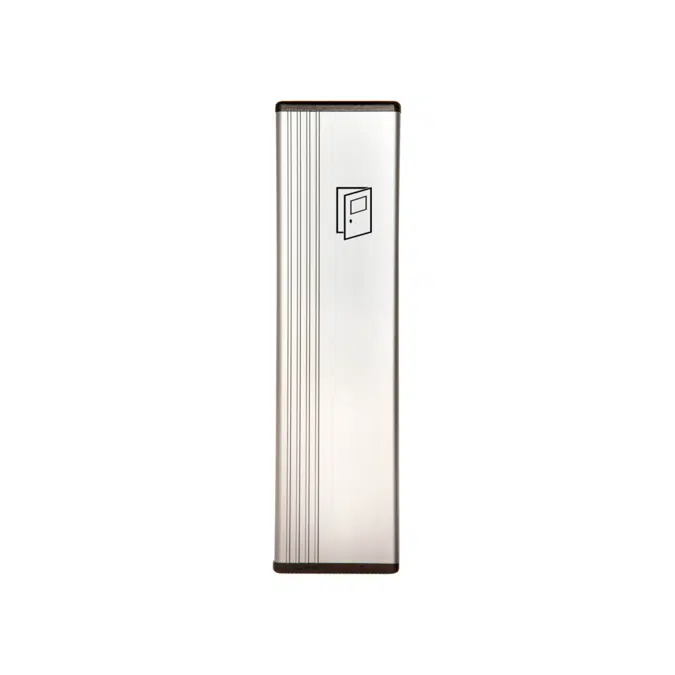

    JCK207 belongs to a series of elbow connectors that have a flat pressure surface with four tactile grooves. The grooves serve as additional guidance for people with visual impairments. One can easily feel where to press to activate the door opening.

    JCK207 is made of silver-anodized aluminum and has dark gray end caps. It is supplied with one microswitch in IP67, but can also be ordered with more.

    Specification

    • Manufactured in Sweden.

      Material: Alu.6060-T6, POM Plastic (Acetal plastic).

      Dimensions standard version (L/W/H): 300 x 80 x 23 mm.

      Micro switch: Standard 1 pc NO IP67. It can be ordered with 2 pcs NO or NC.

    Technical specification
    • Unique ref.elbow-switch-jck207-300
    • Product familyMetal
    • Product groupAluminum
    • TypeObject (single object)
    • Date of publishing2025-05-15
    • Edition number1
    • Height (mm)600
    • Width (mm)80
    • Depth (mm)28
    Links
    Related
    • Material mainAluminium
    • Material secondaryCopolymer
    • Designed inSweden
    • Manufactured inSweden
    • Weight Net (Kg)0.37
    Classification
    • BIMobject CategoryDoors - Openers
    • IFC classificationDoor
    • ETIM CodeEC001351
    • ETIM NamePush button panel door communication
    • Uniclass 2015 CodePr_75_51_17_66
    • Uniclass 2015 DescriptionPush button switches
    • CSI MasterFormat 2014 Code40 78 19
    • CSI MasterFormat 2014 TitleSwitches and Push Buttons
    • OmniClass Number23-35 37 49
    • OmniClass TitlePush Button Switches
