    Elbow switch - JCK 118

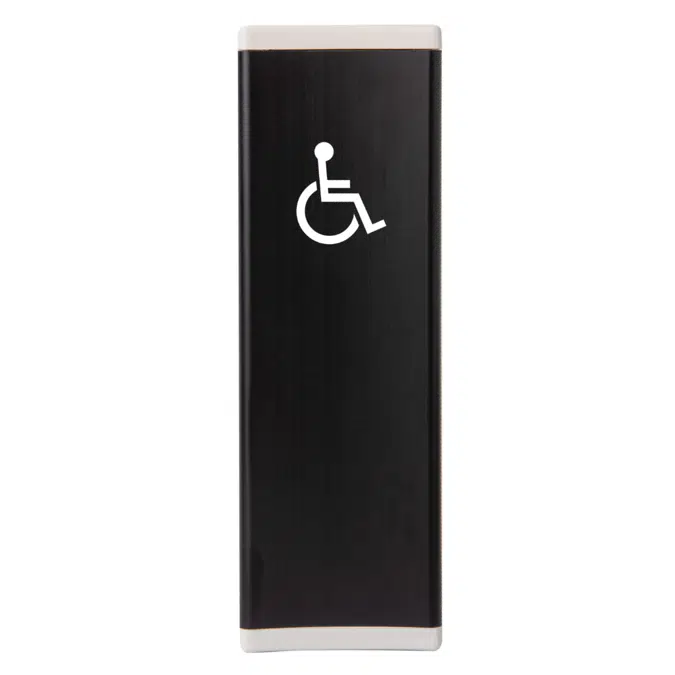

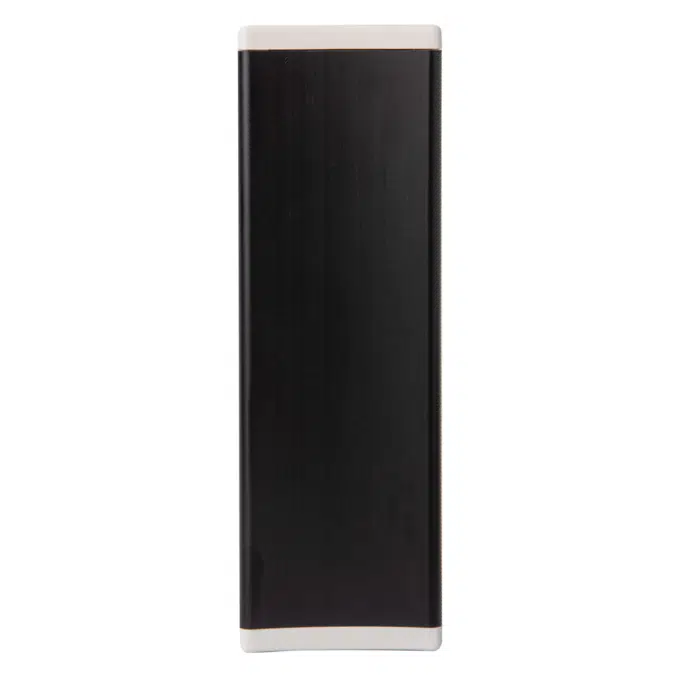

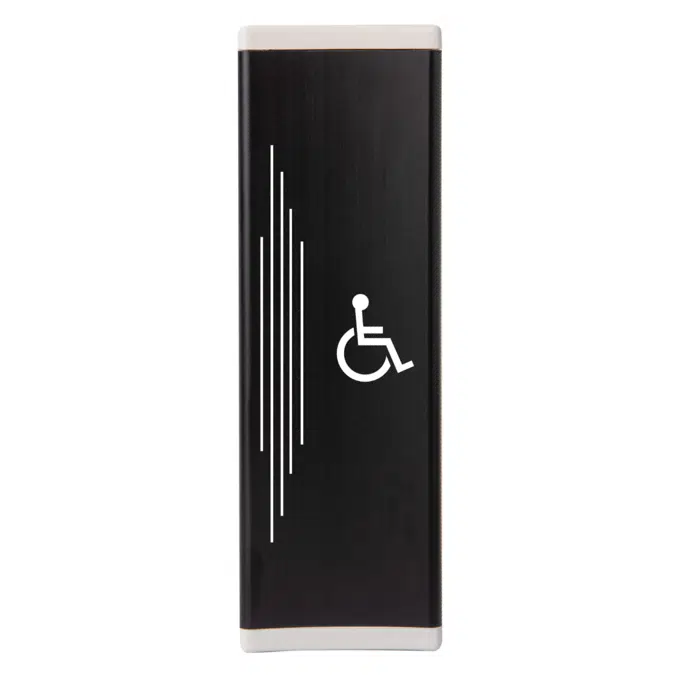

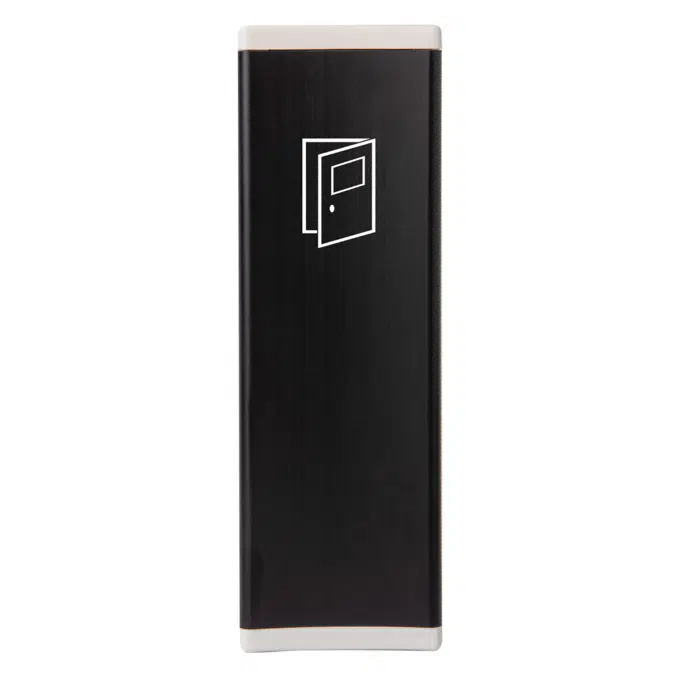

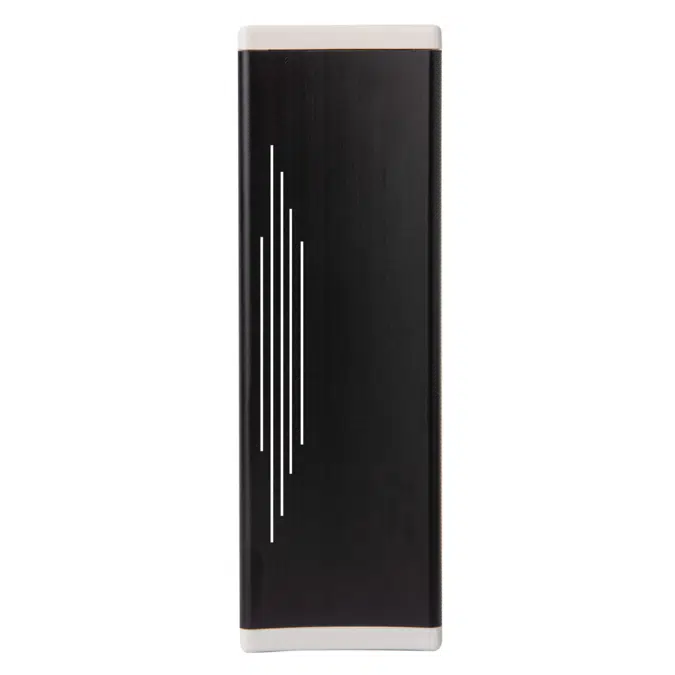

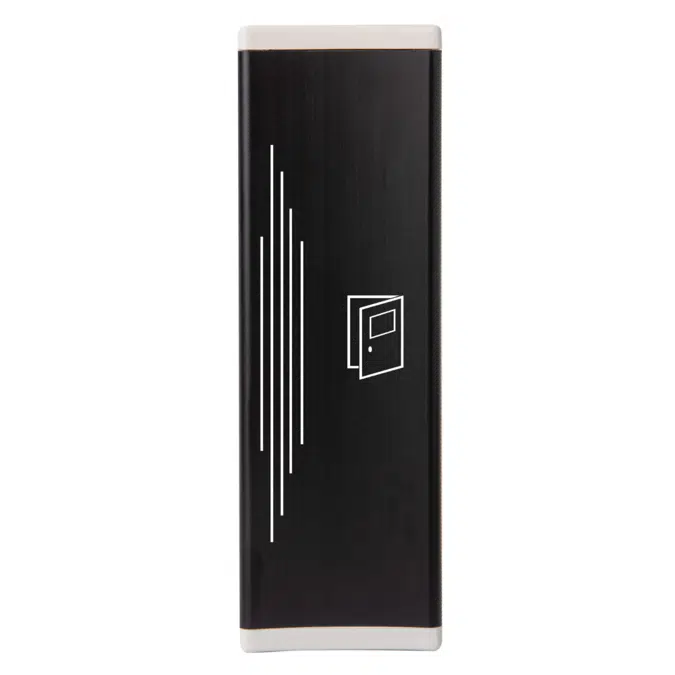

    JCK118 is a durable elbow switch made of aluminum with a black anodized surface. With its white end caps, the model provides maximum contrast in most environments.

    The model is primarily intended for outdoor use and is well-suited for demanding environments.

    JCK118 comes equipped with two IP67-rated micro switches.

    Specification

    • Manufactured in Sweden.

      Material: Aluminum 6060-T6, POM (Acetal plastic).

      Dimensions l/w/d: 245x80x23 mm.

      Microswitch: Standard 1pc. NO IP67. It can be ordered with 2pcs. and it is also available with NC IP67.

    Technical specification
    • Unique ref.elbow-switch-jck118
    • Product familyMetal
    • Product groupAluminum
    • TypeObject (single object)
    • Date of publishing2025-05-15
    • Edition number1
    • Height (mm)245
    • Width (mm)80
    • Depth (mm)28
    Links
    Related
    • Material mainAluminium
    • Material secondaryCopolymer
    • Designed inSweden
    • Manufactured inSweden
    • Weight Net (Kg)0.41
    Classification
    • BIMobject CategoryDoors - Openers
    • IFC classificationDoor
    • ETIM CodeEC001351
    • ETIM NamePush button panel door communication
    • Uniclass 2015 CodePr_75_51_17_66
    • Uniclass 2015 DescriptionPush button switches
    • CSI MasterFormat 2014 Code40 78 19
    • CSI MasterFormat 2014 TitleSwitches and Push Buttons
    • OmniClass Number23-35 37 49
    • OmniClass TitlePush Button Switches
