LG - Lattice Grille

Overview

Lattice Grilles (LG) are available in a number of standard mesh patterns and can be fabricated in steel, stainless steel, or aluminum to suit the desired strength, corrosion and finish needs.

Typical Applications

Lattice grilles are perfectly suited for retrofits, historical buildings, and applications where a thin profile is required. The thin design allows lattice grilles to cover other air distribution products to improve the aesthetic or minimize damage and tampering.

Specification

Construction Options

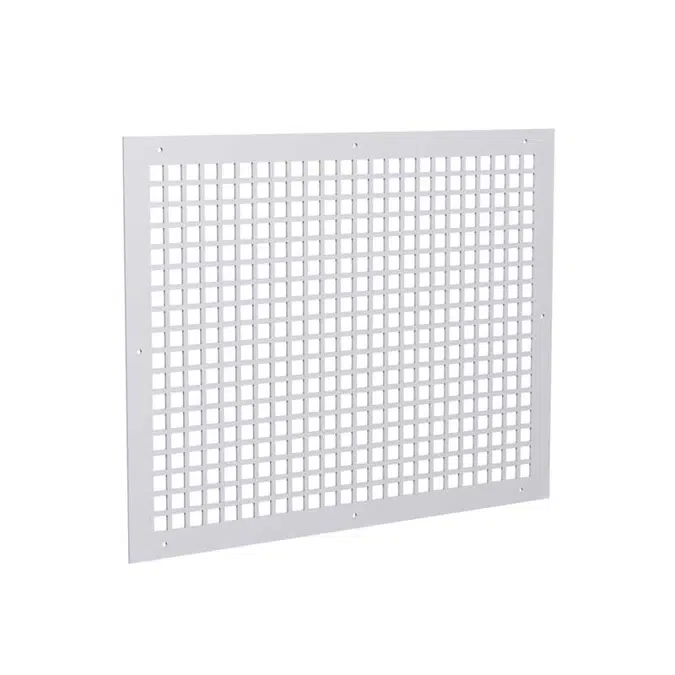

- Core Style
  - ½ in. mesh (LG50)
  - ¾ in. mesh (LG75)
  - 1 in. mesh (LG100)

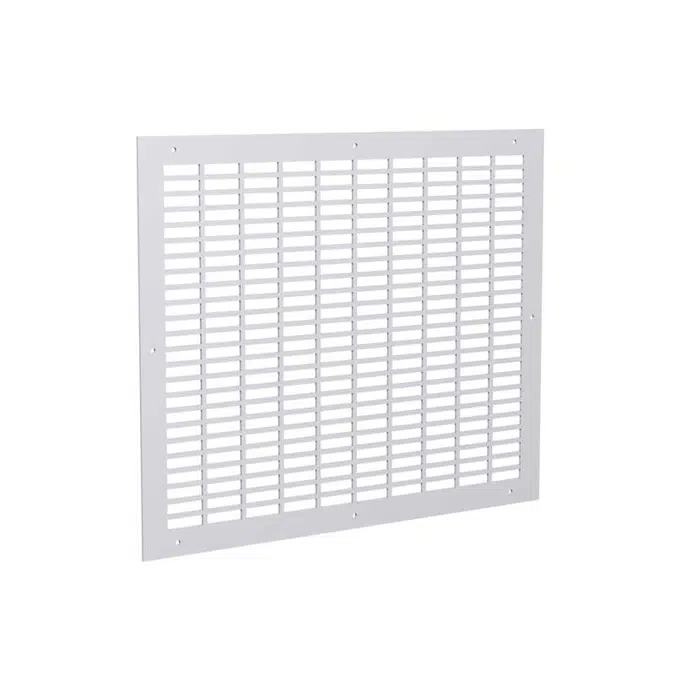

  - 2 in. x ½ in. rectangular mesh (LG250)
- Material
  - Steel - 14 gauge
  - Aluminum - 14 gauge
  - Stainless steel - 20 gauge
- Size
  - Minimum: 6 in. x 4 in.
  - Maximum (one piece): 24 in. x 96 in.
  - Oversized construction available
- Options

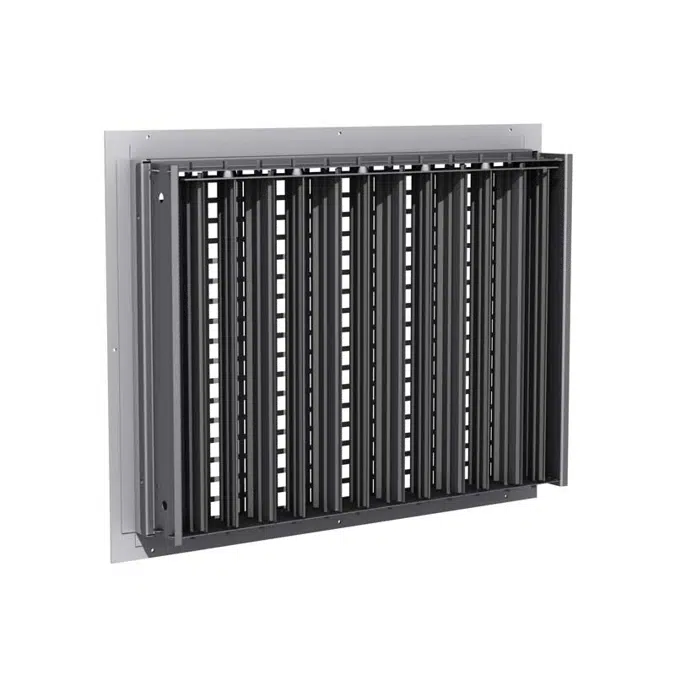

  - Integral damper
  - Heavy gauge construction
  - Custom core pattern

Technical specification

Unique ref.lg-lattice-grille
Product familyGrilles
Product groupGrilles
TypeObject (single object)
Date of publishing2025-05-05
Edition number1

Links

Product urlhttps://www.priceindustries.com/grilles/products/lg-lattice-grille
Installation instructionshttps://www.priceindustries.com/grilles/products/lg-lattice-grille
Technical descriptionhttps://www.priceindustries.com/grilles/products/lg-lattice-grille

Material mainSteel
Material secondaryAluminium

Classification

BIMobject CategoryHVAC - Ductwork
IFC classificationAir Terminal
ETIM CodeEC010633
ETIM NameDisplacement grille
Uniclass 2015 CodePr_70_65_04_03
Uniclass 2015 DescriptionAir grilles
CSI MasterFormat 2014 Code23 37 13
CSI MasterFormat 2014 TitleDiffusers, Registers, and Grilles
OmniClass Number23-33 49 23 15
OmniClass TitleSupply Air Grilles
