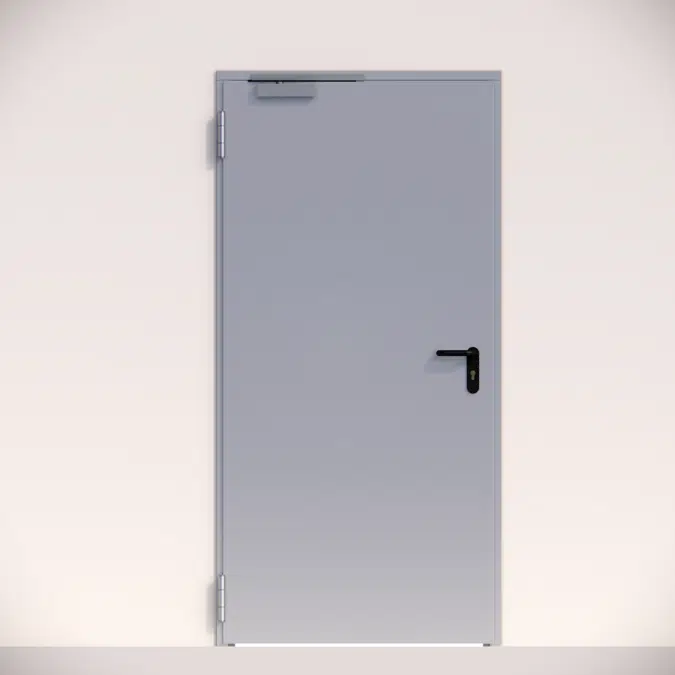

CLASSIC REVER EI2 60 C5 1 LEAF

REVER frame made of 1.2mm high resistant galvanized steel with fitting for cold smoke seal and provided with anchors and holes for plug and screw fixing.

It consists of a plate as a header and two uprights with REVER frame.

Leaf with 53mm thickness, made of galvanized steel skin pass type, filled with expansible polystyrene or bee nest.

Certified lock marked CE.

Multiuse hinge galvanized.

Optionally, certified hinge marked CE type B01 and B02.

For doors with a nominal height of 2400 mm or more, there is an additional hinge, and they become hinges type B01 and B02.

Black handle anti coupling made of PVC and patent key cylinder (cylinder for on-site use).

Separator for an easy installation.

Assemby and maintenance instructions.

Specification

Fire resistence: EI60 tested in accordance with EN1634-1
Classification to EN 13501-2
Door dimensions:
Clear Opening Width: 712, 802, 902, 1012, 1112, 1212
Clear Opening Height: 2015, 2105
Wall Opening Width: 800, 890, 990, 1100, 1200,1300
Wall Opening Height 2060, 2150
Standard color: RAL 7035
Plain (pre-painted)
Embossed and textured (painted)
