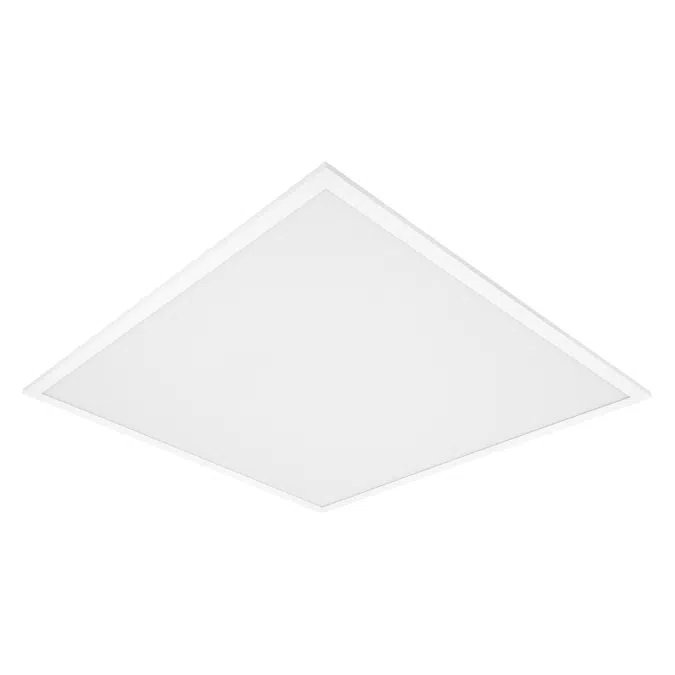

BIOLUX Tunable White Panel Gen 2
BIOLUX Tunable White Panel Gen 2
BIOLUX Tunable White Panel Gen 2
BIOLUX Tunable White Panel Gen 2
BIOLUX Tunable White Panel Gen 2
BIOLUX Tunable White Panel Gen 2
BIOLUX Tunable White Panel Gen 2
BIOLUX Tunable White Panel Gen 2
BIOLUX Tunable White Panel Gen 2
BIOLUX Tunable White Panel Gen 2
    Ledvance

    BIOLUX Tunable White Panel Gen 2


    BIOLUX HCL PANEL DALI GEN 2
    Product benefits
  • Suitable luminaire for VIVARES DALI, VIVARES DALI HCL and other DALI-2 light controls
  • Enables an individual Tunable White lighting solution in combination with compatible DALI-2 lighting controls
  • Light quality of CRI 90 supports increased well-being in HCL applications
  • 7 year system guarantee when operated in a VIVARES DALI system
  • Compatible with VIVARES CLOUD SERVICE for energy monitoring
  • Through-wiring possible with included cable clamp
  • External DALI-2 driver for extended flexibility and easy installation
  • Good glare reduction (UGR < 19)
    • Product features
  • IoT-ready luminaire with DALI-2 technology
  • Adjustable color temperature via Tunable White: 2,700…6,500 K
  • Very high color rendering index Ra: > 90
  • High quality extruded aluminum frame
  • Version available with pre-mounted Wago-connector (Item No: WAGO 771-9985/206-301) for Panel 625 CSW
  • Suitable for central battery emergency installations acc.
  • to EN 60598-2-22
    • Areas of application
  • Direct replacement for luminaires with fluorescent lamps

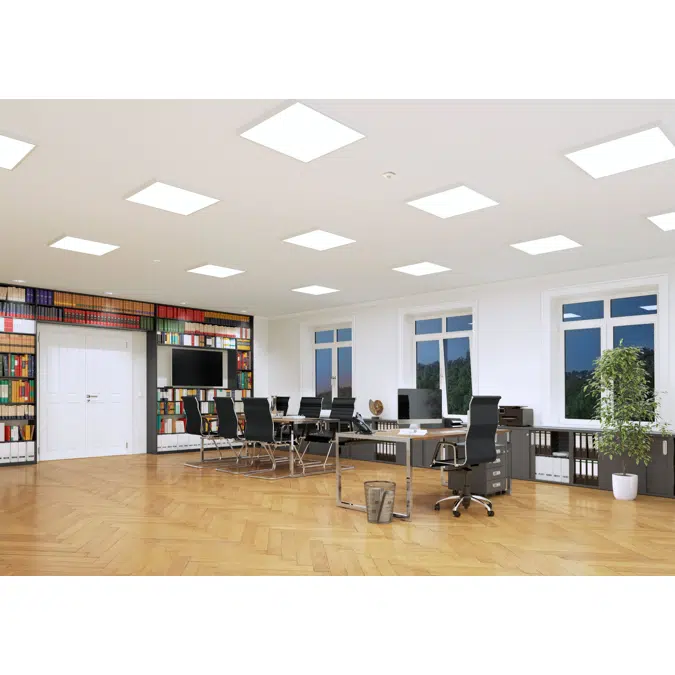

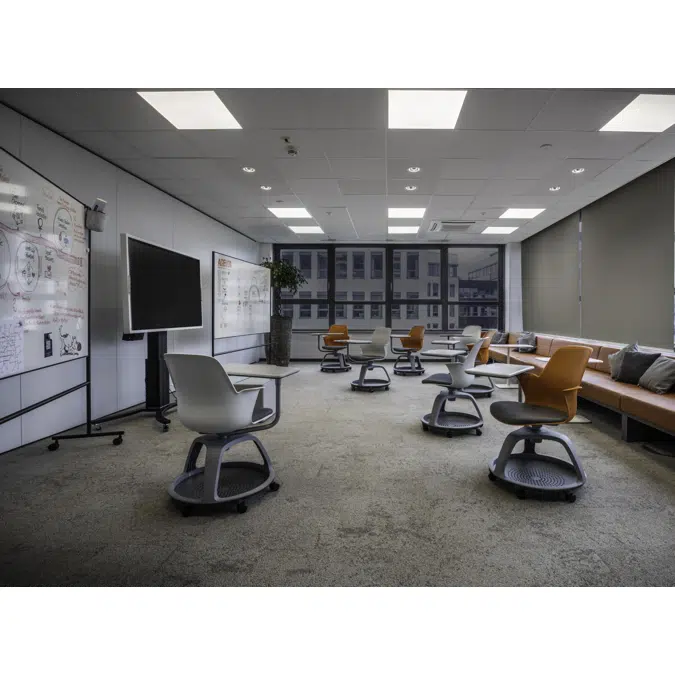

  • Offices, conference rooms
  • Reception areas, foyers and corridors

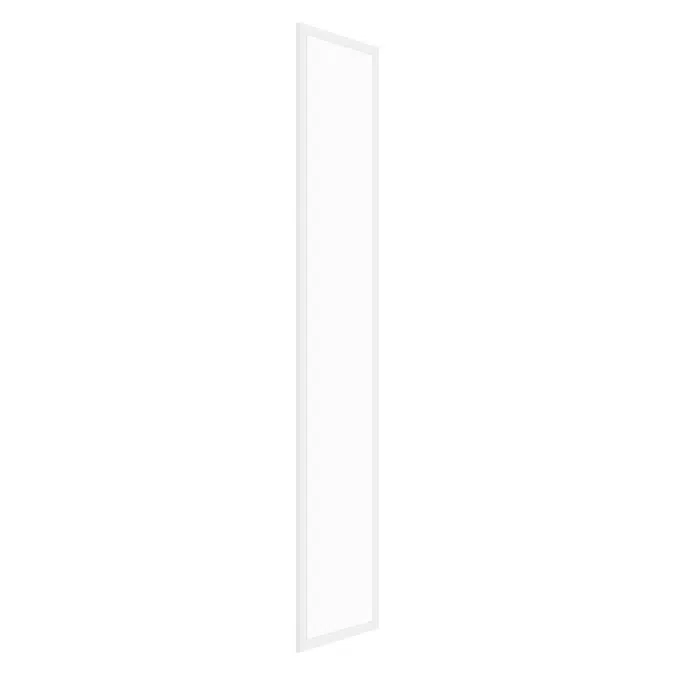

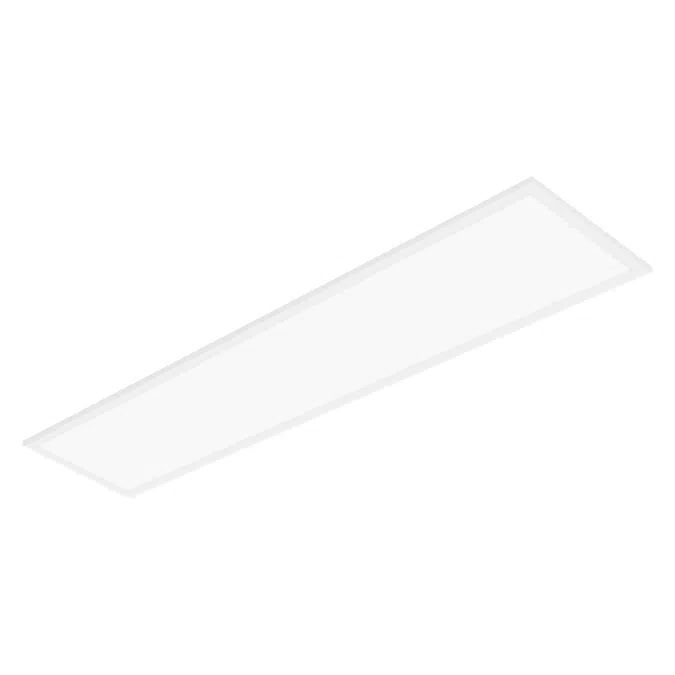

  • Available for grid size of 600 mm x 600 mm, 625 mm x 625 mm and 1200 x 300 mm
    • Equipment / Accessories
  • Accessories for several mounting options available
  • External control gear included
  • Security kit (security wire and brackets) included
  • Cable clamp for through wiring preinstalled
    • .
    BIOLUX HCL PANEL ZIGBEE GEN 2
    Product benefits
  • Suitable luminaire for BIOLUX, VIVARES and other Zigbee 3.0 light management systems for simple integration into partner systems
  • Compatible with VIVARES cloud services
  • Through-wiring possible with included connector box
  • Good glare reduction (UGR ≤ 19)
  • Low flicker light thanks to special electronic control gear
  • 7 year system guarantee when operated in a BIOLUX HCL or VIVARES ZIGBEE system
    • Product features
  • Adjustable color temperature via Tunable White: 2,700…6,500 K
  • Very high color rendering index Ra: > 90
  • Initial color consistency: 3 SDCM
  • High luminous efficacy: up to 110 lm/W
    • Areas of application
  • Available for grid sizes of 600 x 600 mm, 625 x 625 mm and 1200 x 300 mm
  • BIOLUX HCL system: Lighting solution for single office areas with up to 48 BIOLUX HCL products
  • VIVARES Zigbee system: Open-plan office solution for up to 200 BIOLUX HCL products
  • Hotel and office rooms with little daylight
  • Nursery and elderly homes
    • Equipment / Accessories
  • Connector box with 5-pole terminal included
  • External control gear included
  • LEDVANCE BIOLUX app required for commissioning of the BIOLUX HCL system only (available for Android and iOS)
  • LEDVANCE VIVARES app for project planning and required for commissioning of the VIVARES ZIGBEE system only (available for Android and iOS)
  • Accessories for several mounting options available
    • .

    For guarantee see www.ledvance.com/guarantee
    For this product family multiple variants might exist with specific properties!
    Please refer to the specification text where each product url is listed.
    Older generations of a product family can be accessed at our website https://www.ledvance.com.
    You need to use Revit 2021 or higher to use our Revit files.
    Contact: bim@ledvance.com
    Specification

    • Please note that the provided Revit-file can be valid for a product family!
      To access further product information, please follow the attached list of EAN-GTIN numbers.

      Product EAN-GTIN list:

      4099854140068 BIOLUX HCL PL 600 S 40W TW DALI LEDV
    • Catalog:
      • https://www.ledvance.com/shortlink/4099854140068

      4099854140167 BIOLUX HCL PL 625 S 40W TW DALI LEDV
    • Catalog:
      • https://www.ledvance.com/shortlink/4099854140167

      4099854140228 BIOLUX HCL PL 1200 S 40W TW DALI LEDV
    • Catalog:
      • https://www.ledvance.com/shortlink/4099854140228

      4099854140273 BIOLUX HCL PL 625 S 40W TW CSW DALILEDV
    • Catalog:
      • https://www.ledvance.com/shortlink/4099854140273

      4058075724549 BIOLUX HCL PL 600 S 40W TW ZB LEDV
    • Catalog:
      • https://www.ledvance.com/shortlink/4058075724549

      4058075724563 BIOLUX HCL PL 625 S 40W TW ZB LEDV
    • Catalog:
      • https://www.ledvance.com/shortlink/4058075724563

      4058075724587 BIOLUX HCL PL 1200 S 37W TW ZB LEDV
    • Catalog:
      • https://www.ledvance.com/shortlink/4058075724587
    Technical specification
    • Unique ref.Biolux-Tunable-White-Panel
    • Product familyProfessional luminaires
    • Product groupBIOLUX
    • TypeObject (single object)
    • Date of publishing2023-11-07
    • Edition number1
    Links
    Related
    • Material mainAluminium
    • Manufactured inChina
    Classification
    • BIMobject CategoryLighting - Other
    • ETIM CodeEC002892
    • ETIM NameCeiling-/wall luminaire
