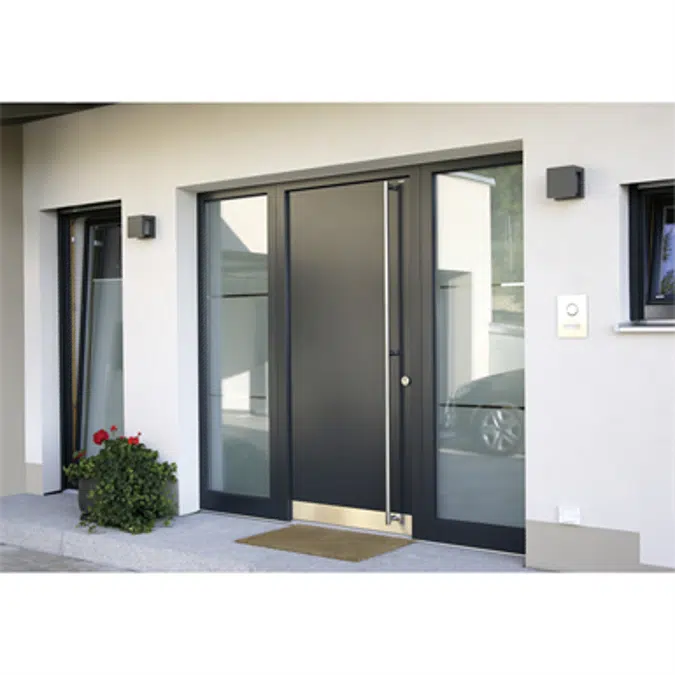

WICSTYLE 75 evo - Door

With 75 mm profile depth, WICSTYLE 75 evo puts itself ahead in terms of thermal insulation and physical features. Its outstanding technical performance and application range make it the ideal door solution for all current and future requirements in architecture, both in new buildings and in renovations. System test results / CE product pass in accordance with DIN EN 14351-1:2006+A1:2010 Air permeability: Until Class 4 Watertightness: Until 7A Resistance to wind load: Class C2 Acoustic performance: Rw (C; Ctr) until 43 (–2; –5) dB Operating forces: Class 2 Load bearing capacity of safety devices: Fulfilled Mechanical strength: Class 3 Repeated opening / closing: Class 7 (500,000 cycles) Impact resistance: Class 1 Behaviour between different climates: Until class 2(e) 2(d) Burglar resistance: RC1N, RC2N, RC2, RC3 Quality assurance: Certified according to ISO 9001:2008 Environmental management: Certified according to ISO 14001

Specification

TECHNICAL PERFORMANCE: Profile technology: - High insulation multi-chamber system in symmetric design, quality assured thermal insulator connection - For single and double leaf hinged doors - For inward and outward opening - For glass or panels with infill thickness from 6 mm to 60 mm - Various threshold profiles with or without thermal break, also barrier free - Fanlights, lateral glazings fixed or opening in combination with WICLINE evo window series Thermal insulation: - Uf values: from 1.6 to 1.8 W/(m²K), without foam inserts Fittings: - Butt hinge - Screwed hinge - Concealed hinge* - Leaf sizes (w x h): 1200 mm x 2520 mm - Max. leaf weight: until 200 kg, for bullet resistance with additional hinges until 400 kg Additional designs: - Double action doors - Integration frame for stick façades - Burglar resistance in classes RC1 to RC3 - Bullet resistance in class FB4 - Leaf overlapping infill on one side or on both sides

Technical specification

Unique ref.WICSTYLE_75_EVO_D
Product familyDoors
Product groupDoors 65/75 evo
TypeObject (single object)
Date of publishing2016-05-23
Edition number2
Height (mm)2520
Width (mm)1200
Depth (mm)75

Links

Product urlhttp://www.wicona.com/en/uk/Range-of-systems/Doors/Hinged-doors/System-depth-75-mm/
Instruction videohttps://www.youtube.com/watch?v=vWV4-hQG3A8&feature=youtu.be

Material mainAluminium
Material secondaryGlass
Designed inGermany
Manufactured inGermany

Classification

BIMobject CategoryDoors - Swing Doors
IFC classificationWindow
UNSPSC nameWindows
UNSPSC code301716
