Artline - Slider - Door

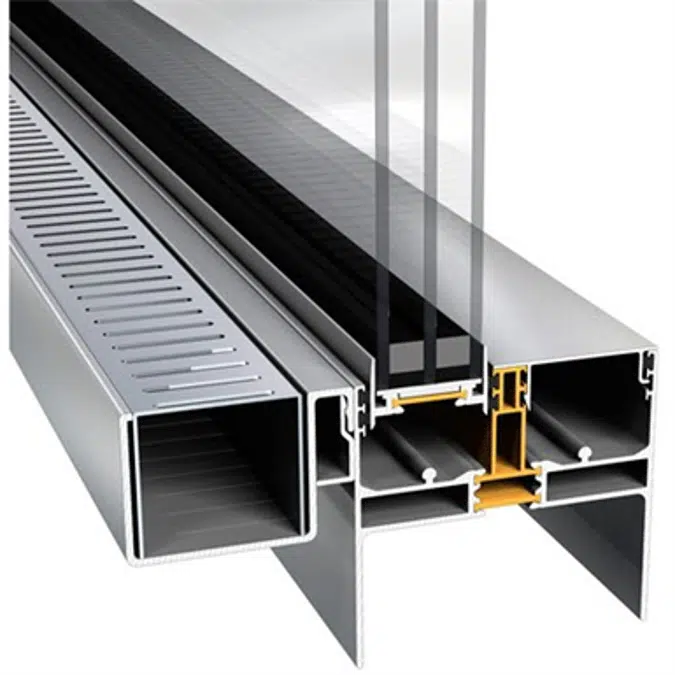

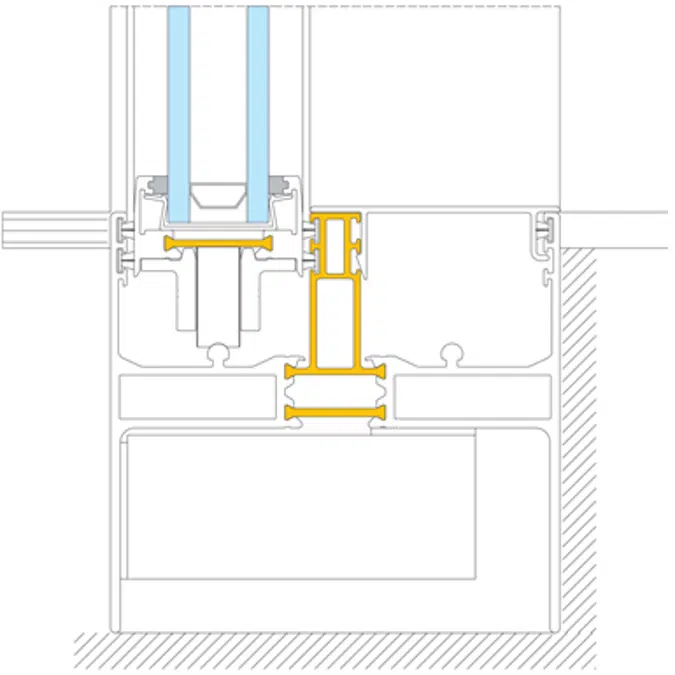

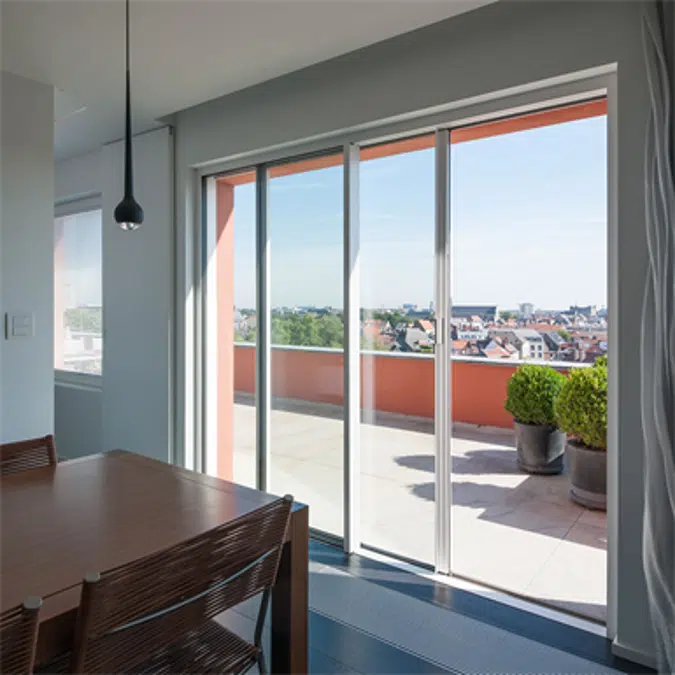

Artline’s sophisticated minimalist design, creates a light and fluid appearance even for large fix and openable windows. Artline is art with a purpose-quality, lightness and confort. Artline creates a floor to ceiling glass wall which can easily be opened and closed to let the outside come in. Artline’s impressive sizes, coupled with a minimal visible frame,allow building interiors to be flooded with light. Artline sliding system accommodates fillings of 28-30mm or 40-42mm Artline’s min. sightline of the interlocking profiles: 26 or 38 mm Artline is equiped with quadruple synthetic or inox weels with dustproof ball-bearing. • Vent weight up to 320 kg • 3 meters high without reinforcement • Quadruple synthetic or stainless-steel wheels, dustproof ball bearing • Building depth frame: 125 mm • Vent depth: 47 mm • Max. glazing vent: 42 mm • Minimalistic design • Complies with marking • Burglary resistance class RC2

Specification

Air permeability EN12207: Class 4 Watertightness : E750 Windresistance EN12210: C3 Forced entry resistance ENV 1627 – 1630 : Class 2 Thermal insulation: EN ISO 10077-2: Uw (Ug = 0,7 / Ψ = 0,051) : 1,18 W/m²K Uw (Ug =0,5 / Ψ = 0,039) : 0,98 W/m²K

Technical specification

Unique ref.Artline
Product familyWindows & Doors
Product groupAluminium Windows
TypeObject (single object)
Date of publishing2016-09-15
Edition number1
Height (mm)3000
Width (mm)2800
Depth (mm)125

Material mainAluminium
Designed inBelgium
Manufactured inBelgium

Classification

BIMobject CategoryWindows - Opening Slide
IFC classificationWindow
UNSPSC nameWindows
UNSPSC code301716
Uniclass 2015 CodeEF_25_30
Uniclass 2015 DescriptionDoors and windows
ProductPage.DetailedInfo.Classifications.COBIetypeCategoryWindows
CSI MasterFormat 2014 Code08 51 13
CSI MasterFormat 2014 TitleAluminum Windows
OmniClass Number23-17 13 00
OmniClass TitleWindows
CSI UniFormat II CodeB2020
CSI UniFormat II TitleExterior Windows

Region availability

Asia	Europe
Iraq	Belgium
Israel	France
Jordan	Ireland
Kuwait	Luxembourg
Lebanon	Netherlands
Oman	Portugal
Palestine	United Kingdom
Qatar
Saudi Arabia
Syria
Türkiye
United Arab Emirates
Yemen
