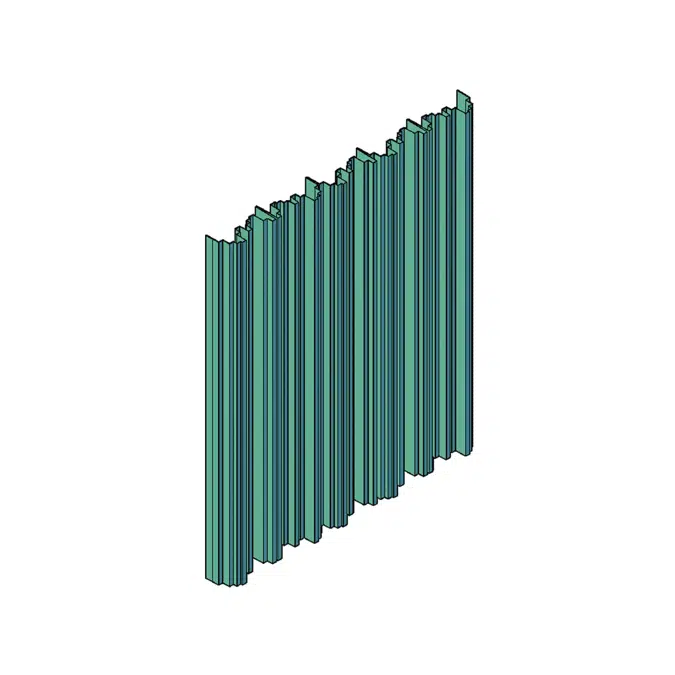

Optistep™ G Acoustic Sound Diffuser

The Optistep^TM G Panel is a 1-dimensional sound diffuser developed to expand the product line anchored by the classic QRD^® 734 – the first product of its kind offered on the market. With its unique design, which does not rely on the traditional dividers between each well, the Optistep^TM G Panel has been designed to offer optimal diffusion bandwidth. Constructed of heavy, non-combustible glass fiber reinforced gypsum (GFRG), RPG’s Optistep^TM G Panel provides superior acoustic performance over similar lightweight gel-coated options by other manufacturers.

Features

Multiple unit arrays can be sequence optimized for further improvement in scattering.
Standard sizes available are 16″ W x 23-5/8″ or 47-1/4″ L x 8″ D.
Choose from any commercially available paint color.
Stable, non-combustible acoustical glass reinforced gypsum is an excellent choice for commercial projects and offers LEED points.

Specification

Finish - Available in a natural/raw GFRG finish to be painted on-site or factory color-matched to any paint color specification.
Product Material Composition - Glass Fiber Reinforced Gypsum (GFRG)
Product Acoustic Function - Diffusion
Product Fire Rating - Non-Combustible
Weight PSF - 4.00
Installation - The Optistep^TM G Panel is designed to be surface, flush or cavity mounted to walls or ceilings with RPG provided cleats secured to blocking supplied by others. They can be installed singularly or in an array across walls and ceilings.

Technical specification

Unique ref.optistep-g
Product familyArchitectural Acoustics
Product groupDiffusion
TypeObject (single object)
Date of publishing2024-03-04
Edition number1

Links

Product urlhttps://www.rpgacoustic.com/product/optistep-g/
Installation instructionshttps://www.rpgacoustic.com/product/optistep-g/#resources-section
Product certificationhttps://www.rpgacoustic.com/product/optistep-g/#resources-section
Technical descriptionhttps://www.rpgacoustic.com/wp-content/uploads/2022/06/Optistep-G-Data-Sheet.pdf

Material mainGypsum
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryBuilding Materials - Acoustic Panels & Accessories
IFC classificationFurnishing Element
ETIM CodeEG017960
ETIM NameFurniture
Uniclass 2015 CodeSs_25_25_05
Uniclass 2015 DescriptionAcoustic panel systems
CSI MasterFormat 2014 Code09 84 00
CSI MasterFormat 2014 TitleAcoustic Room Components
OmniClass Number23-15 13 19 35
OmniClass TitleAcoustical Wall Treatment
