Rockfon

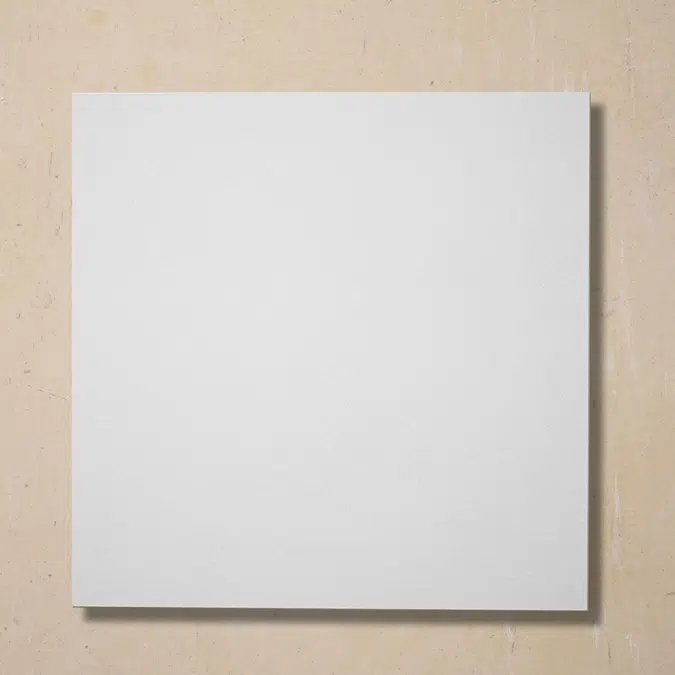

Rockfon® Sonar®

Rockfon® Sonar® offers an aesthetic white, micro-textured surface. Due to its highest class A sound absorption and highest reaction to fire class A1 it is the product of choice for demanding interiors.

A full range of dimensions and edge options offers the complete freedom of design

Rockfon® Sonar® is easy to clean with a vacuum and damp cloth resulting in lower maintenance and cleaning costs

Specification

Sound Absorption	αw: up to 1.00 (Class A)
Reaction to Fire	A1 (EN 13501-1)
Light Reflection and Diffusion	85%
Humidity and Sag Resistance	Up to 100% RH. No visible deflection in high humidity.
Cleaning	• Vacuum • Damp cloth Chemical resistance: Resistant to diluted solutions of: – Ammonia – Chlorine – Hydrogen peroxide
Hygiene	Stone wool provides no sustenance to microorganisms.
Clean Room Classification	ISO Class 5
Environment	Fully recyclable stone wool
Indoor Environment	A selection of Rockfon products have been awarded: • Finnish M1 emission classification for building materials • Danish Indoor Climate Label for low-emission products
Impact Resistance	Class 3A (with fastening clip) The impact resistance of Rockfon Sonar with edge Z or M, mounted with fastening clips, has been tested in accordance with EN 13964 – Annex D and approved as Class 3A.

Technical specification

Unique ref.rockfon-sonar
Product familySuspended Ceilings
Product groupSonar
TypeBuilding Material
Date of publishing2021-01-07
Edition number1

Links

Product urlhttps://rockfon.link/product-rockfon-sonar
Technical descriptionhttps://rockfon.link/sonar-datasheet

Material mainStone Wool
Designed inDenmark

Classification

BIMobject CategoryConstruction - Ceilings
IFC classificationCeiling
UNSPSC nameAcoustic ceiling tiles
UNSPSC code30161601
Uniclass 2015 CodeSs_30_25_22
Uniclass 2015 DescriptionDemountable suspended ceiling systems
CSI MasterFormat 2014 Code09 51 00
CSI MasterFormat 2014 TitleAcoustical Ceilings
OmniClass Number23-15 13 21
OmniClass TitleCeiling Panels
