Store Vertical Extérieur Ambio

Find in the section « Download » every usefull informations for your project : technical drawings, data sheet, notice, downloading procedure of the « Vent & Volet » mobile app, argumentary of the connected general remote control Calyps’HOME®.

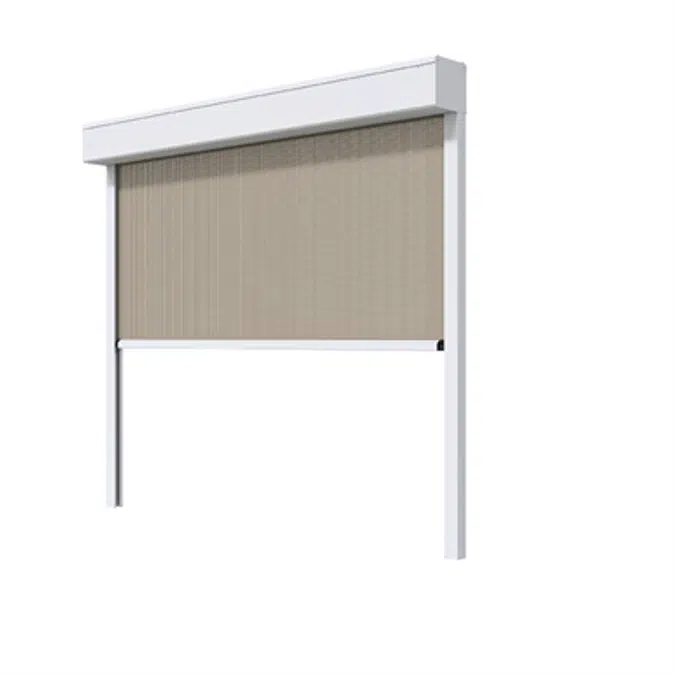

Connected Outdoor Vertical Blinds - Decarbonated contributor for buildings (reduced energy consumption and summer comfort) - Guarantee of glazing clarity for more light

Energy performance :
- Composite material canvas type textile Soltis Horizon 86 from the company Ferrari ®.
23 colors at the choice of the architect
- Up to 85% of heat blocked outside
- Minimum clearance on the glazing: small box (90) and fully retractable box-closing load bar
- Self-supporting structure, no other fixation for the slides is necessary
- Exclusive Enduro chassis tested over 14,000 cycles (40 years of operation with one ascent and descent / day)
- Slotted holes in the guide rails, ideal for perfect alignment of the fabric.
- Telescopic ends of the load bar (little risk of coming out into the wind)
- Possibility of recovering 4 mm of play-free width at the time of installation.
- Option without box for integration in a reservation

To know : Compatibility with a Calyps'HOME connected general control (sold as an option) to close the shutters at the same time with a single button, even remotely. Compatibility also with the BMS (Building Management System).

POSE CASE

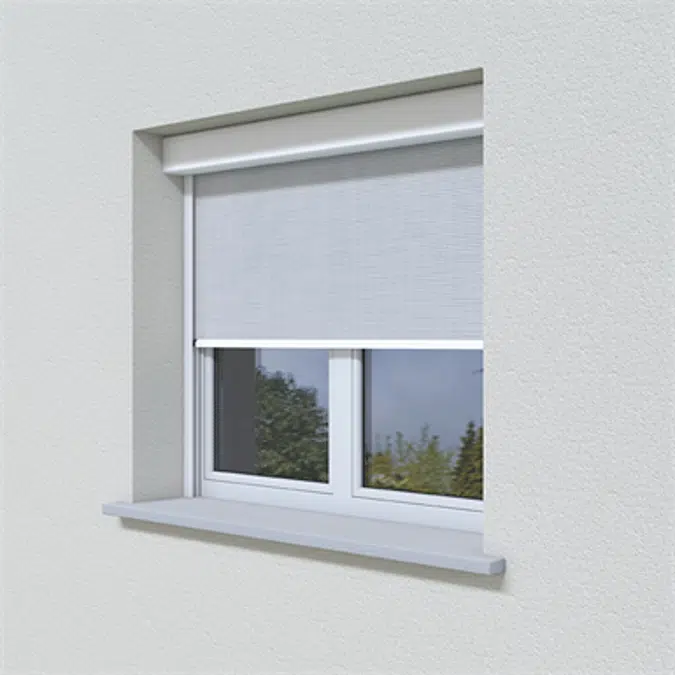

Installation WITHOUT Reservation
Traditional construction with insulation from the inside or outside, under lintel or surface-mounted (laying on brackets)
Also possible in Wood Frame Houses
