Tactile Strip/rivet STAINLESS STEEL
Tactile Strip/rivet STAINLESS STEEL
Tactile Strip/rivet STAINLESS STEEL
Tactile Strip/rivet STAINLESS STEEL
    MATTING

    Tactile Strip/rivet STAINLESS STEEL

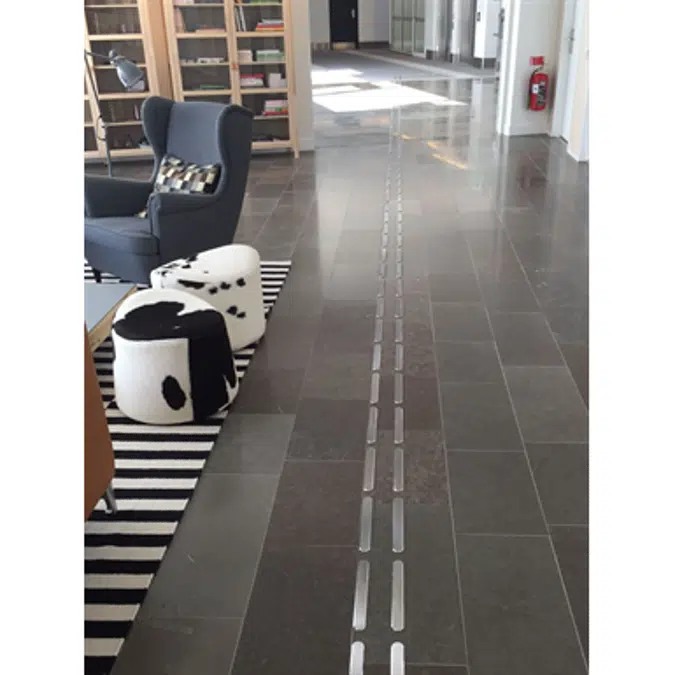

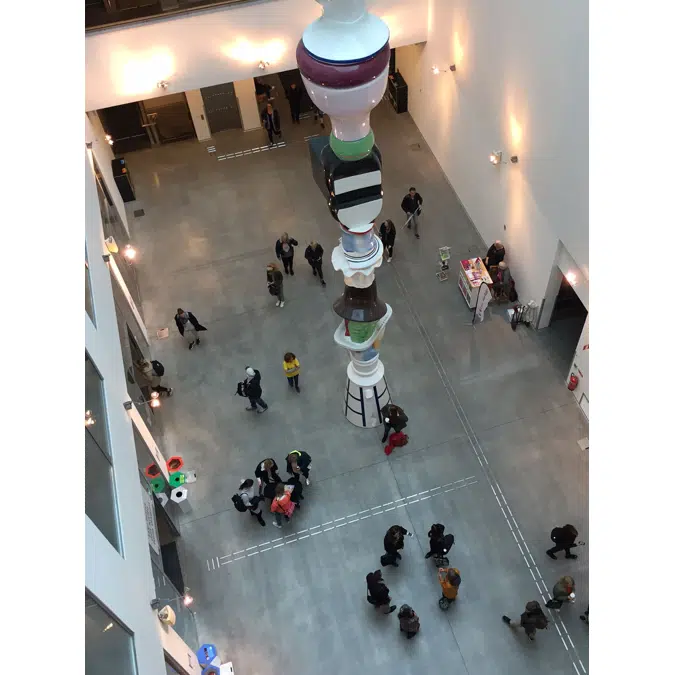

    Milling is used to create the Matting tactile strip Stainless steel. Strips are installed with specific spacing to guide the visually impaired. Installation is performed by drilling into the substrate, three holes per strip and one hole per rivet. A template is used for hole placement. Fasteners are secured using the recommended adhesive, which is applied in the drilled holes. If you do not want to drill into the substrate, strips and rivets without fasteners are also available for bonding or applying tape.

    Available in a height of 3-5 mm. Please contact us if you would like a special version, or if you need any help with installation.


    Specification
    • Surface: LINE (NCS 0,37), DIMAOND (NCS 0,47) or SMOOTH (NCS 0,85)

      Material: Stainless steel 316L, acid-proof.

      Strip: 280 x 35 x 3 mm / 280 x 35 x 5 mm

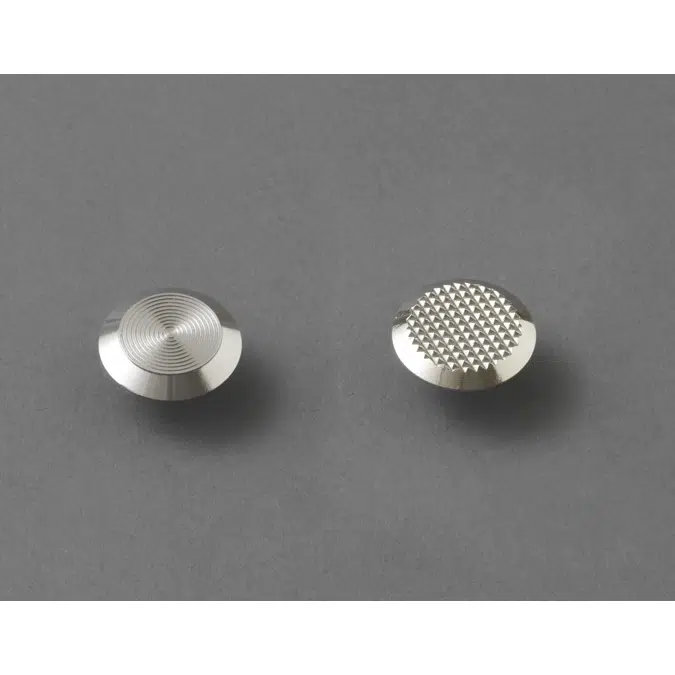

      Rivet: Ø35 x 3 mm / Ø35 x 5 mm

      Avalible with or without fastener or with tape

      BVB ID: 54988

      https://www.byggvarubedomningen.se

      https://www.sundahus.se

      tactile, accessibility, sundahus, brass, stainless steel, bronze, sorten, byggvarubedömningen, tactile flooring, matting, guidance systems, sundahus, byggvarubedomningen, accessibility for all, iso23452, iso23599. tacile surface, twsi, walking indicators, visual indicators, accessable entrances, contrast, bvb

    Technical specification
    • Unique ref.diamond-line
    • Product familyFloor guidance
    • Product groupMat
    • TypeAssembly (multiple objects)
    • Date of publishing2020-08-10
    • Edition number1
    • Height (mm)5
    • Width (mm)280
    • Depth (mm)35
    Related
    • Material mainStainless steel 316
    • Designed inSweden
    • Manufactured inSlovakia
    Classification
    • BIMobject CategoryFlooring - Other
    • Uniclass 2015 CodePr_35_90_31_29
    • Uniclass 2015 DescriptionFloor cover strips

    Region availability

    Europe
    Denmark
    Finland
    Iceland
    Norway
    Sweden
