Tactile Strip/rivet Brass

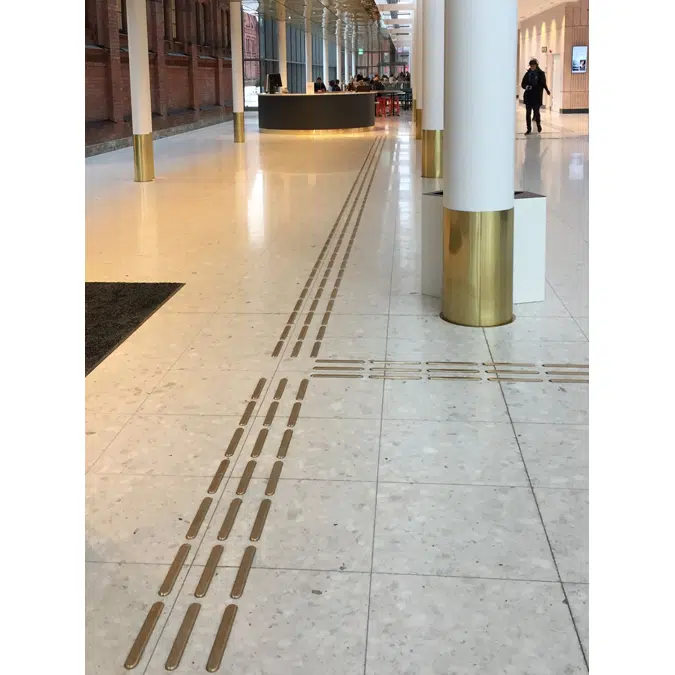

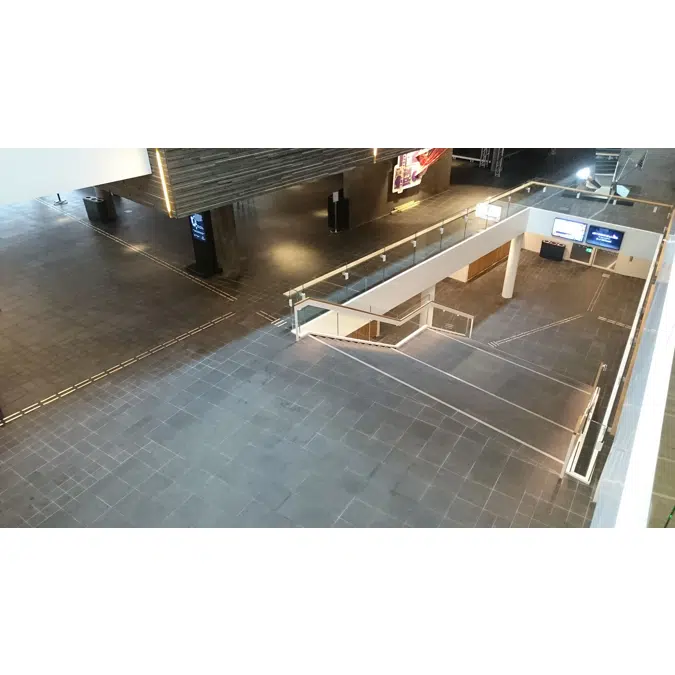

Milling is used to create the Matting tactile strip Brass. Strips are installed with specific spacing to guide the visually impaired. Installation is performed by drilling into the substrate, three holes per strip and one hole per rivet. A template is used for hole placement. Fasteners are secured using the recommended adhesive, which is applied in the drilled holes. If you do not want to drill into the substrate, strips and rivets without fasteners are also available for bonding or applying tape.

Specification

Surface: LINE (NCS 0,47) or SMOOTH (NCS 0,51)
Material: Brass
Strip: 280 x 35 x 3 mm / 280 x 35 x 5 mm
Rivet: Ø35 x 3 mm / Ø35 x 5 mm
Avalible with or without fastener or with tape
BVB ID: 56741
