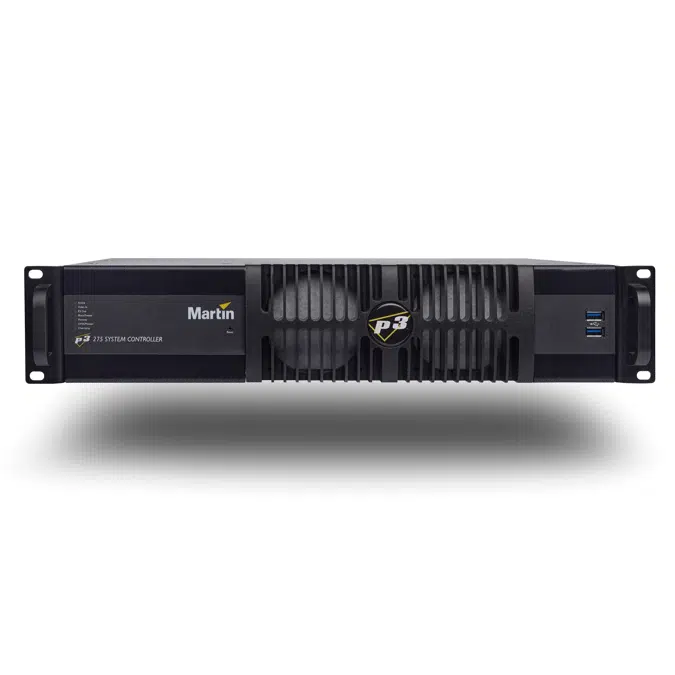

P3-275 System Controller

NEXT-GENERATION P3 SYSTEM CONTROLLER FOR LARGE APPLICATIONS

The Martin P3-275 System Controller supports video input up to DCI 4K (4096x2160) and is intended for bigger shows spanning larger stages with higher fixture quantities. It is also ideal for bridges and large buildings that typically need a larger workspace. This Controller allows Martin fixtures to be easily controlled from a lighting desk, video source or a mix of both. They integrate with third-party software by importing and exporting industry-standard MVR files, eliminating duplicate actions and enabling designs to be easily shared.

Uniquely creative looks can be created for each application, whether using video content, traditional DMX controls, Art-Net / sACN PixelMapping, or a mix of control methods.

The entire system is fully synchronized, ensuring all elements work cohesively without visible latency. They support DCI 4K video input over HDMI and NDI inputs, and output up to 1,040,000 pixels to up to 6,000 fixtures. Real-time previews show you how DMX controls and video will be rendered on the fixtures.

Specification

FEATURES
- DCI 4K video input compatible (HDMI & NDI)
- HDMI input resolution up to 4096 x 2160
- NDI input resolution up to 4096 x 2160
- 1,024 universes of Art-Net / sACN input
- Outputs up to 1,040,000 pixels on 6,000 fixtures
- 2U rackmount
- Map a mix of Martin fixtures onto one visual canvas
- Patch, address and configure Martin fixtures, without having to directly address and configure each fixture
- Export mapping and patch to third-party lighting controllers, CAD programs and visualizers via MVR
- Import mapping and patch from third-party lighting controllers, CAD programs and visualizers via MVR
- Export mapping mask to third-party media servers
- Provides real-time feedback and monitoring of Martin fixtures
- Provides remote monitoring of the P3 System Controller and all connected fixtures without physically being onsite
SPECIFICATIONS
PHYSICAL
Width: 482.6 mm (19.0 in.)
Height: 88.90 mm (3.50 in.) (rackmount 2U)
Depth: 407.0 mm (16.0 in.)
Weight: 7.0 kg (15.4 lbs.)
CONTROL/USER INTERFACE
User Interface: Full HD (1920x1080) or better monitor (VGA, DVI, HDMI or DP), USB keyboard & USB mouse
Device Status: Status indication LEDs
HDMI VIDEO INPUT
Standard: HDMI 2.0
Resolution: Supporting all standard resolutions up to 4096x2160 (DCI 4K)
Framerate: Supporting frame rates up to 75fps
Scan: Progressive & Interlaced
EDID: Customizable via user interface
Colour Depth: 8/10/12-bit
Colour Sampling: RGB 4:4:4, YCbCr 4:4:4 & YCbCr 4:2:2
Colour Formats: RGB, YCbCr 601, YCbCr 709 & YCbCr 2020
NDI VIDEO INPUT
Standard: NDI
Resolution: Supporting all standard resolutions up to 4096x2160 (DCI 4K)
Framerate: Supporting frame rates up to 75fps
VIDEO PROCESSING
Controller pixel processing capacity: 1,040,000 pixels (expandable by adding P3-275s)*
Controller fixture capacity: 6,000 fixtures (expandable by adding P3-275s)*
Maximum workspace area: 8,847,360 pixels
Maximum active capture area: 8,847,360 pixels
System processing depth: 16 bits per color (48 bits per pixel)
System latency: 2 frames
Latency between first and last fixture: None
Scaling: Yes, global and mixed pixel pitch
Gamma Curve Control: Yes, adjustable
Image Control Parameters: Hue, Saturation, Brightness, Contrast, Lowlight & Gain
Mapping: Real-time
Colour Temperature Control: Real-time
Colour Space Control: Real-time
Preview: Real-time (incoming video & mapping onto fixtures)
*See also P3 System Controller Capacity Info Note on Downloads page
DMX CONTROLS
Up to 1,024 universes of Art-Net or sACN input*
Control of intensity and colours
Control of colour temperature
Merge video input with DMX controls towards fixtures
Cross-fade or toggle between video and DMX controls
Freeze, blackout or activate testpatterns on video engine
Recall video presets (video settings, fixture positions and more)
*See also P3 System Controller Capacity Info Note on Downloads page
MOTION CONTROLS
One universe of Art-Net, sACN or Kinesys K2 input*
Compatible with Kinesys K2/Vector, Tait Navigator and others
Control fixture or group position on video canvas
Control fixture or group rotation on video canvas
*See also P3 System Controller Capacity Info Note on Downloads page
P3 SIGNAL PROTOCOL
Signal type: Gigabit Ethernet
Protocol : Proprietary Martin P3
Hot pluggable: Yes, electrically isolated at all connections
Cable type: Ethernet, shielded, Cat 5e or better
Cable length: Up to 100 m between any 2 devices, extendable with Ethernet switch
Maximum number of fixtures per daisy-chain: 50, extendable with Ethernet switch
CONSTRUCTION
Housing: Steel and aluminium
Color: Matte black
Protection rating: IP20
INSTALLATIONMounting: 19" rackmount (2U) or free-standingLocation: Indoor or outdoor protected from elementsOrientation: Horizontal onlyCONNECTIONS

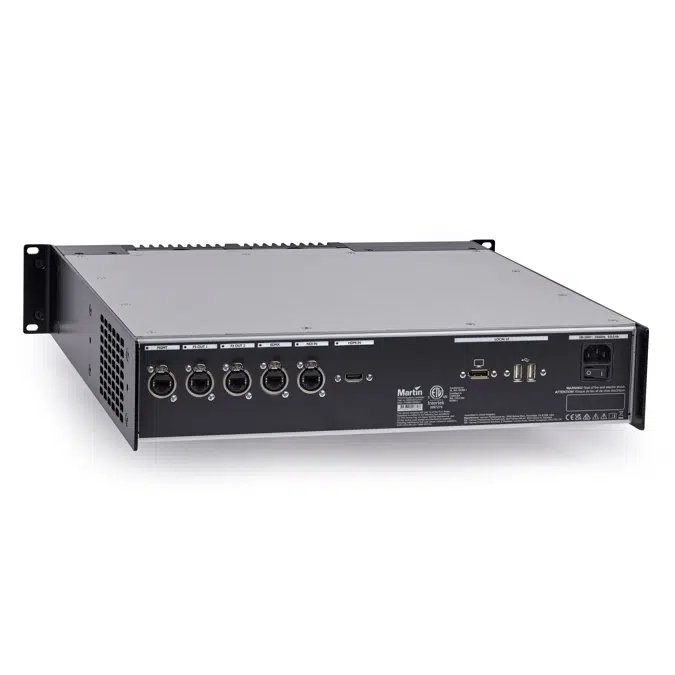

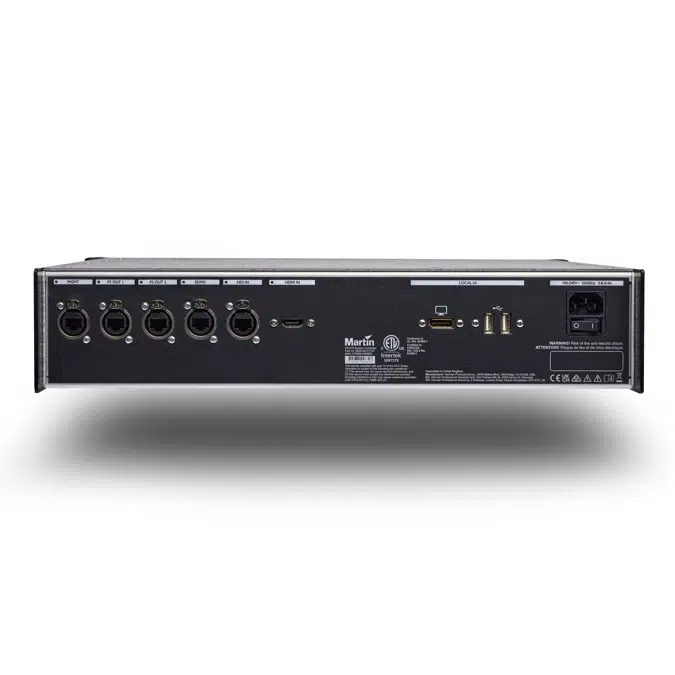

Power input: IEC socket with integrated power switch
P3 data in/out: 2x etherCON socket (100/1000Mbit)
EtherDMX Network (Art-Net, sACN and Kinesys K2/Vector): 1x etherCON socket (100/1000Mbit)
Management Network (remote management, syslog and webserver): 1x etherCON socket (100/1000Mbit)
NDI Video In: 1x etherCON socket (100/1000Mbit)
HDMI Video In: HDMI 2.0
Peripherals and USB memory devices: 2 x USB 2.0 ports and 2x USB 3.0 ports
User interface monitor: DisplayPort++ (compatible with adapters to DVI, HDMI and VGA, not supplied)
ELECTRICAL
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 28 A
Typical earth-leakage current: 0.50 mA
Power Factor: 0.98 @ 100 V / 120 V , 0.93 @ 208 V / 230 V / 240 V
Max current draw: 1.90 A @ 100 V / 120 V , 0.95 A @ 208 V / 230 V / 240 V
Typical current draw: 0.46 A @ 100 V / 120 V , 0.23 A @ 208 V / 230 V / 240 V *
Power Consumption
Maximum: 190 W
Typical: 46 W *
Idle: 30 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: machine running at full P3, Art-Net/sACN and Video Input capacity.
Idle: no showfile loaded.
THERMALCooling: Filtered forced air (temperature-controlled fans)Maximum ambient temperature (Ta max.): 50° C (122° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Typical heat dissipation (calculated, +/- 10%): 157 BTU/hr.ENVIRONMENTALRoHS: CompliantREACH: CompliantWEEE: CompliantProposition 65: CompliantAPPROVALSEU safety: EN 62368-1EU EMC: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3US safety: UL 62368-1Canadian safety: CSA C22.2 No. 62368-1Australia/NZ: RCMUnited Kingdom: UKCAIndia: BIS (pending)INCLUDED ITEMS
Safety Guide
Quick Start Guide
EU-type power cable with Schuko connector
US-type power cable
UK-type power cable
RELATED ITEMS
Martin P3-175 System Controller: P/N MAR-90721100
Martin P3-PC System Controller: Free download from www.martin.com
ORDERING INFORMATION
Martin P3-275 System Controller: P/N MAR-90721101

Technical specification

Unique ref.p3-275-system-controller
Product familyAccessories
Product groupSystem Controller
TypeObject (single object)
Date of publishing2024-04-12
Edition number1

Links

Product urlhttps://www.martin.com/en-US/products/p3-275-system-controller
Technical descriptionhttps://www.martin.com/en-US/site_elements/p3-275-system-controller-spec-sheet

Classification

BIMobject CategoryLighting - Other
OmniClass Number23-27 15 21
OmniClass TitleBuilding Lighting Controls
