ELP PAR, Static RGBW LED Par Fixture with Zoom
ELP PAR, Static RGBW LED Par Fixture with Zoom
ELP PAR, Static RGBW LED Par Fixture with Zoom
ELP PAR, Static RGBW LED Par Fixture with Zoom
ELP PAR, Static RGBW LED Par Fixture with Zoom
ELP PAR, Static RGBW LED Par Fixture with Zoom
ELP PAR, Static RGBW LED Par Fixture with Zoom
ELP PAR, Static RGBW LED Par Fixture with Zoom
    Martin

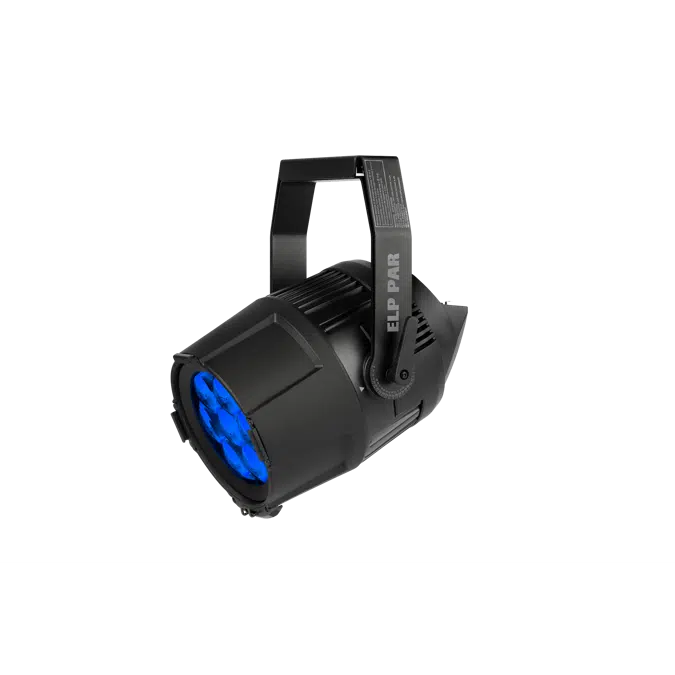

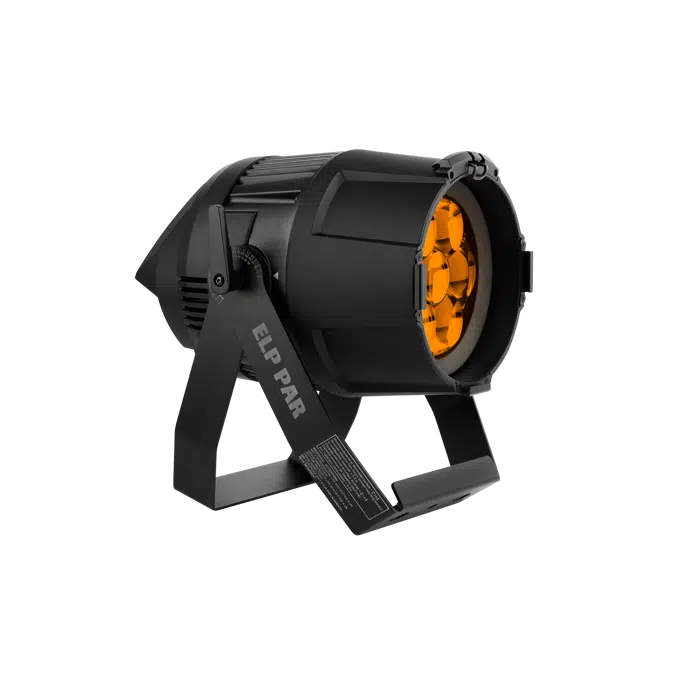

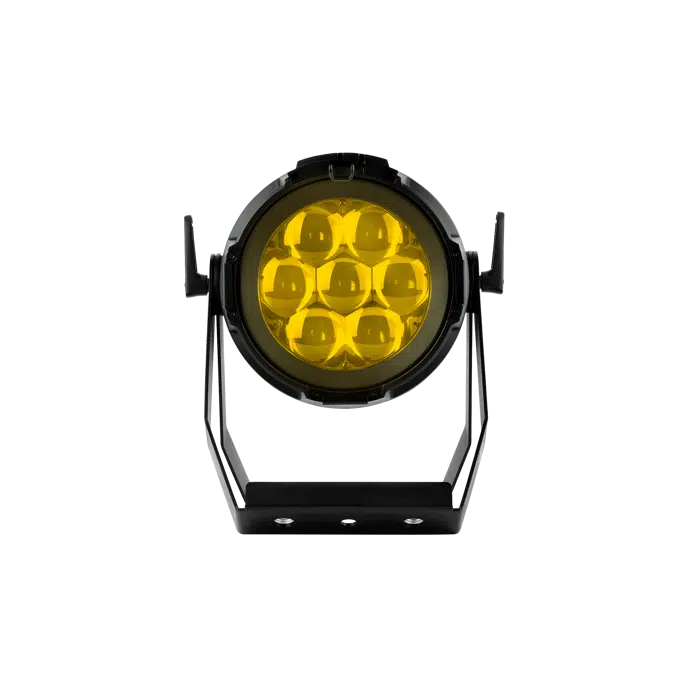

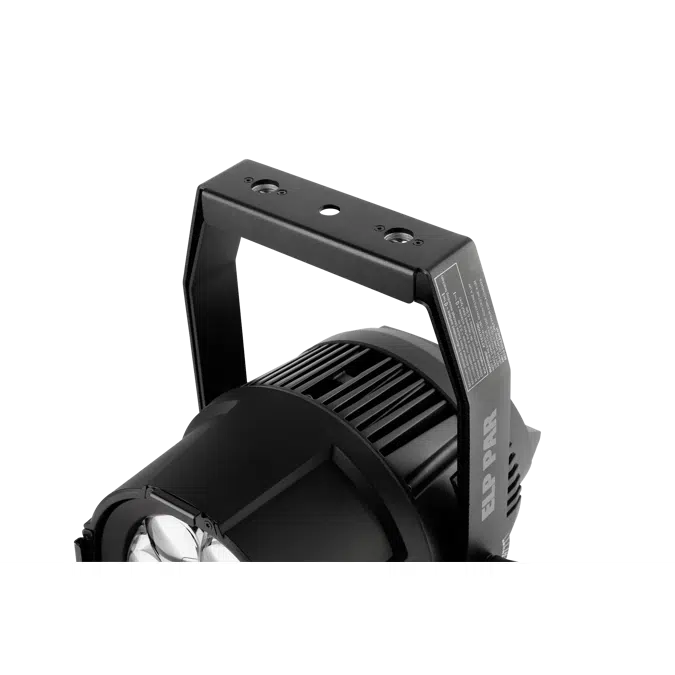

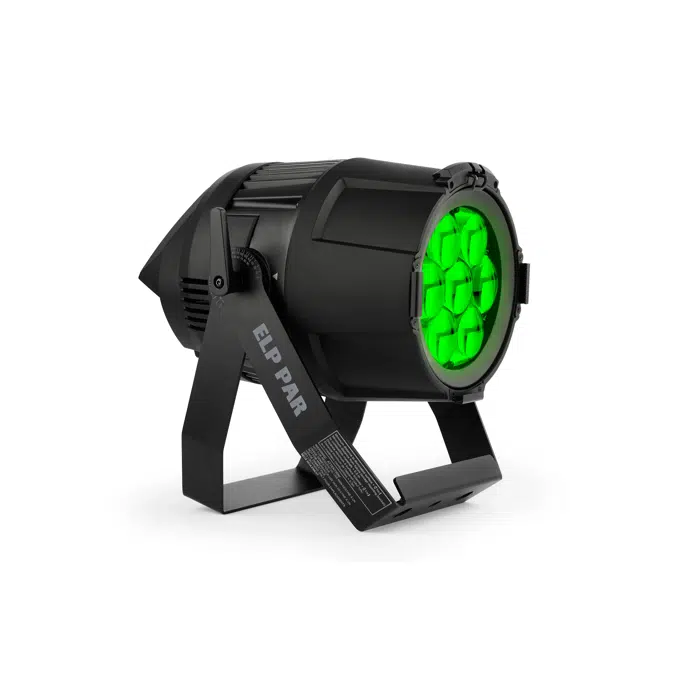

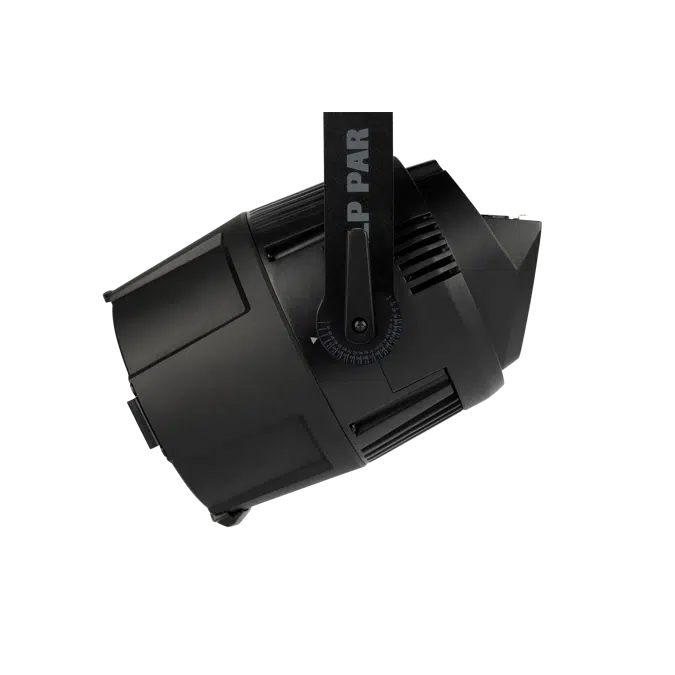

    ELP PAR, Static RGBW LED Par Fixture with Zoom

    The Martin ELP PAR static LED fixture sets a new standard in the static wash category, with unprecedented lumen output, high-intensity narrow zoom, full-gamut color calibration and smart rigging and control features.

    The ELP PAR makes installation faster and easier, thanks to a quick-focus system and bright angle of projection indicators. Other performance enhancements include a wide zoom range that allows both stage illumination and tight mid-air beam effects, an advanced color-calibration system that delivers accurate color reproduction and precise color temperature control, an extended color mode and a CTC channel that allows RGB color mixing around your desired white point.

    Whether lighting a theatre production, festival, exhibition or corporate event, fill the stage with color and create stunning beam effects with this versatile LED fixture that sets a new performance benchmark in its class.

    Specification
    • FEATURES

      • Light engine: 7 x 40W RGBW
      • Full-gamut color-calibration system
      • CTC control: 1,800–12,850 K
      • Lumen output: 3,500 lm
      • Intensity: 390,000 cd
      • Zoom: 4.2 - 58°
      • Quick Focus mode allows installation and focusing without the need for a console operator
      • Clear of projection indicators allow quick installation
      • Angled power and data connections support a clean cable run that does not impede the fixture or installation
      • Included truss and floor-mounting yoke with omega bracket connectivity
      • Low-noise 33 dB Theatre mode operation
      • IP20 rating
      • Dimensions: 312 x 287 x 401 mm (12.3 x 11.3 x 15.8 in) (inc. bracket)
      • Weight: 7.8 kg (17.2 lbs.)
    Technical specification
    • Unique ref.elp-par
    • Product familyStatic Lights
    • Product groupPARs
    • TypeObject (single object)
    • Date of publishing2022-09-23
    • Edition number1
    Related
    • Designed inUnited States
    • Manufactured inUnited States
    Classification
    • BIMobject CategoryLighting - Other
    • IFC classificationLight Fixture
    • UNSPSC nameLighting Fixtures and Accessories
    • UNSPSC code3911
    • Uniclass 2015 CodeEF_70_80
    • Uniclass 2015 DescriptionLighting
    • CSI MasterFormat 2014 Code26 50 00
    • CSI MasterFormat 2014 TitleLighting
    • OmniClass Number23-35 47 11
    • OmniClass TitleLighting Fixtures
    • CSI UniFormat II CodeD5020
    • CSI UniFormat II TitleLighting & Branch Wiring
