TruSys®

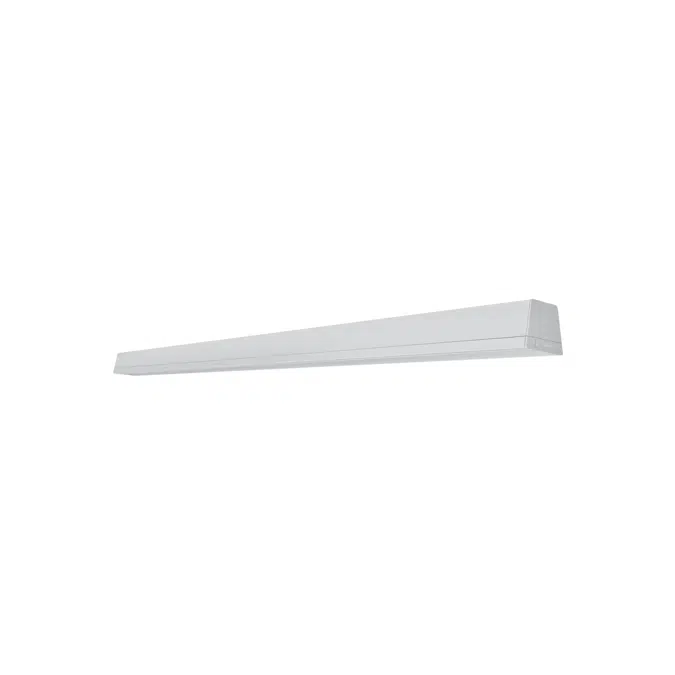

TruSys® DOUBLE ASYMMETRIC
Product benefits
- Innovative optical design with a rod lense-technology over the entire length of the luminaire
- Internal holders prevent the luminaire from falling while being mounted
- Easy electrical and mechanical connection to the mounting rail via snap-in mounting
- Bidirectional light distribution for lighting and accentuation of shelves
- Clean look as mouting brackets are not visible when mounted
- Plug-and-play system allows easy installation
- High-value design
- Rows of up to 81 (On-Off) / 91 (DALI) luminaires and an overall length of 124 m (On-Off) / 151 m (DALI) possible
- Energy savings of up to 65 % compared to luminaires with 2 x 80 W T5 lamps
- Version with DALI ECG available
- Double asymmetric wallwasher light distribution with beam angle 2x 35°
- Luminous efficacy: up to 135 lm/W
- Fixed energy taps for electrical connection
- High-quality aluminum casing
- Type of protection: IP20
- Follows the unified LEDVANCE design language (SCALE design)
- Direct replacement for luminaires with compact fluorescent lamps

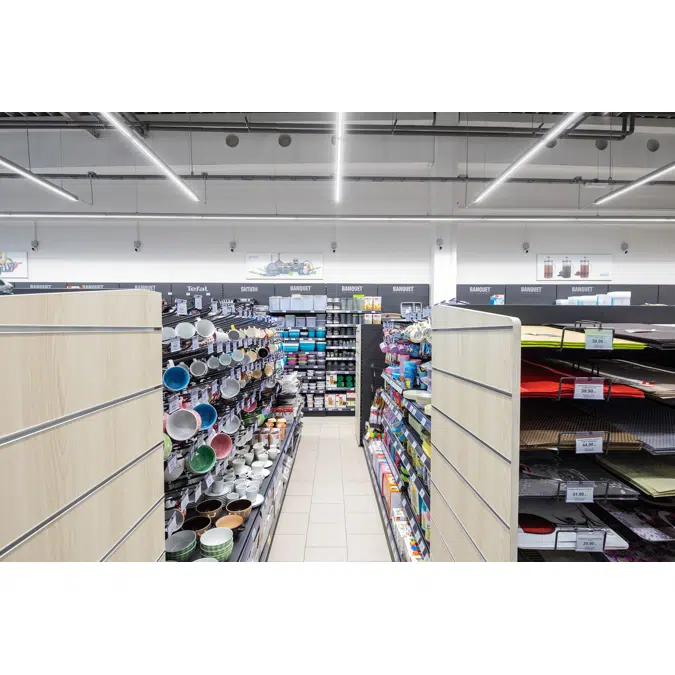

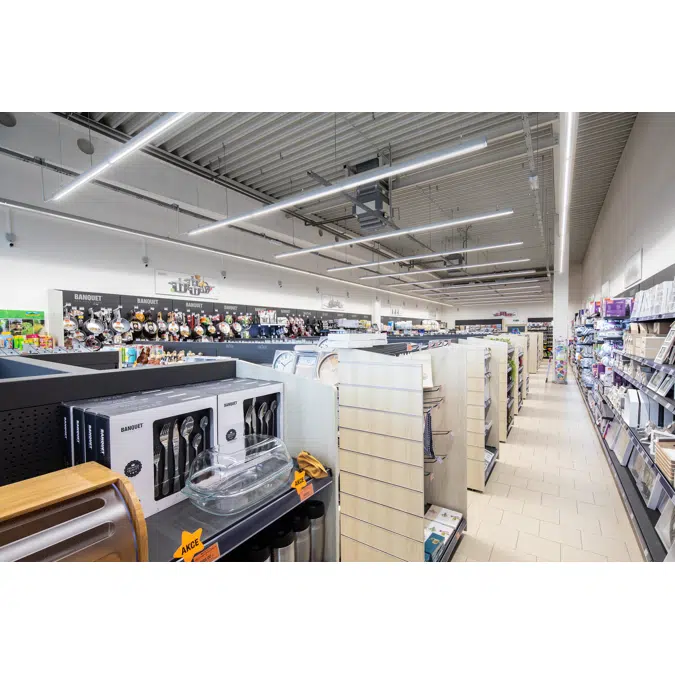

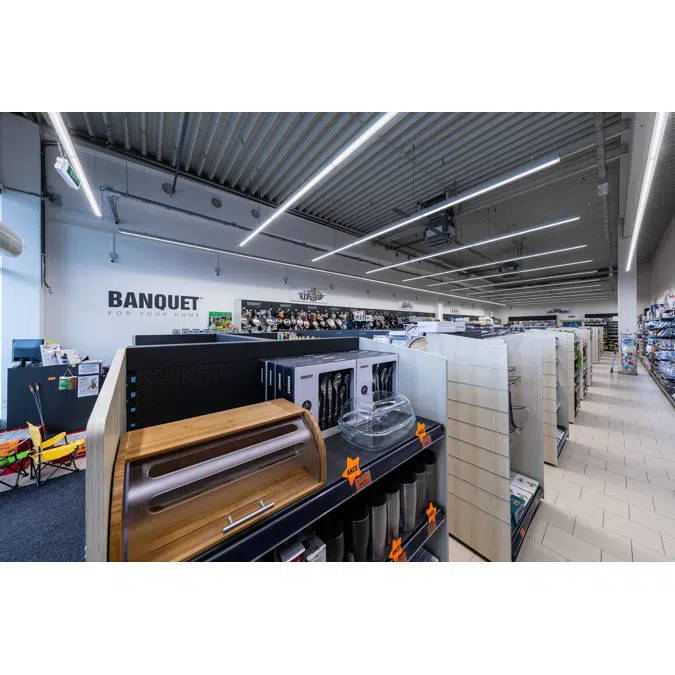

- Discounters, supermarkets

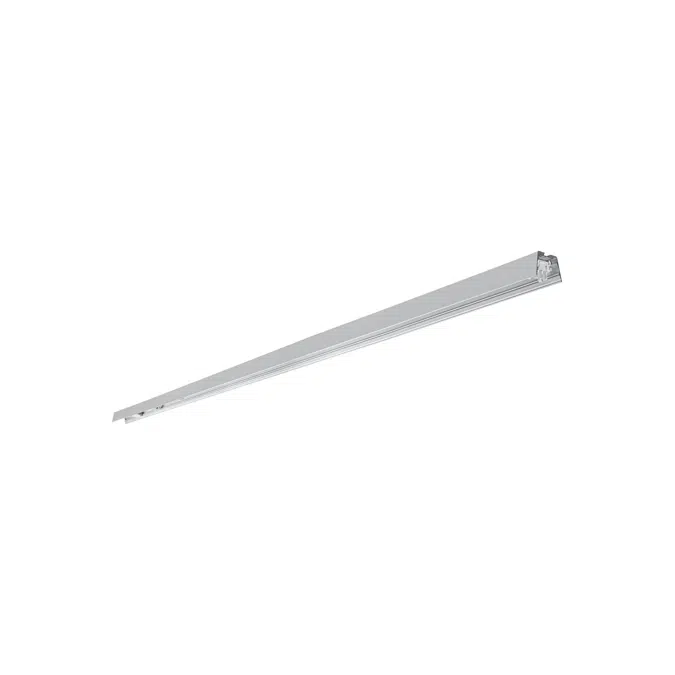

- Mounting rail with fixed integrated 5- (On-Off) / 7-pole (DALI) cable
TruSys® NARROW
Product benefits
- Innovative optical design with a rod lense-technology over the entire length of the luminaire
- Internal holders prevent the luminaire from falling while being mounted
- Easy electrical and mechanical connection to the mounting rail via snap-in mounting
- Bidirectional light distribution for lighting and accentuation of shelves
- Clean look as mouting brackets are not visible when mounted
- Plug-and-play system allows easy installation
- High-value design
- Rows of up to 81 (On-Off) / 91 (DALI) luminaires and an overall length of 124 m (On-Off) / 151 m (DALI) possible
- Energy savings of up to 65 % compared to luminaires with 2 x 80 W T5 lamps
- Version with DALI ECG available
- Double asymmetric wallwasher light distribution with beam angle 2x 35°
- Luminous efficacy: up to 135 lm/W
- Fixed energy taps for electrical connection
- High-quality aluminum casing
- Type of protection: IP20
- Follows the unified LEDVANCE design language (SCALE design)
- Direct replacement for luminaires with compact fluorescent lamps
- Discounters, supermarkets
- Mounting rail with fixed integrated 5- (On-Off) / 7-pole (DALI) cable
For guarantee see www.ledvance.com/guarantee
For this product family multiple variants might exist with specific properties!
Please refer to the specification text where each product url is listed.
Older generations of a product family can be accessed at our website https://www.ledvance.com.
You need to use Revit 2021 or higher to use our Revit files.
Contact: bim@ledvance.com
