Water meter, flowIQ®3100, G2B (R1 1/2) x 300 mm

Water meter, flowIQ®3100, G2B (R1 1/2) x 300 mm

flowIQ® 3100 covers a series of integrated, hermetically sealed water meters, intended for consumption and distribution measurement of cold domestic water – a static cold water meter based on the ultrasonic principle.

The cold water meter has been developed on the basis of Kamstrup's experience since 1991 with the development and production of static ultrasonic meters. flowIQ® 3100 has been subjected to very comprehensive type tests (OIML R 49) in order to ensure a long-term

stable, accurate and reliable meter. One of the water meter’s many advantages is the fact that it has no wearing parts, which entails longevity. The meter is powered by an internal lithium battery, providing up to 16 years' lifetime.

Specification

flowIQ® 3100
Nominal flow from 2.5 m³/h up to 63 m³/h
Approved with dynamic range up to R630
'Drive-by', network or IoT
Pinpoint accuracy
Designed for operation in submerged environments
Integrated communication supporting:
- Wireless M-Bus & linkIQ®
- Wired M-Bus
Long life
Simple installation
GDPR ready

Technical specification

Unique ref.031-YY-C5J-8XX
Product familyWater Meters
Product groupflowIQ®3100
TypeObject (single object)
Date of publishing2020-08-27
Edition number1

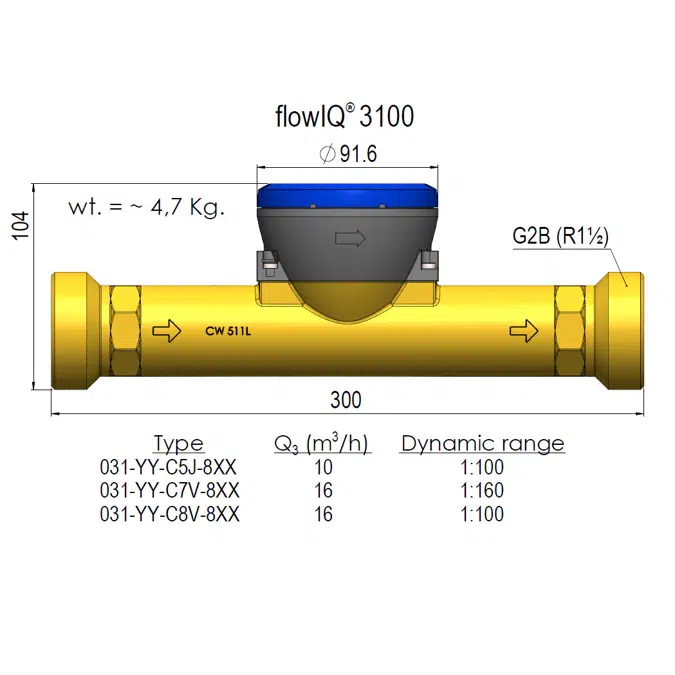

Height (mm)104.5
Width (mm)300
Depth (mm)100

Links

Product urlhttps://www.kamstrup.com/en-en/submetering-solutions/property-management/water-meters
Installation instructionshttps://www.kamstrup.com/en-en/water-solutions/meters-devices/meters/flowiq-3100
Technical descriptionhttps://www.kamstrup.com/en-en/water-solutions/meters-devices/meters/flowiq-3100

Material mainBrass
Material secondaryPlastic
Designed inDenmark
Manufactured inDenmark
Weight Net (Kg)4.7

Classification

BIMobject CategoryPlumbing - Other
IFC classificationFlow Segment
ETIM CodeEG000045
ETIM NameMeters
UNSPSC nameMetering or injection or proportioning pumps
UNSPSC code40151552
Uniclass 2015 CodePr_80_51_46_92
Uniclass 2015 DescriptionUltrasonic flowmeters
CSI MasterFormat 2014 Code40 71 66
CSI MasterFormat 2014 TitleTransit Time Flow Meters
OmniClass Number23-39 27 00
OmniClass TitleWater Utility Equipment
