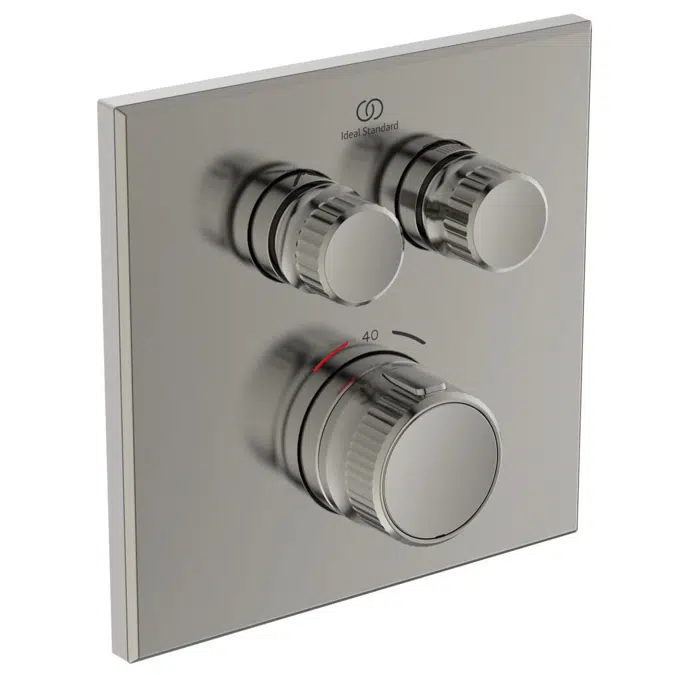

Ceratherm Navigo Thermostatic Shower Mixer 2 Controls and Square Escutcheon

Specification

Specification

• • Independent dual push/flow control operation • Thermostatic temperature control • Temperature handle to have temp stop override at 40C (factory set) • Push control handles to be Metal • Temperature control material Metal • Square wall escutcheon ZDC ~158mm x 158mm • Escutcheon thickness to be max. 10mm • Button dimensions to be in line with chosen design • Building in depth to be as existing Easy-Box • Sealing of face plate should be equivalent to our existing Easy-Box products. • Possibility to equip with distance frame on a later stage • Possibility to equip with existing extension kit – 20mm and 40mm (ideally existing A960704NU, A962476NU) • Number of part joins to be minimise to facilitate easy cleaning • Packaging – ISI Picture Box • Available in different finishes, (AA) Chrome, (A2) Brush Gold,(A5) Magnetic Grey and (GN) Silver Storm

Technical specification

Technical specification

• Unique ref.A7302
• Product familyNavigo
• Product groupTaps & Mixers
• TypeObject (single object)
• Date of publishing2022-04-05
• Edition number1

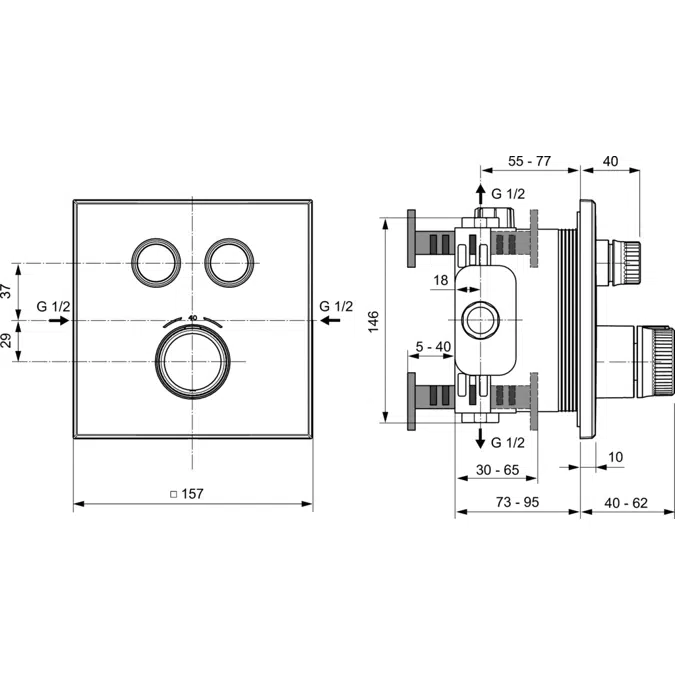

• Height (mm)215
• Width (mm)172
• Depth (mm)180

Links

Links

• Product urlhttps://www.idealstandard.co.uk/products/catalog/taps-and-mixers/shower-mixers
• Installation instructionshttps://www.idealstandard.co.uk/products/catalog/taps-and-mixers/shower-mixers
• Instruction videohttps://www.youtube.com/channel/UCvNSaQtCSTKdF6hNa_Cs8eQ
• Product certificationhttps://www.idealstandard.co.uk/about-us/contact-service
• Technical descriptionhttps://www.idealstandard.co.uk/products/catalog/taps-and-mixers/shower-mixers

Related

Related

• Material mainBrass
• Weight Net (Kg)2.1

Classification

Classification

• BIMobject CategorySanitary - Taps & Mixers
• IFC classificationSanitary Terminal
• ETIM CodeEC011329
• ETIM NameShower mixing tap
• UNSPSC nameSanitary ware
• UNSPSC code301815
• Uniclass 2015 CodePr_40_20_87_78
• Uniclass 2015 DescriptionShower manual water supply sets
• CSI MasterFormat 2014 Code22 41 39
• CSI MasterFormat 2014 TitleResidential Faucets, Supplies, and Trim
• OmniClass Number23-31 11 00
• OmniClass TitleFaucets
