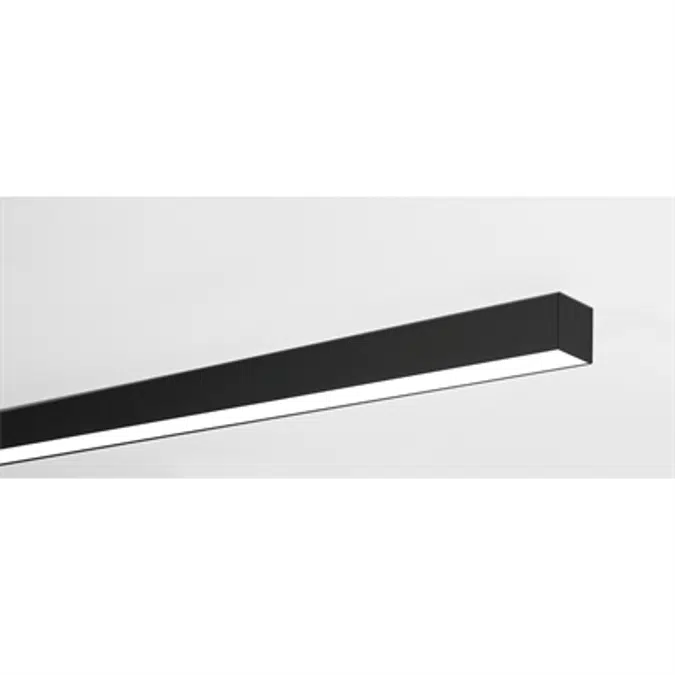

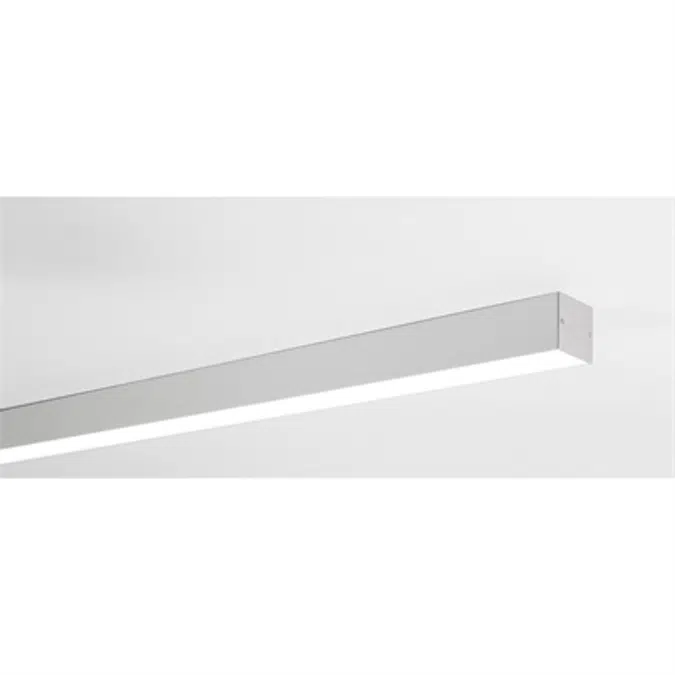

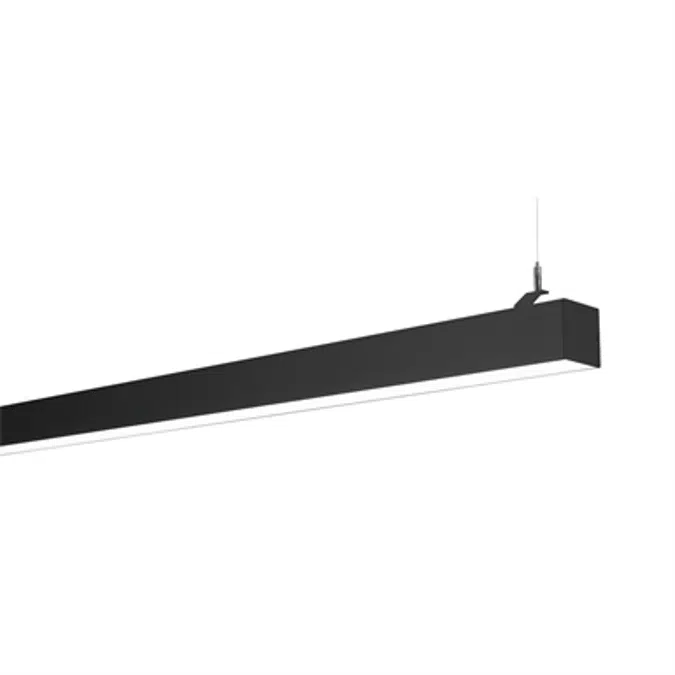

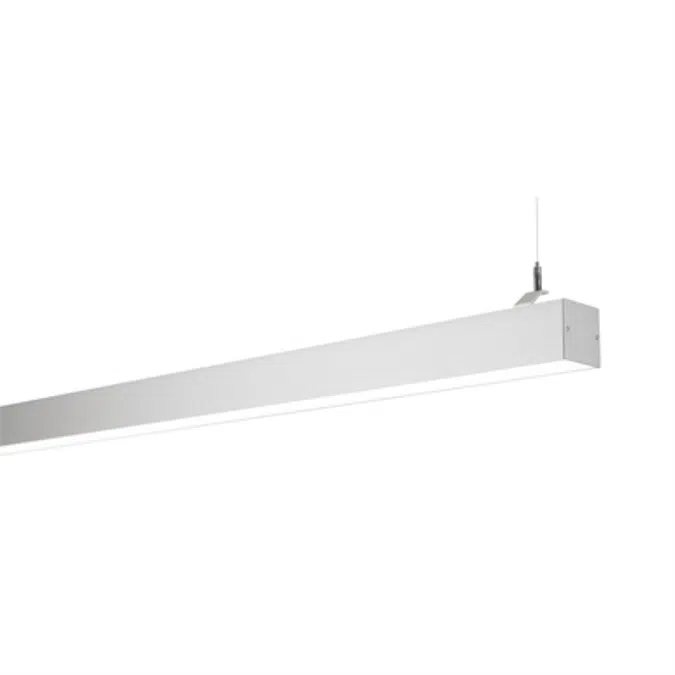

Notor 65 Opal

Suspended or ceiling mounted with direct light only via Opal louvres. Single or continuous installation. Luminaire body enameled in white (RAL 9016) alternatively black (RAL 9005) or natural anodised extruded aluminium finish. Key Features Lumen: 1600lm, 2500lm, & 5000lm Colour temperature: 3000K & 4000K Light distubution: Direct Voltage: 230V CRI: 80 IP: 20 Standard Colours: Anodised, Black & White Availible Light control: DALI Phase-pulse & e-Sense Organic

Specification

Dimensions: Heigh 65mm, Width 65mm, Length 400-2400mm Weight: 2kg, 2.5kg, 3kg & 6kg SDCM: 3 LED driver, h/max failure: 100 000/10% Installation Single or continuous installation via wire suspension or surface mounted. Installation via wire suspension requires wire brackets which provide flexible c/c, see accessories. Can also be wall mounted with special brackets, see Accessories. Louvre: Opal – plate in frosted acrylic (PMMA).

Technical specification

Unique ref.Notor-65-Opal
Product familyIndoor
Product groupPendant
TypeObject (single object)
Date of publishing2018-10-08
Edition number1

Links

Product urlhttps://www.fagerhult.com/Products/notor/notor-65-opal/
Installation instructionshttps://www.fagerhult.com/globalassets/inriverresources/instructionforuse/notor65_instruction_for_use.pdf
Instruction videohttps://vimeo.com/200646173
Technical descriptionhttps://www.fagerhult.com/Products/notor/notor-65-opal/

Material mainAluminium
Material secondaryAcrylic
Designed inSweden
Manufactured inSweden

Classification

BIMobject CategoryLighting - Pendants
IFC classificationLight Fixture
ETIM CodeEC001743
ETIM NamePendant luminaire
UNSPSC nameLighting Fixtures and Accessories
UNSPSC code3911
Uniclass 2015 CodePr_70_70_48_62
Uniclass 2015 DescriptionPendant luminaires
CSI MasterFormat 2014 Code26 50 00
CSI MasterFormat 2014 TitleLighting
OmniClass Number23-35 47 11
OmniClass TitleLighting Fixtures
CSI UniFormat II CodeD5020
CSI UniFormat II TitleLighting & Branch Wiring
