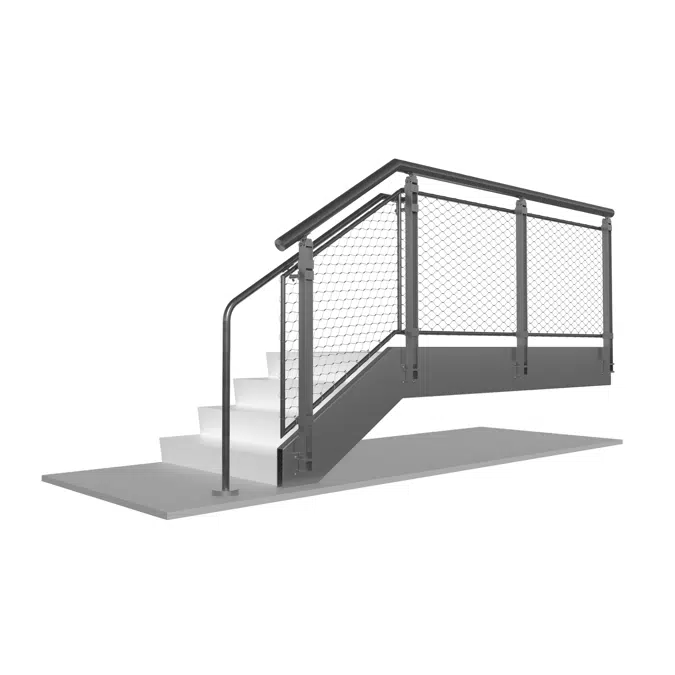

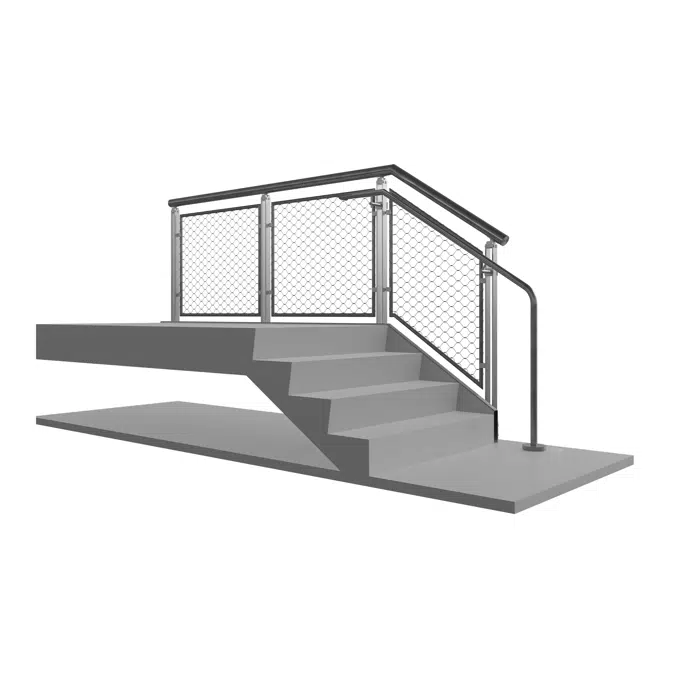

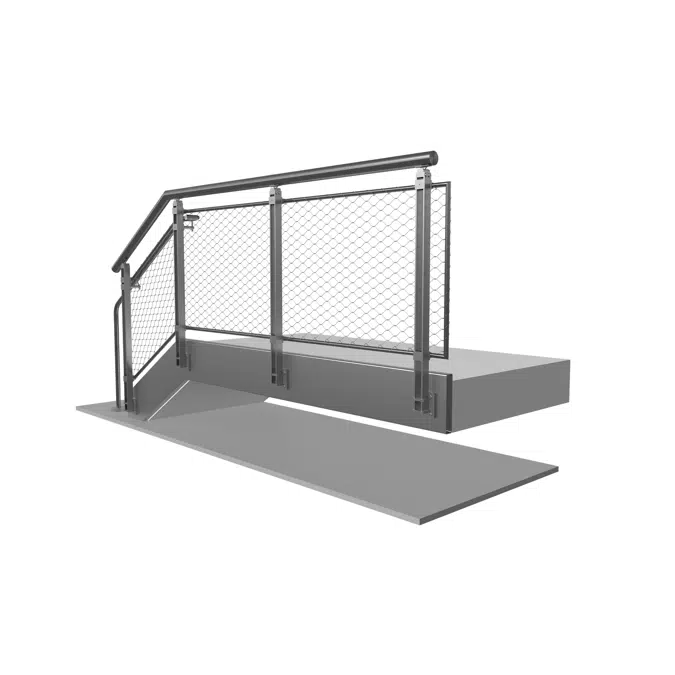

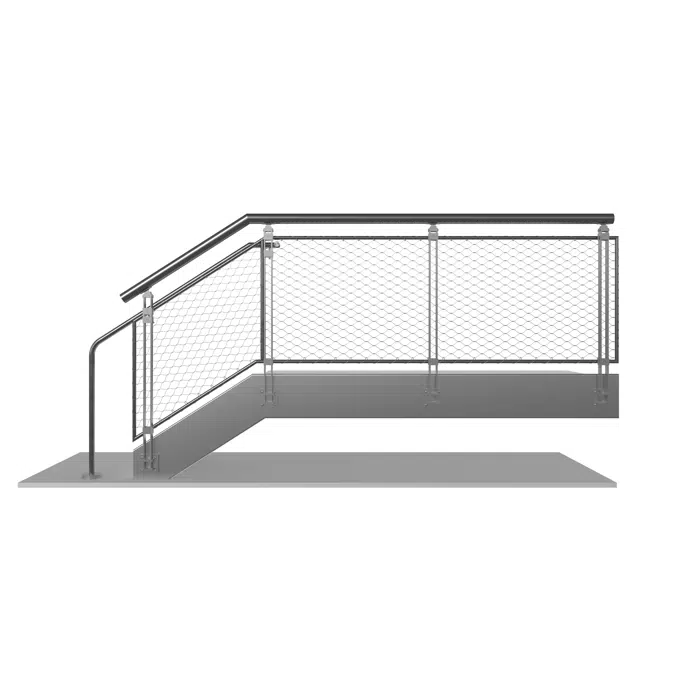

BLADE Air Stainless Steel CableNet Railing System

Material:

Stainless Steel or Steel

Finish:
#6 Satin, #8 Mirror, ECM or Powder Coat

Size:
2" Double flat bar post @ 5'-0" max. O.C.
4'-6" max. for perforated and wire mesh infill. 4'-0" max. for Multiline infill.

Mounting Options
Fascia, Top or Core mount.

INFILL MATERIAL:  Glass, Perforated Metal, Wire Mesh, Picket, Multiline, Laser Cut or CableNet

Glass Finish:
Clear, Tinted or Frit

Size/Spacing for Glass Finish:

Min. 3/8" laminated glass with PVB or SGP interlayer ¹
Glass standard thickness: 3/8", 1/2", 5/8", 3/4"
Interlayer standard thickness, SGP: 0.035" , 0.06" or PVB: 0.035"

Perf, Wire, Picket Multiline and CableNet Finish:  #6 Satin

Size/Spacing for Perf, Wire, Picket, Multiline and CableNet:

• · Perforated Metal:  1” wide frame
• · Wire Mesh:  1” wide frame
• · Picket:  Ø1/2" picket
• · Multiline:  Ø1/2" multiline
• · CableNet:  1" Wide frame, Ø1/16" (1.5mm) cable mesh
• · Laser Cut - 1/4" thick aluminum panel

TOP RAIL/HANDRAIL MATERIAL:

A. Stainless Steel Tube
Finish:  #6 Satin, Powder Coat
Size/Spacing for SS Tube: Ø1-1/2" or Ø2" for Hand Rail
Ø1-1/2", Ø2" or 2"x1" Rectangular tube for Top Rail

B. Stainless Steel Tube with LED
Finish:  #6 Satin
Size/Spacing for SS Tube with LED:  Ø1-1/2" with LED LINEAR, Ø1-1/2" or Ø2" with LED PODS

C.1 Wood (Red Oak, Cherry or Maple):  #6 Satin
C.2 Wood  (Red Oak, Cherry or Maple) w/ LED:  Unstained
Size/Spacing:  Ø2" / Ø2" with LED LINEAR

1. IBC 2015 & newer requires railing glass to be laminated. VIVA recommends SGP for exterior applications.
2. All LED LINEAR products are ETL certified; ETL mark is proof of product compliance to North American safety standard.
3. Other species available upon request.
