AWI MEGA VAULT® | RPH (Roof Penetration Housings, LLC)

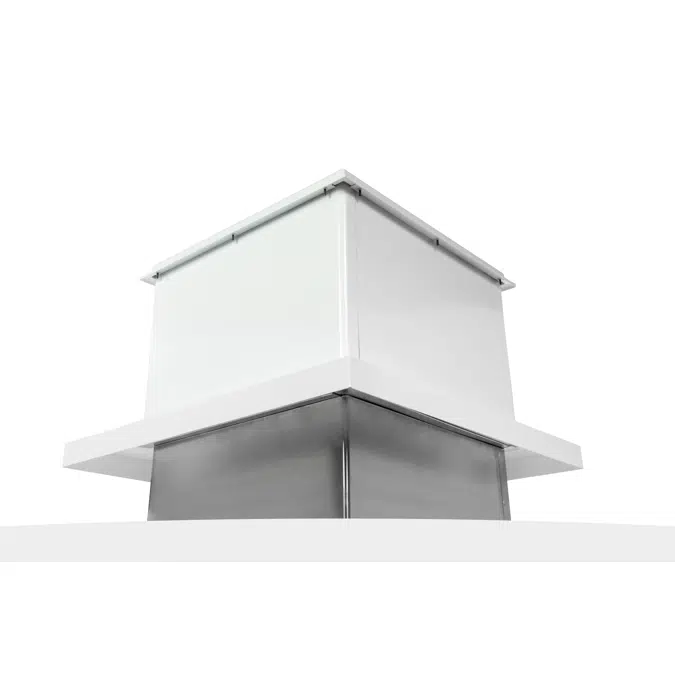

AWI Series Vault®

Material: Aluminum

Cover Material: .08 Aluminum

Cover Paint: White, SRI 88.2% powder coat, ASTM 2604-05, 2-3 mil.

Housing Material: .08 Aluminum

Housing Paint: White, SRI 88.2% powder coat, ASTM 2604-05, 2-3 mil.

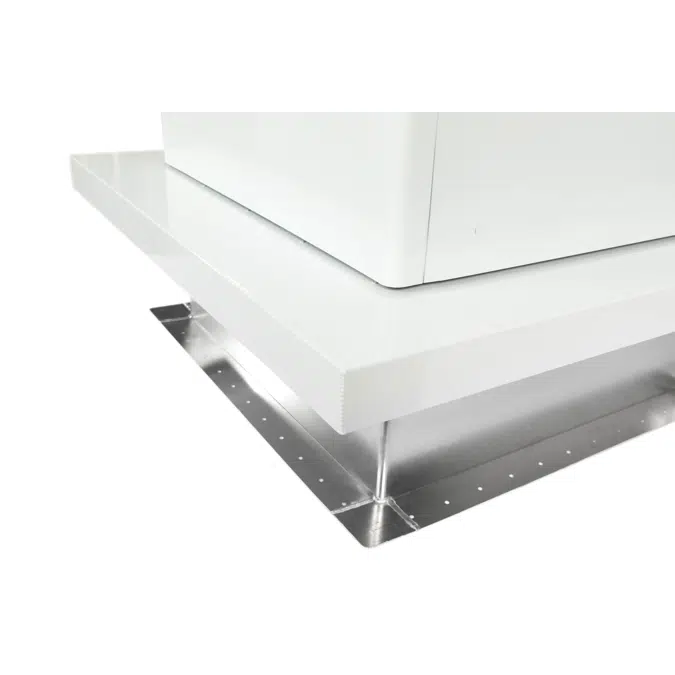

Curb Material: Aluminum - not coated (thickness per drawings)

Insulation Curb Extension (ICE): Insulation provided by others

Curb Height: Height per drawings

Warranty: 20 years, when paired with our RPH ExitSeals™

RPH EXITSEALS™: Our RPH Exit Seals™guarantee a weather-tight seal for your AW VAULT® assembly by effectivelysealing every penetration. These seals are constructed using either stainlesssteel or all-aluminum and incorporate our SilX-14™ gasket which is designed toaccommodate various pipe sizes and withstand temperatures ranging from -65°F(intermittent -100°F) to +450°F (intermittent to +500°F). The seals areconveniently attachable via either a threaded or flange connection to yourstandard VAULT® housing. They are designed to accommodate appropriate-sizepipes, cables, duct work, or other desired penetrants.

Notes:

• Exit Seal capacities are dependent on the size of seals required
• Products shown may not reflect current design refinements. Dimensions may vary.
