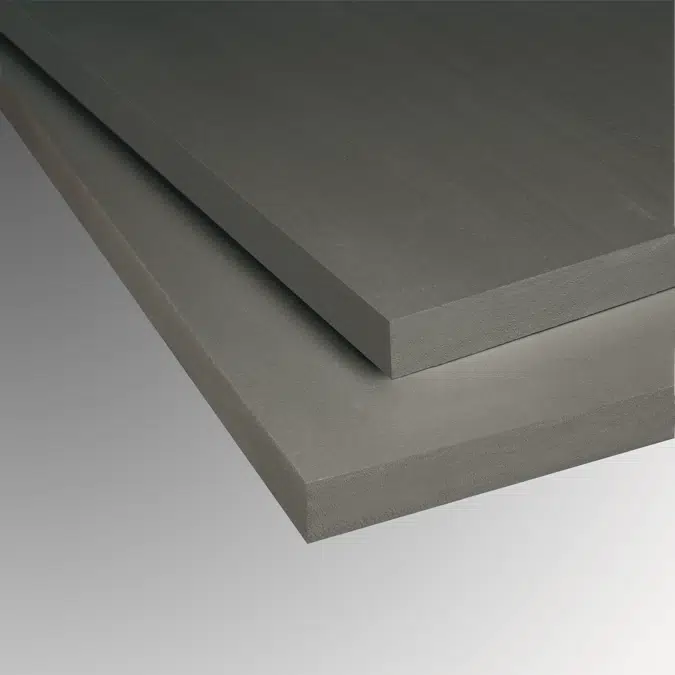

Ravatherm XPS X 700

Thermal resistance

Thickness TR [m2.K/W]      λD [W/mK]

40 mm                   1.30              0.031

50 mm                   1.60              0.031

60 mm                   1.85              0.032

80 mm                   2.50              0.032

100 mm                 3.10              0.032

120 mm                 3.75              0.032

Compressive strength at 10% strain1 CS(10\Y) = 700 kPa

Modules (typical value) Elastic modulus1 [MPa]

Thickness

<50 mm                                                    20

≥50 mm                                                    25

Long-term compressive strength (2% deformation after 50 years)

Thickness CC(2/1.5/50) [kPa]

<80 mm                           200

≥80 mm                           250

Vapor diffusion resistance factor μ : MU = 150

Long-term water absorption by total immersion WL(T) = 0.7%

Water absorption by diffusion

Thickness WD(V) [%]

<50 mm               3

50 - 79 mm          2

≥80 mm               1

Water absorption after freeze-thaw cycles : FTCD = 1%

Dimensional stability at conditioned temperature and humidity (70°C, 90%) : DS(70,90) < 5%

Deformation under specific loading and temperature conditions (40kPa, 70°C) : DLT(2)5 < 5%

Coefficient of linear thermal expansion (typical value) : 0.07 mm/(m.K)

Reaction to fire (Euroclass) : E

Maximum operating temperature : -50/+75°C

Dimensional tolerances : T1

Thickness :

<50 mm                      ±2 mm

50 - 120 mm              -2/+3 mm

>120 mm                   -2/+6 mm

Width :                     -3/+3 mm

Length : -                   6/+6 mm

Dimensions

Thickness : 40 - 120mm

Width : 600mm

Length : 1250mm

Specific heat : 1450 J/(Kg.K)

Profiles : rebated stepped on 4 sides

Surface finish : with skin

Closed cell content : ≥95%

Designation code : XPS - EN 13164 - T1 - CS(10\Y)700 - <80mm CC(2/1.5/50)200 ≥80mm: CC(2/1.5/50)250 - DS(70,90) - DLT(2)5 - <50mm: WD(V)3 / ≥50mm & - <80mm: WD(V)2 / ≥80mm:WD(V)1 - WL(T)0.7 - FTCD1 - MU150

1) 1 Measured in the direction of thickness

2) Certified values for thicknesses >120mm

1 N/mm² = 10³ kPa = 1MPa
