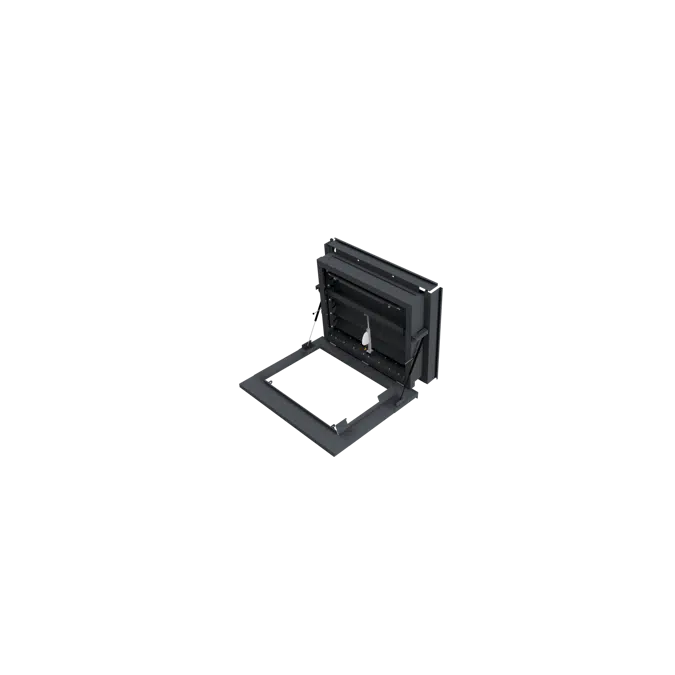

Opensky Access AOV

Smoke Vent & Access Hatch - Promotes natural ventilation in buildings while enhancing safety by providing smoke extraction during fire incidents

Product Name: Opensky Access

Tested to: EN12101:2

Compatibility: Designed for use in smoke ventilation systems and providing access to the roof space

Materials: High-quality materials to ensure durability and long-lasting performance

Actuator Type: Offset actuator mechanism for smooth and efficient operation

Safety Features: Equipped with safety features such as a smoke sensor and automatic release function

Compliance: Complies with relevant industry standards and regulations for smoke ventilation and access hatches

Dimensions: Please refer to the specific product page for accurate dimensions

Installation: Installation instructions and mounting hardware provided for easy installation

Warranty: Manufacturer's warranty ensuring peace of mind and product support

Construction: Made from high-quality materials, ensuring reliability and durability

Performance: Wide-opening angle, certified performance, and high thermal performance for effective ventilation and energy efficiency

Flap Option: Polycarbonate flap option allows for the entry of natural daylight:

AOV Specification (EN12101:2)

• Reliability: RE 50 (1,000 cycles)
• Wind load: 1500 N/m2
• Snow load: 250 N/m²
• Resistant to heat: B 300
• Low temperature class: T(-5)
• U value:
  • Up to a maximum of 1.3 W/m²K (aluminium lid version)
  • 2.4 W/m²K (polycarbonate lid version)
• Watertightness: rain defence tested to 75m/hr @ 13 m/sec
• Air permeability: Class 2/3 (depending on unit specification) to BS EN 12207:2000
• Sound insulation: 29 dB R’w
