Myral insulated panel M32_smooth

Non-ventilated system

Installation of the cladding / cladding system (without air gap) on flat and vertical walls, new or pre-existing, in masonry of coated elements (in accordance with NF DTU 20.1) or in concrete (in accordance with DTU 23.1), blind or pierced with berries.

Possible installation in cladding (without air gap) and cladding (not ventilated) on Timber Frame Constructions (COB) in accordance with NF DTU 31.2 is limited to a maximum height of 10 m (+ gable end) depending on the wind zone

Rigid insulation panels (Ex: PIR, Resole foam, high density rock wool or others) can be inserted between the cladding panels and the load-bearing structure to form an exterior thermal insulation system of the "cladding" type.

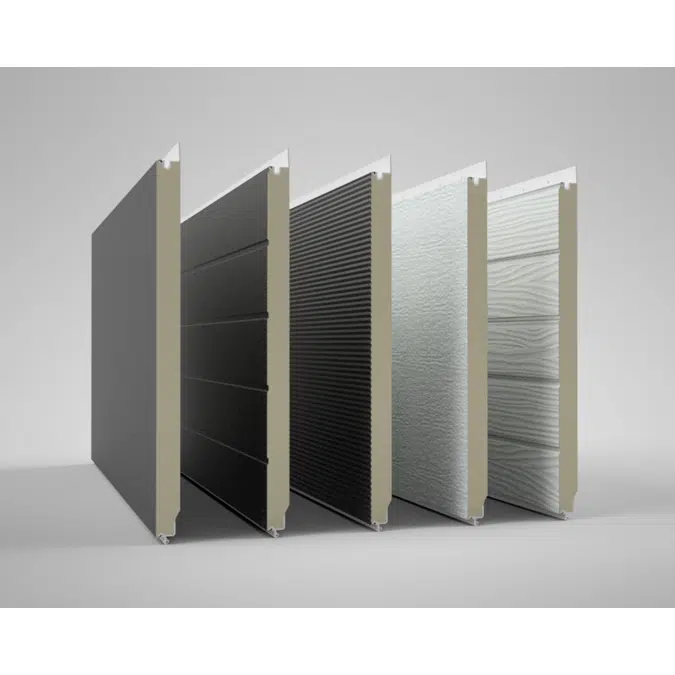

The Myral panel is made up of elements combining a pre-painted aluminum sheet facing with molded polyurethane insulation. Installation of the cladding elements by interlocking the PVC edges and fixing to the supporting structure using plastic plugs directly to the shell.
