L-OL-4 ACOUSTIC LOUVER

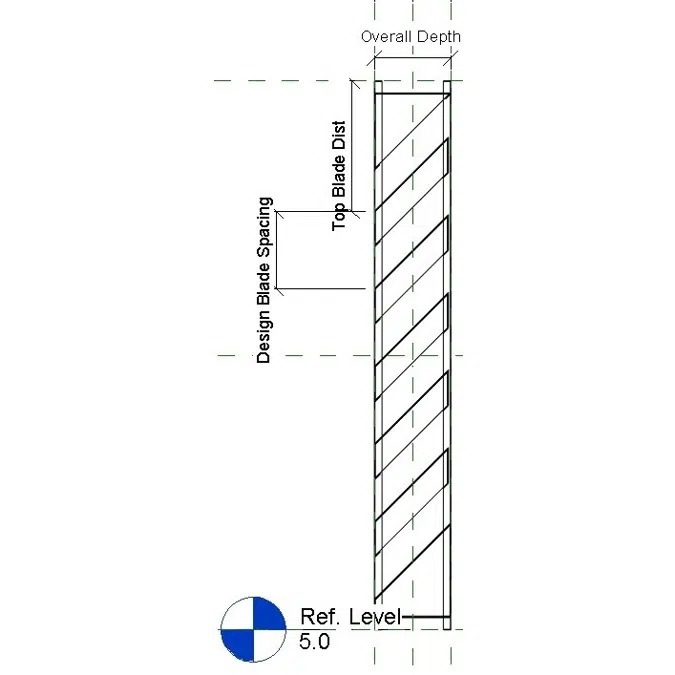

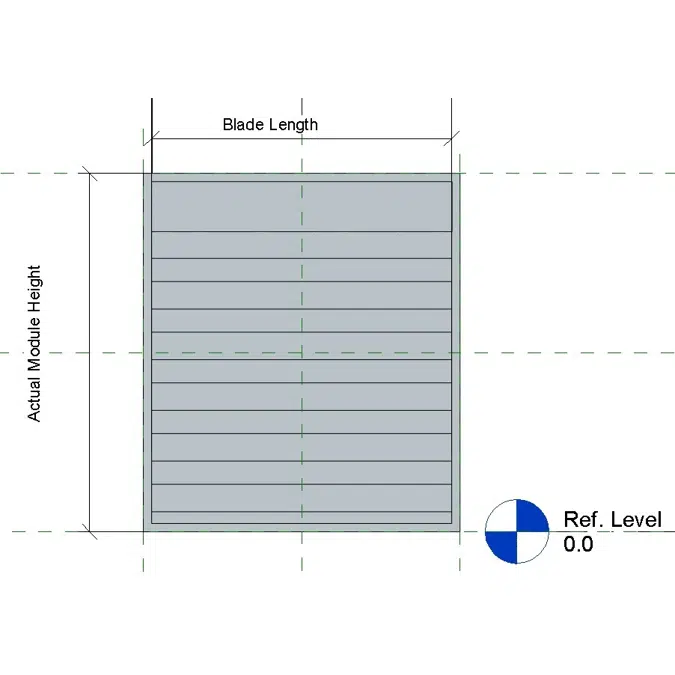

Available Depths and Maximum Module Sizes:

The L-OL-4 model is available in four standard depths, each with defined factory module limits:

Type - Depth mm - Max Width mm/in - Max Height mm/in

A - 150 - 1524mm/60" - 2443mm/96 1/8"

B - 200 - 1524mm/60" - 2494mm/98 1/4"

C - 225 - 1524mm/60" - 2367mm/93 1/4"

D - 250 - 1524mm/60" - 2391mm/94 1/8"

Frame Material, Options:

- Galvanized Steel Sheet, Default

- Aluminum Sheet, Optional – to be specified at the time of selection.

Optional Accessory:

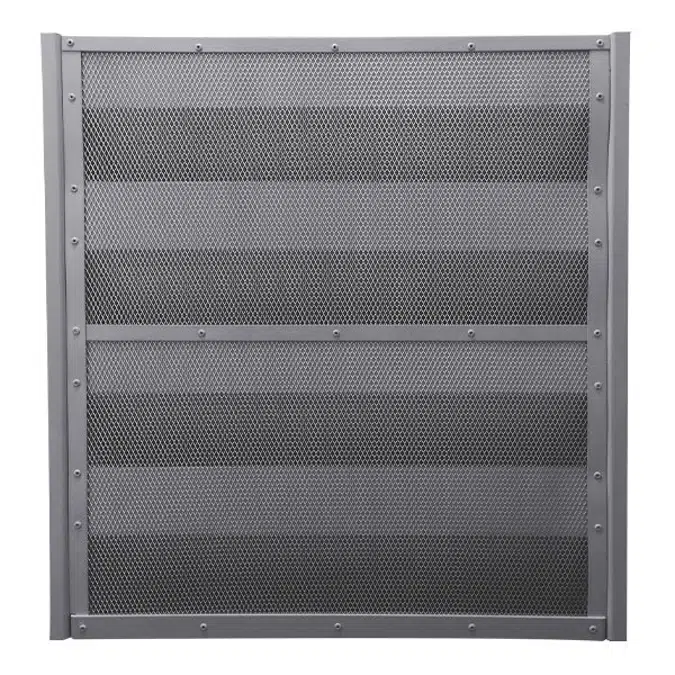

-BS, Bird Screen: Expanded aluminum mesh to prevent entry of birds or large debris. Suitable for outdoor use.

Finishes. Electrostatic powder coating in one of the following:

-White RAL9003

-Laminaire special grey

-Matte black
