CFP + ISD 0100 eller 0000 - Ovenlyskuppel, fast ramme

Structural opening sizes:
060060 – 600mm wide x 600mm high
060090 – 600mm wide x 900mm high
080080 – 800mm wide x 800mm high
090090 – 900mm wide x 900mm high
090120 – 900mm wide x 1200mm high
100100 – 1000mm wide x 1000mm high
100150 – 1000mm wide x 1500mm high
120120 – 1200mm wide x 1200mm high
150150 – 1500mm wide x 1500mm high

External frame size including kerb:
060060 – 780mm wide x 780mm high
060090 – 780mm wide x 1080mm high
080080 – 980mm wide x 980mm high
090090 – 1080mm wide x 1080mm high
090120 – 1080mm wide x 1380mm high
100100 – 1180mm wide x 1180mm high
100150 – 1180mm wide x 1680mm high
120120 – 1380mm wide x 1380mm high
150150 – 1680mm wide x 1680mm high

Daylight Areas:
060060 – Daylight area 0.19m²
060090 – Daylight area 0.32m²
080080 – Daylight area 0.40m²
090090 – Daylight area 0.54m²
090120 – Daylight area 0.76m²
100100 – Daylight area 0.70m²
100150 – Daylight area 1.11m²
120120 – Daylight area 1.07m²
150150 – Daylight area 1.78m²

Finishes: Frame – Extruded PVC.
White (NCS standard colour: S 0500-N, nearest RAL standard colour: 9016).

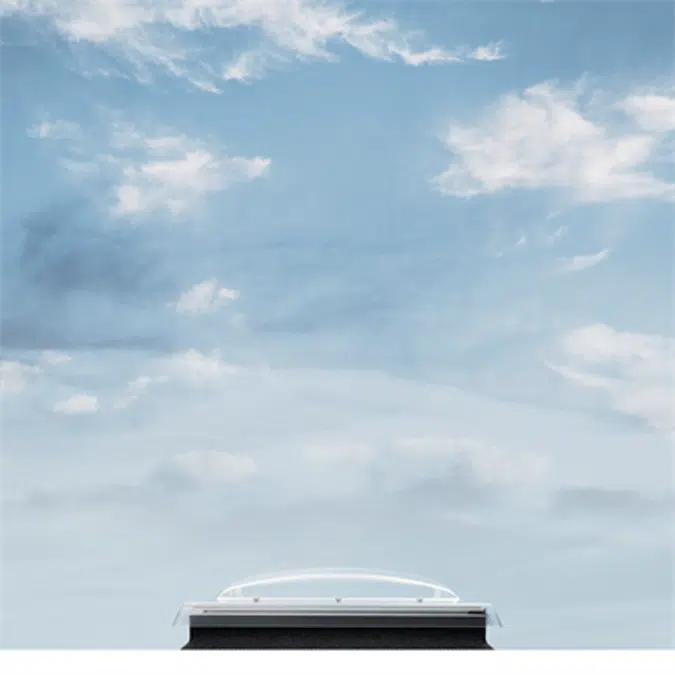

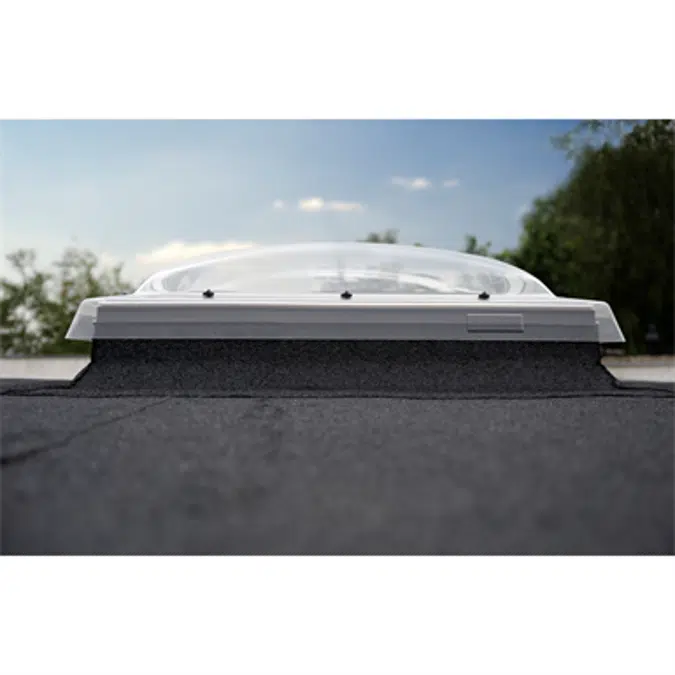

Dome Cover.
Acrylic or Polycarbonate and available in clear or opaque.
