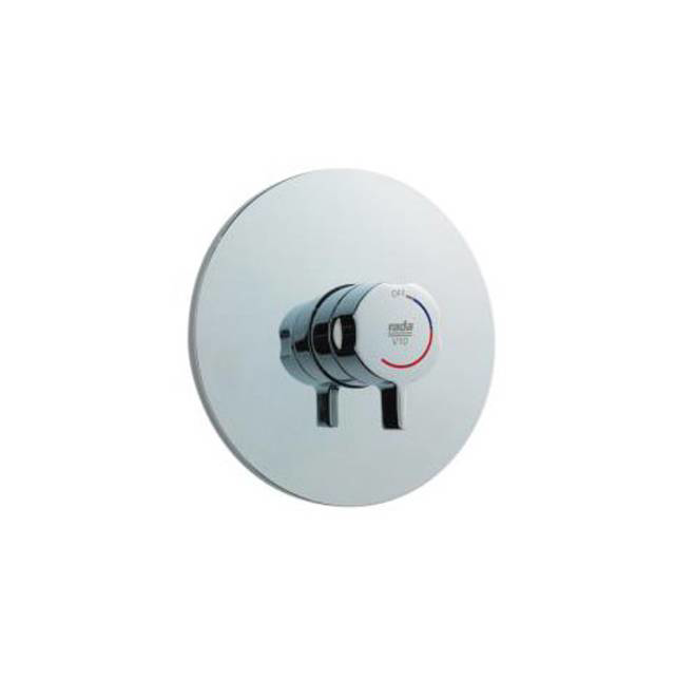

Rada V10 Concealed Shower Valve

TMV2 approved concealed, single sequential thermostatic shower valve suitable for commercial and semi-domestic applications. The Rada V10 Built-in single sequential thermostatic shower valve is supplied complete with integral strainers and optional flow regulators. The Rada V10 mixer incorporates a proven thermostatic cartridge providing extended service- free reliability, protected by integral inlet filters. Approvals: Buildcert TMV2 Scheme Approved. HP-S High Pressure Showering. LP-S Low Pressure Showering. WRAS listed (Water regulations advisory scheme). Designed, manufactured and supported in accordance with accredited BS EN ISO 9001:2008 Quality management systems and BS EN ISO 14001:2004 Environmental Management Systems.

Specifikation

Product Reference
Rada V10 Concealed Thermostatic Mixing Valve (1.1651.005)
Standard product features
Connections:
• Inlets: 15 mm compression.
• Outlet: ½” BSP Flat Face/ 15 mm compression.
• Standard connections are: hot- left, cold- right, outlet- bottom or top.
Operation:
The Rada V10 is operated via a single sequential control which when rotated initially opens the valve, then increases the temperature from cold to a pre-set maximum.
Temperature Range:
• The maximum temperature that can be selected is factory set at approximately 41˚C, but this can be reset on site if required.
• Cold water temperature range 5–20˚C.
• Hot water temperature range (recommended) 55–65˚C.
• Maximum hot water temperature 85˚C
Note: In the event of loss of either supply, the valve will automatically shut off. Minimum temperature of the blend to either supply is 12˚C.
For reasons of general safety, hot water storage temperatures should be maintained at between 60–65˚C where serving ablutionary applications. The mixing valve can accept temporary excursions above 85˚C without damage, however operation at such elevated temperatures is not recommended.
Pressure/ Flow Rates:
• Minimum dynamic supply pressure: 0.15 Bar
• Maximum dynamic supply pressure: 5 Bar
• Minimum flow rate: 3 L/min
• Maximum flow rate: 30 L/min
• Maximum pressure ratio: should not exceed 10:1 in favour of either supply during flow
• Maximum static pressure: 10 Bar.
Materials:
• Body: Chrome Plated DZR Brass.
• Lever: Chrome Plated Zinc Die Casting.
