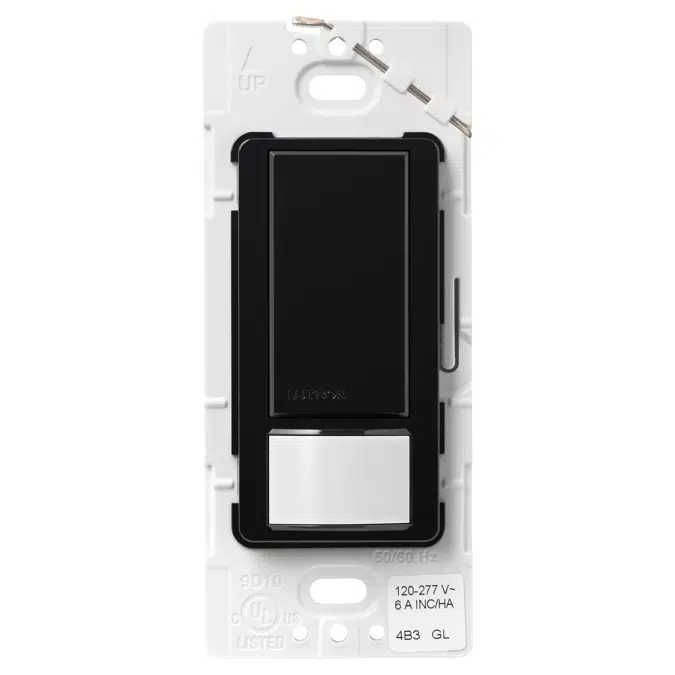

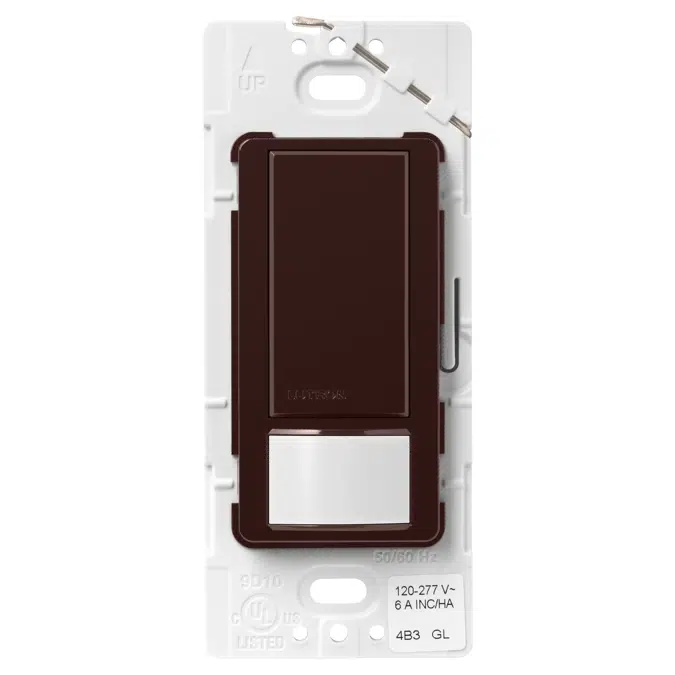

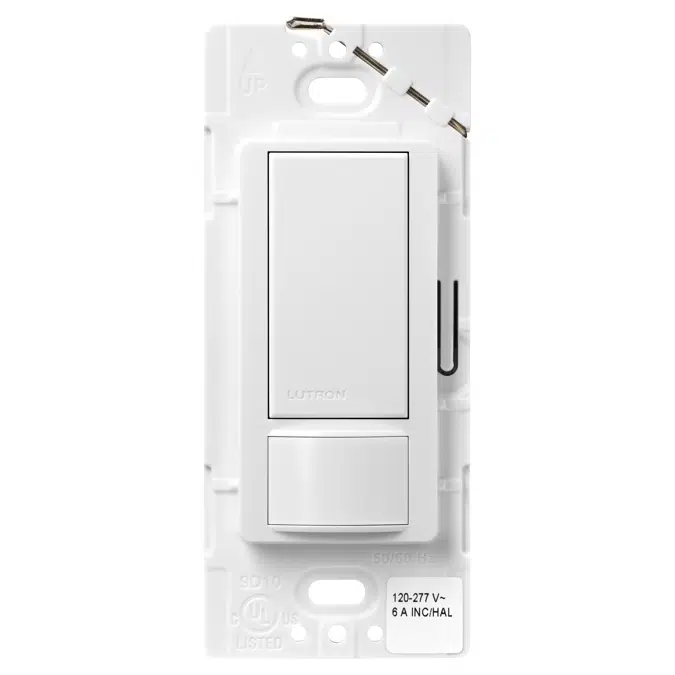

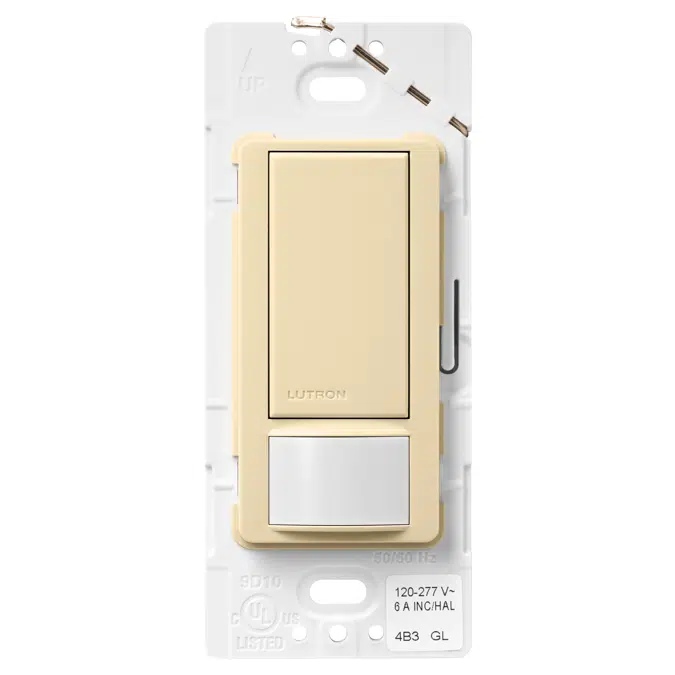

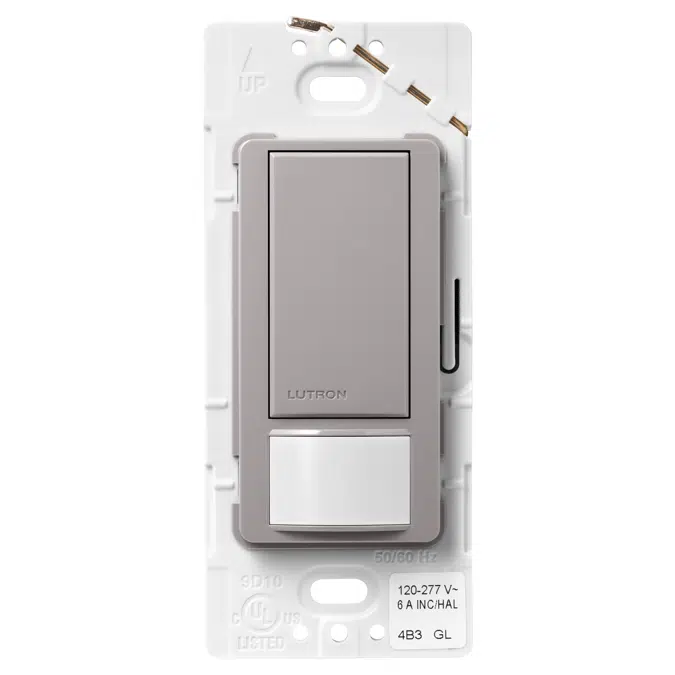

Maestro Sensor Switch with Occupancy/ Vacancy Sensor

The Lutron Maestro occupancy sensor switch combines a

Maestro switch with a passive infrared occupancy or vacancy

sensor. The sensor detects the heat from occupants moving

within an area to determine whether the space is occupied.

Based on the feedback from the sensor, the occupancy sensor

switch will adjust the load accordingly.

Features
• Passive infrared sensors with exclusive Lutron XCT Technology
for fine motion detection
• 180° sensor field-of-view
• Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion
coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor
motion coverage
• Occupancy version can be set to Auto-ON/Auto-OFF or
Manual-ON/Auto-OFF
• Vacancy version available to meet CA Title 24 requirements
• Adjustable timeout (1, 5, 15, or 30 minutes) and high/low
sensitivity adjustment
• Load types: incandescent, halogen, ELV, MLV, CFL, LED,
magnetic fluorescent, electronic fluorescent, and fan.

Specifikation

Specifications
Regulatory Approvals
• UL® Listed to U.S. and Canadian safety
requirements.
• NOM Certification (MS- models only).
Power
• 120 V~ 50/60 Hz*
• 120–277 V~ 50/60 Hz*
Key Design Features
• All lighting loads
• Crush/tamper resistant lens
• Smart ambient light detection
• Adaptive switching algorithm for extended relay life
• XCT Technology for fine motion detection
• Lutron patented Softswitch
Environment
• Ambient operating temperature: 32 °F to 104 °F
(0 °C to 40 °C), 0%–90% humidity, non-condensing.
Indoor use only.
Warranty
• 5-Year Limited Warranty. For additional Warranty
information, please visit
www.lutron.com/TechnicalDocumentLibrary/Sensor_
Warranty.pdf
Additional Information
• When using MS-OPS2, MS-OPS5M,
MS-OPS6M2-DV, MS-VPS2, MS-VPS5M, or
MS-VPS6M2-DV on GFI-controlled circuits, please
see Lutron P/N 048440 on www.lutron.com
• For Maestro Occupancy sensing dimmer models,
please see Lutron P/N 369270 on www.lutron.com
• For use with MA-AS, MSC-AS, MA-AS-277, or
MSC-AS-277 to control the load from more than two
locations, please see Lutron P/N 048435 on
www.lutron.com
• For more information, please see
www.lutron.com/occvacsensors
• Lutron Customer Assistance: 1.844.LUTRON1

Advanced Features
Switching
• Standard zero cross—maximizes relay life by
switching at the point of minimum energy on the AC
power curve
• Adaptive zero cross—maximizes relay life by
switching at the point of minimum energy on the
AC power curve. Actively adapts to variations in
relay timing
• Lutron Patented Softswitch circuit—eliminates arcing
at mechanical contacts when loads are switched.
Extends relay life to an average of 1,000,000 cycles
(on/off) for resistive, capacitive, or inductive sources
XCT Technology
Advanced sensing technology for fine motion
detection ensures that the lights stay on while the
room is occupied, and that the sensor does not turn
on falsely when there is no occupancy in the room.
For more information, see
www.lutron.com/TechnicalDocumentLibrary/
white%20paper%20XCT%204-23-09%20B.pdf
