HB690/35 170mm Series Sliding Door Privacy Lock - 55mm Backset
HB690/35 170mm Series Sliding Door Privacy Lock - 55mm Backset
HB690/35 170mm Series Sliding Door Privacy Lock - 55mm Backset
HB690/35 170mm Series Sliding Door Privacy Lock - 55mm Backset

    HB690/35 170mm Series Sliding Door Privacy Lock - 55mm Backset

    Halliday + Baillie Pocket Sliding Privacy Lock Series using the shallower HB660/35 flush pulls for thinner doors.

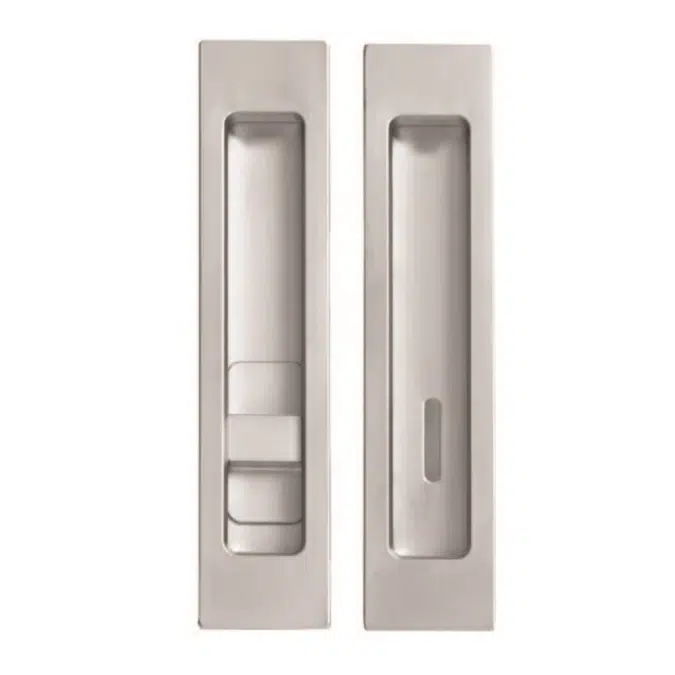

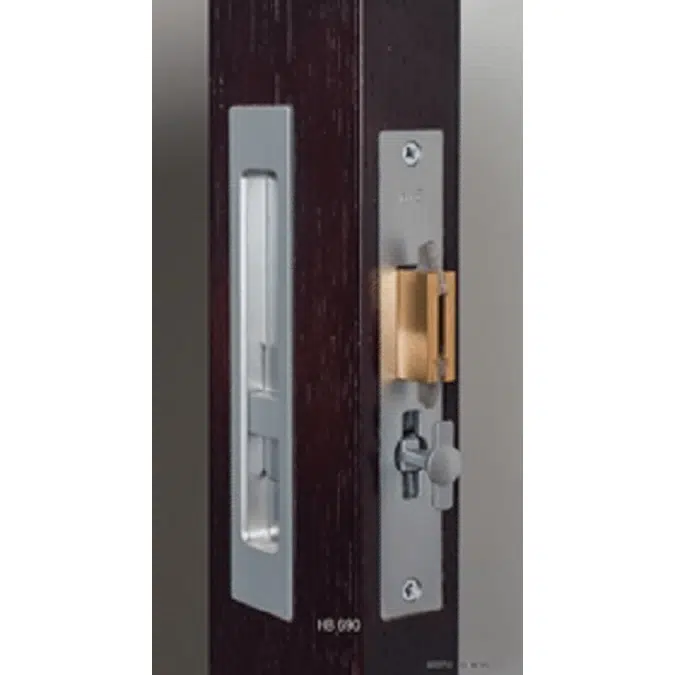

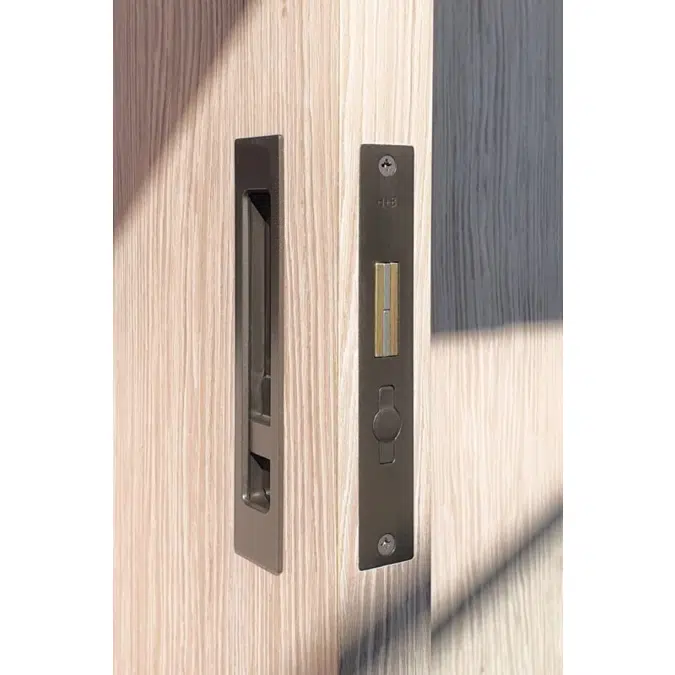

    The HB690 170mm length privacy sliding door lock includes a snib flush pull inside and emergency release flush pull outside for safe, efficient, locking on bathroom and washroom pocket sliders. The HB690 comes with a small recessed end pull for easy use to pull the slider from the pocket. Minimum door thickness required is 35mm. For doors 38mm thickness or over, please order the HB690.

    Please note that the “HB690 Series” denotes the type of lock body used with various flush pull configurations. The “HB630” set has a key and snib both sides, and is one possible configuration in the series.

    Material: Diecast zinc with brass and 316 stainless steel

    Backset : 55mm

    Minimum door thickness : 38mm (for 35-37mm doors please use the HB690/35 set)

    Flush pulls : 170mm x 36mm x 14mm

    Internal Depth: 11mm

    Suitable for timber or aluminum doors.

    Specifikation
    • For finish options please see our current Finishes Sheet. Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.

      Flush pulls are designed to be mounted with the body within the thickness of the door, and the face plate on the door surface – total projection is 2mm. Fully recessed mounting is possible on timber doors with the appropriate door thickness. Using glue, epoxy or silicone products etc to secure flush pulls to the door is not required or recommended for installation, and may void warrantee. Glue, epoxy, or silicone products can be used to secure the spindle bar to the back of the snib flush pull for example where sets have a flush pull to one side only.

      Configurations:
      HB 690 – Privacy Set with Snib Inside and Emergency Release Pull Outside
      HB 692 – Snib In, Blank Out
      HB 693 – Snib In, No Pull Out
      HB 694 – Snib Pulls to Both Sides


      Available Finishes
      Brushed Nickel, Brushed Satin Chrome, Oil Rubbed Bronze, Electro Black Ace, Electro Dark Bronze, Electro Medium Bronze, Electro Flat White, Matt Black Chrome, Polished Brass, Polished Chrome, Polished Nickel, Satin Chrome, Appliance White
    Teknisk specifikation
    • Unik ref.hb690-35-series-sliding-door-privacy-lock-55mm-backset
    • ProduktfamilieSliding Door Hardware
    • ProduktgruppeLocks and Sliding Lock Sets
    • TypeObjekt (enkelt objekt)
    • Udgivelsesdato2023-04-26
    • Udgavenummer1
