HB1480D 310mm Offset Series Swing Door Sets - 55mm Backset

The HB1480 D Swing Door Set series has been developed primarily for use on large pivot doors where function and scale are required.

With the extra deep one side grip, the sets can also function for bi-fold, hinge, and other swing doors, and come as left or right handed, with various functions including a privacy option.

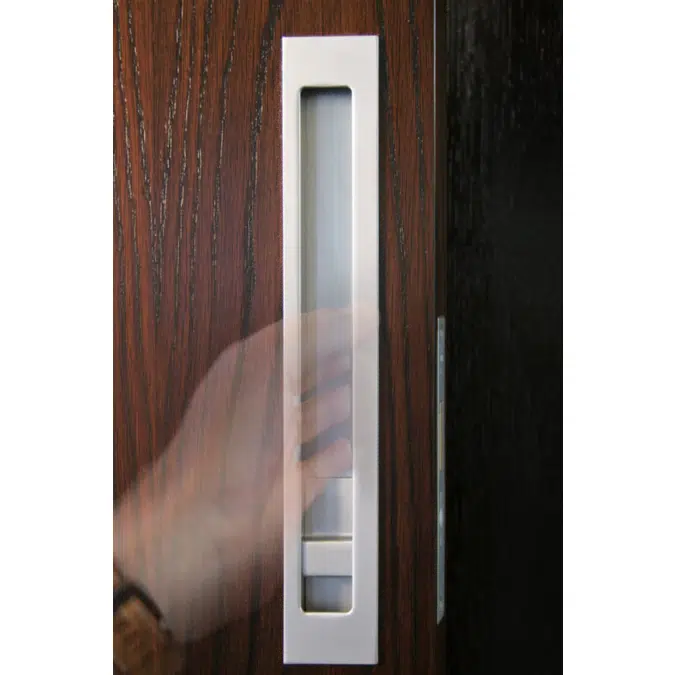

All sets include the Halliday + Baillie 310mm long Flush Pulls.

Material : Flush Pulls milled from solid brass, Lock Body Zinc diecast and brass

Backset : 55mm

Minimum door thickness : 45mm

Flush pulls : 310mm x 50mm x 15mm

Suitable for timber or large aluminium doors.

Specifikation

Available as a Privacy Set, and various snib only configurations.
For finish options please see our current Finishes Sheet. Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.
Flush pulls are designed to be mounted with the body within the thickness of the door, and the face surface mounted – total projection is 2mm. Fully recessed mounting is possible on timber doors with the appropriate door thickness. Using glue, epoxy or silicone products etc to secure flush pulls to the door is not required or recommended for installation, and may void warrantee. Glue, epoxy, or silicone products can be used to secure the spindle bat to the back of the snib flush pull for example where sets have a flush pull to one side only.
Configurations:
HB 1480 – Privacy Set
HB 1482 – Snib In, Blank Out
HB 1483 – Snib In, No Pull Out
HB 1484 – Snib Both Sides

Available Finishes
Brushed Nickel, Brushed Satin Chrome, Oil Rubbed Bronze, Electro Black Ace, Electro Dark Bronze, Electro Medium Bronze, Electro Flat White, Matt Black Chrome, Polished Brass, Polished Chrome, Polished Nickel, Satin Chrome, Appliance White

Teknisk specifikation

Unik ref.hb1480-d-310mm-series-swing-door-sets-55mm-backset
ProduktfamilieSliding Door Hardware
ProduktgruppeLocks and Sliding Lock Sets
TypeObjekt (enkelt objekt)
Udgivelsesdato2023-04-26
Udgavenummer1
