SureClose ReadyFit 108

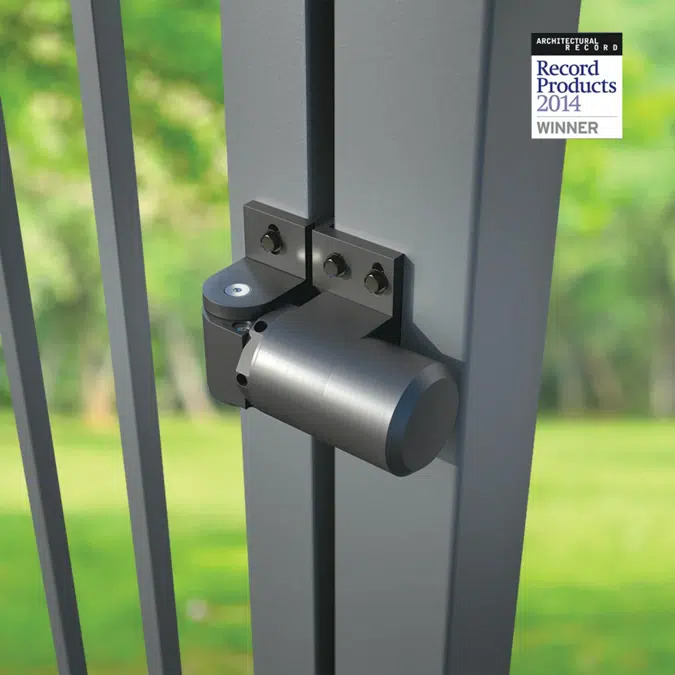

Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges. Each ‘ReadyFit’ model lives up to its name by providing convenient screw slots and holes for sturdy fixing. 25mmx12g self-drilling Tek screws are supplied. The slots allow fine vertical adjustment for speedy gate alignment. Horizontal adjustment is attained by way of a built-in, adjustable locking ring that rotates in or out as required to ensure the gate is level and overall alignment is achieved. It’s remarkably simple for a commercial-style gate closer product. All SureClose® Hinges and Closers are made of high-grade Aluminum. Optional, L-shaped steel mounting brackets can either be welded or fastened to appropriate gate frames and posts.

Specifikation

Externally Mounted, Hydraulic Self-Closing Hinge-Closer
• Controlled quiet close
• Gap variance of Min. ½” to Max. 1⅜” (12-35mm)
• Multiple mounting options, includes fasteners
• Safety gate models available
• Final Snap Close Action - All 108 models
• Alignment legs give double face-fixing strength
• Emergency Override feature for safety and longevity
• Minimum fence post size 2" (50mm)
• 5 Year Warranty*

Brand	SureClose^®
Product Code	74108313T, 74108315T, 74001313T, 74001315T
Gate Application	Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate
Gate Type	Self-Closing, Non Self-Closing
Gate Material	Aluminum, Steel/Ornamental Iron
Self-Closing Gate Weight	Up to 260lb (120kg)
Approx Gate Size	4ft W x 6ft H (1.2m x 1.8m)
Gate Frame/Post Shape	Square-to-Square
Min Post Size	2"+ (50mm)
Ideal Gate Gap	½”–1⅜” (12-35mm)
Fixing Method	Screw-On, Weld-On
Color/Finish	Black Anodised

Teknisk specifikation

Unik ref.SureClose-ReadyFit-108
ProduktfamilieGate Hinges
ProduktgruppeHinges
TypeObjekt (enkelt objekt)
Udgivelsesdato2023-06-14
Udgavenummer1

Links

Produkt-URLhttps://us.ddtech.com/products/sureclose-readyfit-hinge-closer?_pos=1&_sid=d98da68fe&_ss=r&variant=27661785432128

Klassifikation

BIMobject-kategoriLandskabsplanlægning - Porte
