Serie 140 - Ventana fija con 3 intermedios verticales

Serie 140 - Ventana fija con 3 intermedios verticales

Serie 140 - Ventana fija con 3 intermedios verticales

Serie 140 - Ventana fija con 3 intermedios verticales

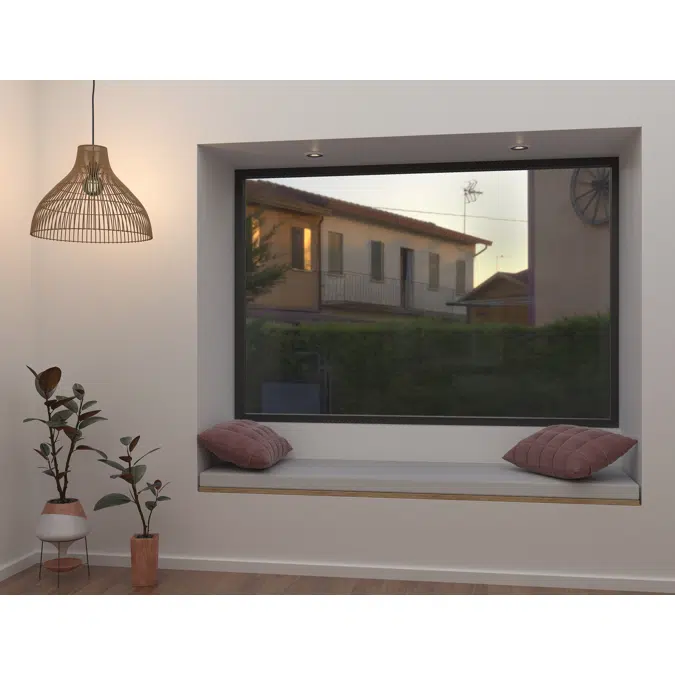

Eurovent classic - series 140, fixed window 4 sash vertical profile. finishes White Coating 100, Anodized Dark Bronze 084, and Clear Anodic Finish 011. Glazing (9mm and 24mm).

Specifikation

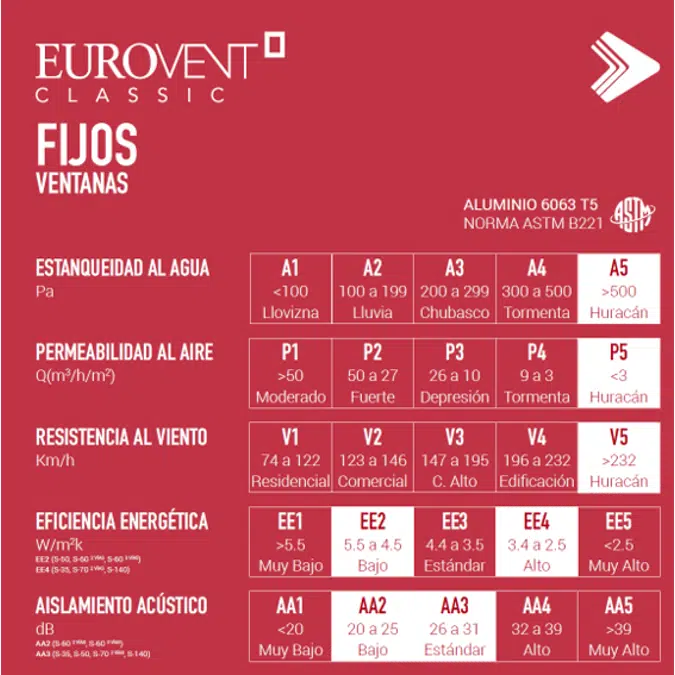

Assembly styles: 90° Assembly Glazings: 6, and 18mm Water resistance A5 (500 Storm) Air infiltration P5 (< 3 Storm) Static air pressure V5 (>232 Building) Thermal transmittance EE4 (3.4 to 2.5 High) Acoustic performance AA3 26 to 31 Standard)

Teknisk specifikation

Unik ref.cuprum_ventana_fija_serie_140_con_3_intermedios_verticales
TypeObjekt (enkelt objekt)
Udgivelsesdato2023-05-22
Udgavenummer1
Højde (mm)2000
Bredde (mm)2000

Links

Produkt-URLhttps://cuprum.com/construccion/producto/fijos-classic
Monteringsvejledninghttps://cuprum.com/wp/wp-content/uploads/2023/05/ec_fijo35_50_60_70_140_2023-1.pdf
Teknisk beskrivelsehttps://cuprum.com/wp/wp-content/uploads/2022/02/FT-Fijos-Classic-1.pdf

Relateret

Materiale primærtAluminium
Materiale sekundærtGlas
Designet iMexico
Fremstillet iMexico

Klassifikation

BIMobject-kategoriVinduer - Faste rammer
IFC-klassifikationVindue

Tilgængelighed i region

Nordamerika
Mexico
