Serie 70 - Ventana corrediza XO

Serie 70 - Ventana corrediza XO

Serie 70 - Ventana corrediza XO

Serie 70 - Ventana corrediza XO

Serie 70 - Ventana corrediza XO

Serie 70 - Ventana corrediza XO

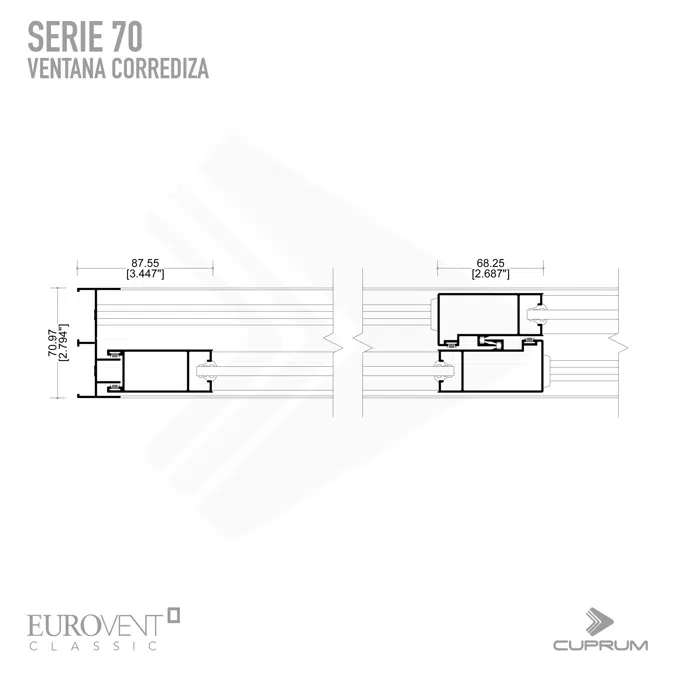

71mm frame depth inline sliding system 68mm center knot It allows maximizing the glazing capacity up to 18 mm, increasing thermal and acoustic performance. Recessed reinforcement system with straight aesthetics Its leaves weighing up to 180 kg allow maximum dimensions of 900 mm wide x 2400 mm high. mosquito net option

Specifikation

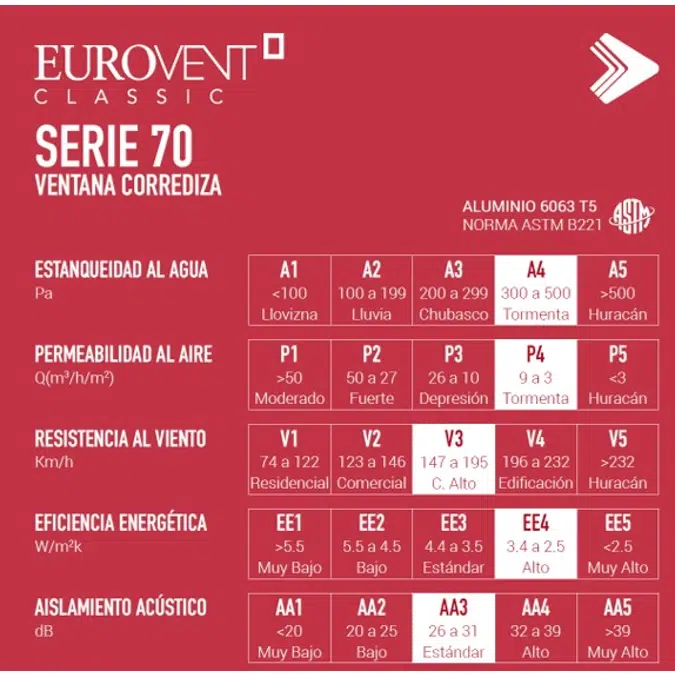

Assembly styles: 90° Assembly Glazings: 6, and 18mm Water resistance A4 (300 to 500 Storm) Air infiltration P4 (9 to 3 Storm) Static air pressure V3 (147 to 195) Thermal transmittance EE4 (3.4 to 2.5 High) Acoustic performance AA3 26 to 31 Standard)

Teknisk specifikation

Unik ref.cuprum_ventana_corrediza_serie_70
TypeObjekt (enkelt objekt)
Udgivelsesdato2023-06-09
Udgavenummer1
Højde (mm)1800
Bredde (mm)900

Links

Produkt-URLhttps://cuprum.com/construccion/producto/serie-70-classic-ventana-corrediza
Monteringsvejledninghttps://cuprum.com/wp/wp-content/uploads/2020/10/ec_corredizaserie70-2023-1.pdf
Instruktionsvideohttps://www.youtube.com/watch?v=2U4babgbY8A
Teknisk beskrivelsehttps://cuprum.com/wp/wp-content/uploads/2020/10/FT-Serie-70-Ventana-Corrediza-Classic.pdf

Relateret

Materiale primærtAluminium
Materiale sekundærtGlas
Designet iMexico
Fremstillet iMexico

Klassifikation

BIMobject-kategoriVinduer - Åbningsskyder
IFC-klassifikationVindue

Tilgængelighed i region

Nordamerika
Mexico
