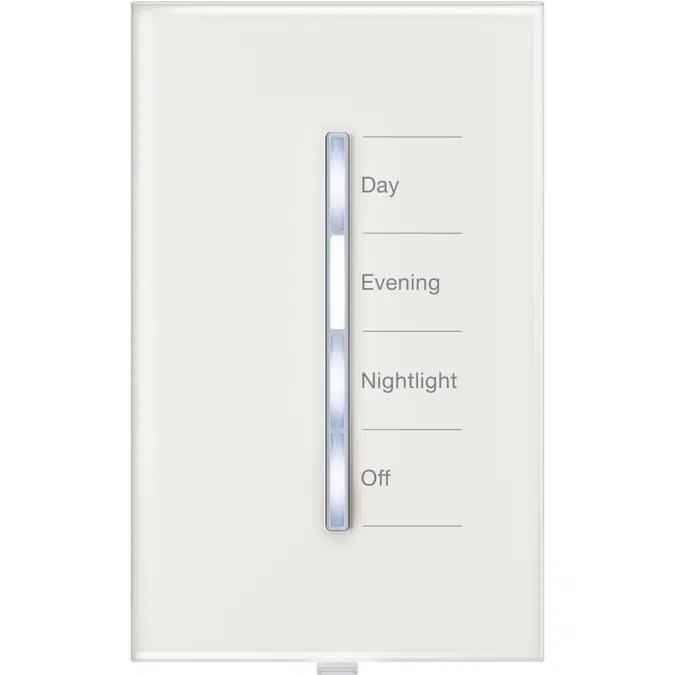

HomeWorks QS architectural RF GRAFIK T local
controls function much like standard dimmers or
switches, but can be operated as part of a lighting
control system. GRAFIK T controls are useful in
locations where single circuits of lighting need to be
dimmed or switched.
Features
• Controls include dimmers, switches, and
companion devices.
• Simple touch control.
• Distinctive architectural aesthetic.
• Softly lit white LEDs indicate light level and coordinate
with any décor.
• Advanced microprocessor dimming technology for
control of dimmable LED lamps. 1
• Low-end and high-end trim are available for improved
LED dimming performance (dimmer only).
• Optional neutral connection available for superior LED
dimming performance (C•L dimmer only). 2
• Phase selectable technology allows forward or reverse
phase dimming for compatibility with more load types.
• Installs in single-pole or multi-location applications.
Companion devices are available for multi-location
control with dimmers and switches (maximum
4 companion devices per dimmer or switch, 1 main
control per circuit).
• Use Lutron GRAFIK T wallplates (sold separately). See
the Colors and Finishes on page 3 for details.
• Lutron GRAFIK T wallplates snap on with no visible
means of attachment.
